EVID Ceiling Speaker Systems Installation and Wiring | en 17
Electro-Voice
Installation manual
2023-07 | 12 | F.01U.177.705
Note the support ring on the back of the speaker. The ring allows for connection to a
independent and secure anchor point. Construction codes often require the use of this
secondary support point.
!
Caution!
Ceiling mount speaker’s safety cable
The safety cable should be installed with 1-3 inches (25.4-76.2 mm) of slack.

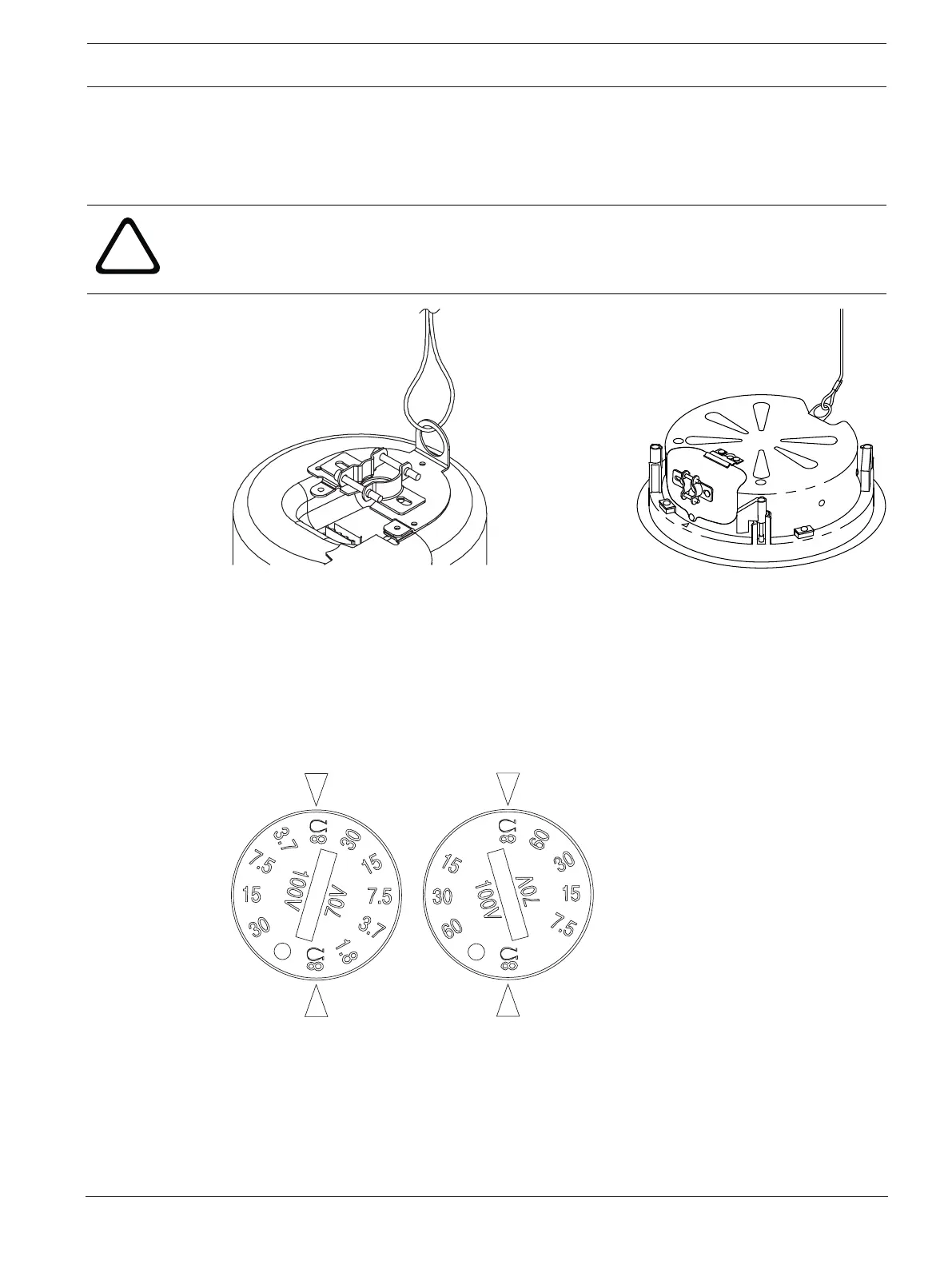

Figure4.15: Attach auxillary support line except the C4.2LP (left); Attach auxillary support line for the
C4.2LP (right)
4.7 Step 7 — Adjust Tap Selector
The tap selector switch is located on the front baffle. Adjust the speaker to the appropriate
tap setting before installing the grille. In some 70V/100V constant voltage installations it is
advisable to leave the grilles off if final speaker audio level balance adjustments are to be
made later. After the levels are adjusted the grilles can then be installed.
Figure4.16: Adjust tap selector (left: C4.2/C4.2LP/C6.2/C8.2/C8.2LP; right: C10.1/C8.2HC )
EVID C4.2, C4.2LP, C6.2, C8.2, and C8.2LP
In addition to the 8-ohm setting, the power taps are 30 W, 15 W, 7.5 W, and 3.7 W at both
70.7V and 100V, with a 1.8 W tap for 70.7V only.
