16 en | Installation and Wiring EVID Ceiling Speaker Systems
2023-07 | 12 | F.01U.177.705
Installation manual
Electro-Voice

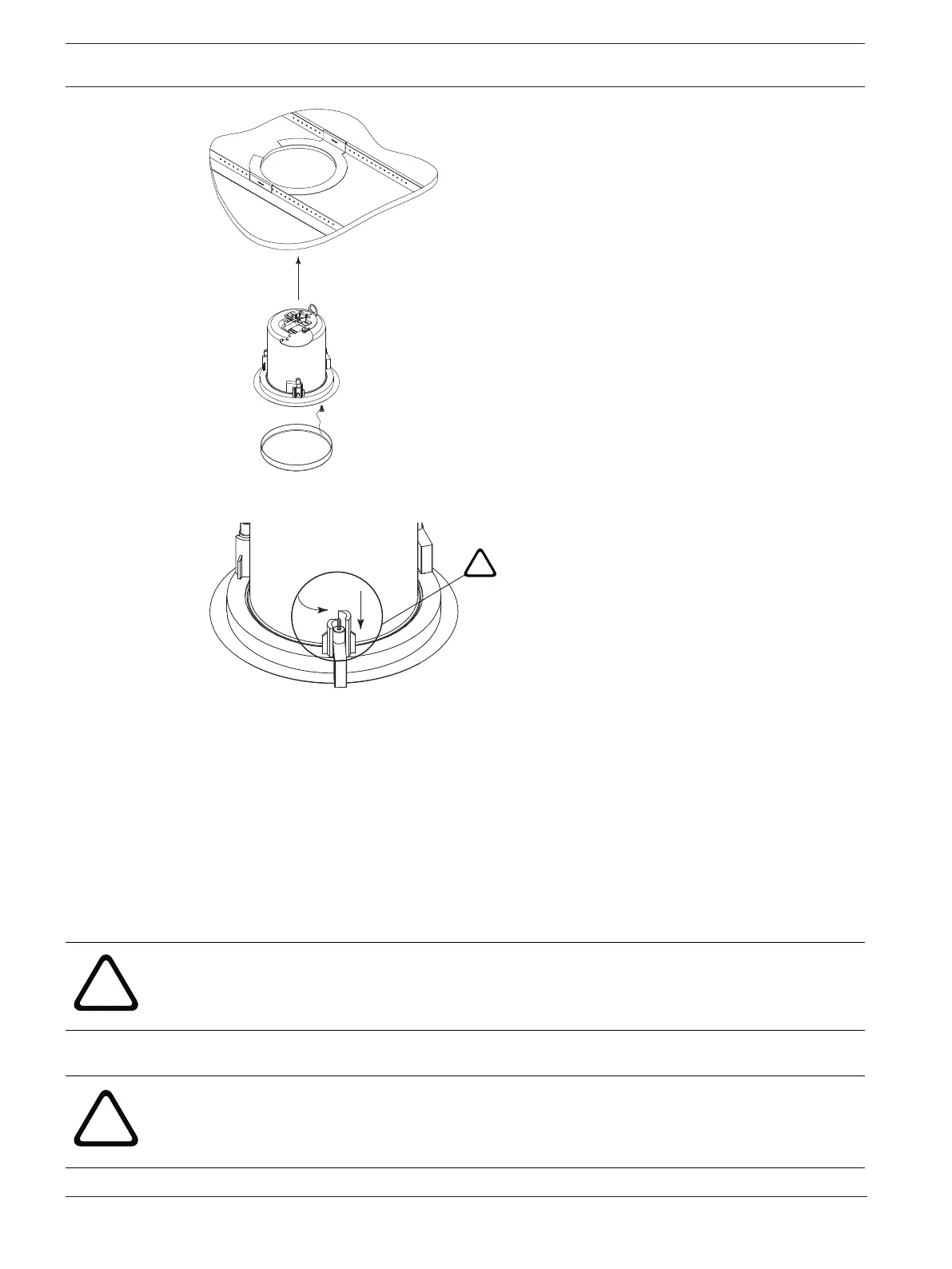

Figure4.13: Mount speaker into ceiling
!
<=12 in. lbs.
(1.35 Nm)
Figure4.14: Tighten mounting tabs
INSTALLATION NOTE: MOUNTING TABS
For each attachment screw, first turn one half-turn counterclockwise to release the mounting
tab from its guide.
4.6 Step 6 — Connect an Auxiliary Support Line
As an added safety measure, it is strongly recommended to utilize a properly rated secondary
safety cable (provided by the installer) to securely fasten the speaker from the safety point on
its back to a secondary mounting structure on the building.
!
Caution!
The safety point (auxiliary support ring) is not intended for primary suspension of the
loudspeaker. The safety point should only be used as a secondary safety point.
!
Caution!
Surface mount speaker’s safety cable
The safety cable should be installed with as little slack as possible. Less than 1in (25.4mm)
is preferable.
