20 | ELCO GmbH
Assembly
Operation manual 50.0 | Status 10.2021
5.3.5 Connecting the generation unit
(50.0 Standard, 50.0 High temperature)
When connecting the system to the heating system it is
necessary to follow the appropriate hydraulic diagram.
D
“12.2 Hydraulic diagrams” (page 38).
Always match the connections to the identifiers on the
generation unit.
Pay attention the to connection sizes and type when
connecting the lines.
Generation unit connection sizes
Connection Connection size and
type
Buffer water return line 2” male thread
Buffer water supply line 2” male thread
Condensate 3/4” male thread
Flue gas – in front of
silencer
DN 80
Flue gas – after silencer DN 100
Exhaust air DN 200
Gas 1” female thread
D ATTENTION!
Risk of damage caused by improper connection of
lines!
Fixed supply lines will transfer vibrations to the
building. Vibrations may damage the supply lines.
A Only use flexible lines for all the lines connected to
the generation unit.
A Pay close attention when matching the lines and
connections.

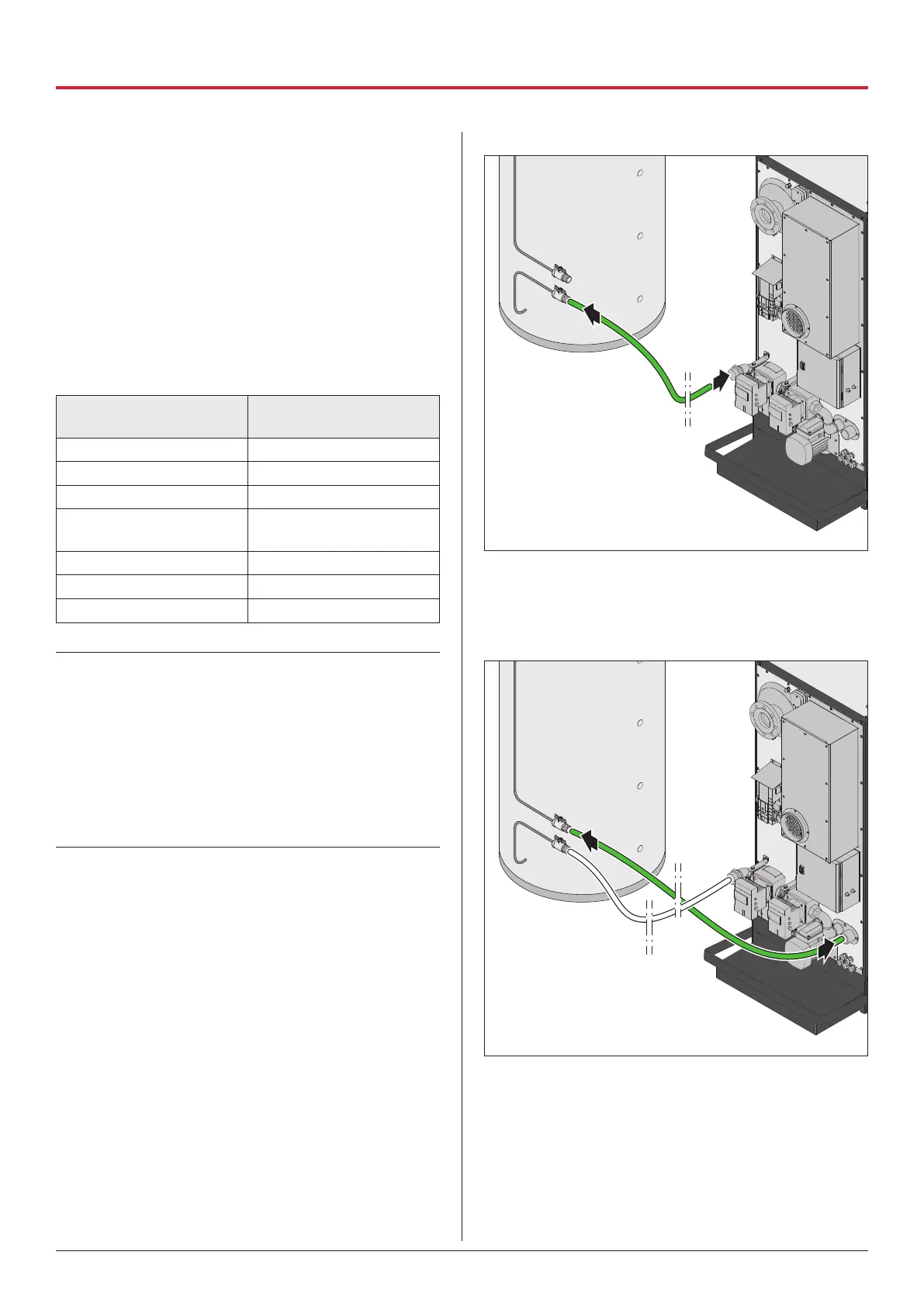

Buffer water return line
A Connect the line to the return line of the buffer tank.
A Connect the line to the “Buffer water return line”
connection on the generation unit.
Buffer water supply line
A Connect the line to the supply line of the buffer tank.
A Connect the line to the “Buffer water supply line”
connection on the generation unit.
