Assembly
Operation manual 50.0 | Status 10.2021

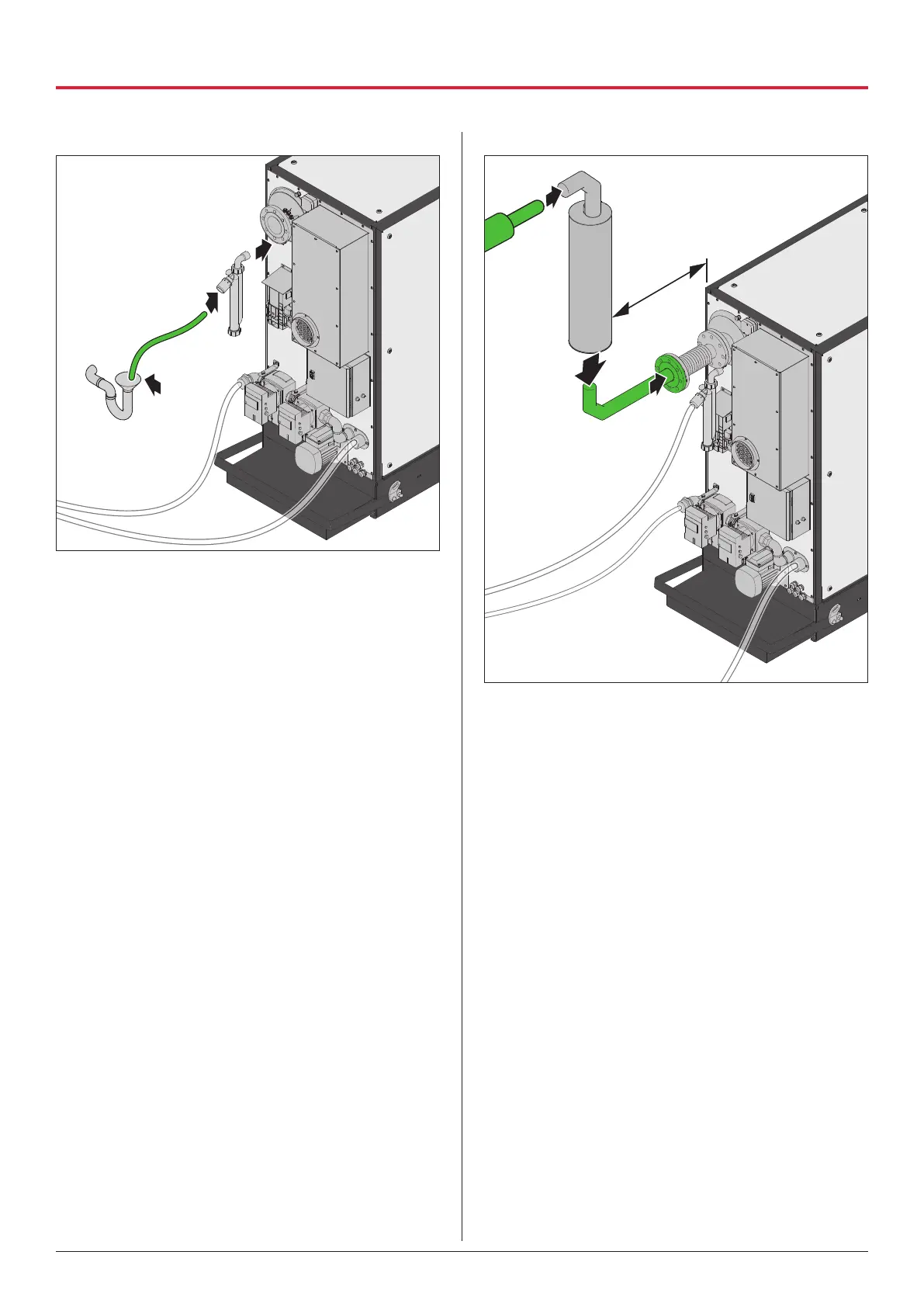

Condensate
The line for the condensate water must be corrosion
resistant.
The line must have a sufficient gradient between the
generation unit and the drain.
A Connect the siphon to the “Condensate” connection
on the generation unit.
A Connect the line to the siphon.
A Connect the line to the condensate drain.
Flue gas
384
The line must be laid with a sufficient gradient to the
generation unit.
A Make sure that a suitable flue gas silencer
(optionally available) is present:
B In the flue gas routing.
B In close proximity to the generation unit.
B With horizontal installation with correct discharge
of the condensate water.
A Connect the axial expansion joint (optionally
available) to the “flue gas” connection of the
generation unit. Alternatively, a hose compensator
(optionally available) can also be used.
A Connect the line to the axial compensator.
A Connect the line to the flue gas silencer on both
sides.
A Fasten the line.
A Ensure that the line is not interrupted (e.g. that it
does not slip out of vertically installed parts).
A Ensure that the connection piece (optionally
available) cannot vibrate out of place.
Flue gas silencer instructions.
