ELCO GmbH | 19
Assembly
Operation manual 50.0 | Status 10.2021

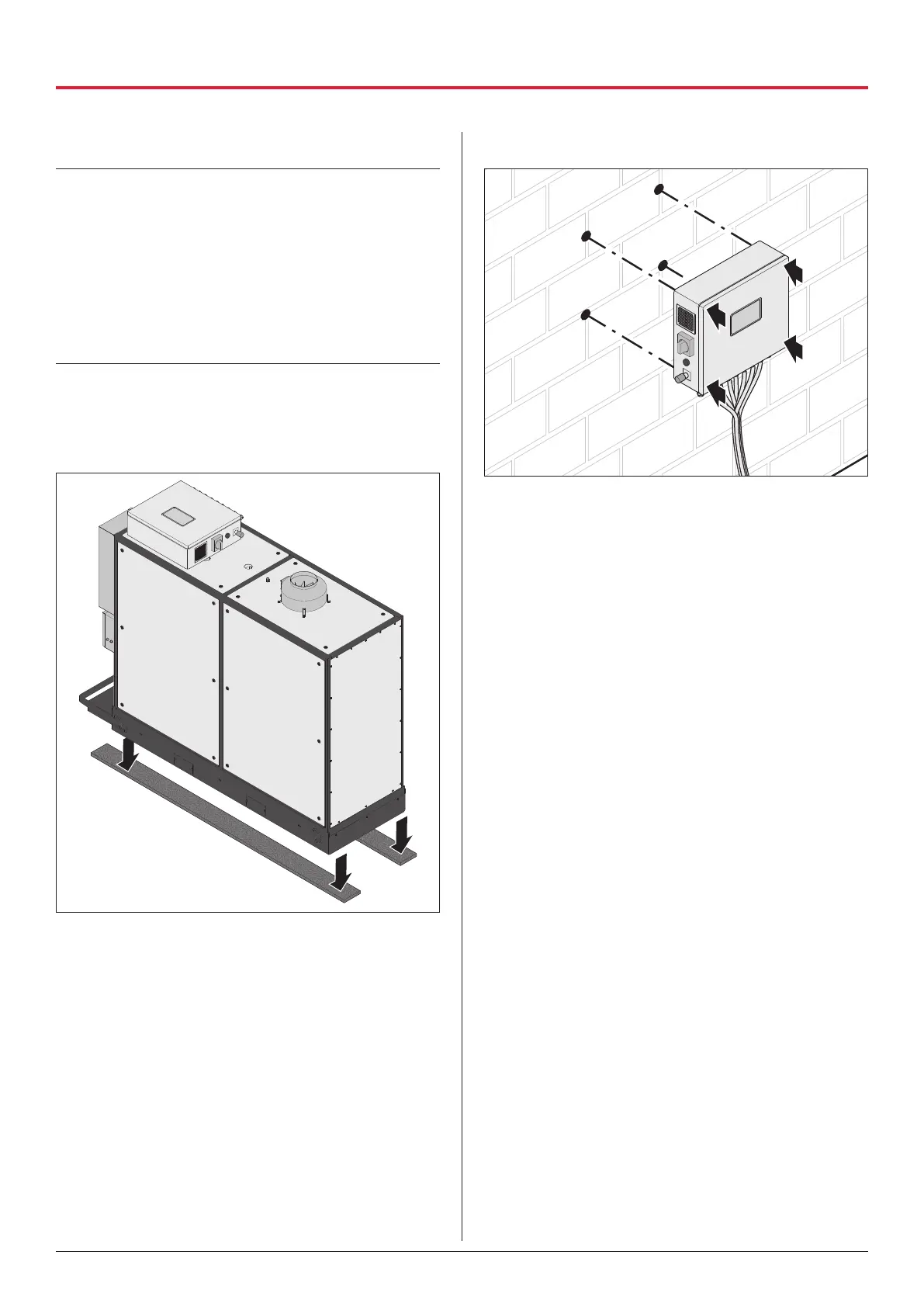

5.3.3 Positioning the generation unit
D ATTENTION!
Risk of damage to the generation unit caused by
improper transportation!
In narrow transportation routes, it may be necessary
to disassemble parts of the generation unit in order
to move the device into the installation location.
Disassembly for transport may only be carried out by
the manufacturer.
A Contact the manufacturer.
A Select a suitable installation location.
D
“5.2 Installation location requirements”
(page 13).
A Position the compensation strips.
A Place the generation unit on the compensation
strips.
A Ensure that the generation unit stands level.
5.3.4 Screwing the control cabinet in position
A Open the control cabinet.
A Mark the drill hole positions on the wall.
A Drill the holes for the screws.
A Screw the control cabinet onto the wall.
A Observe the minimum distances.
D
“5.2.2 Installation room” (page 14).
