ELCO GmbH | 15
Assembly
Operation manual 50.0 | Status 10.2021

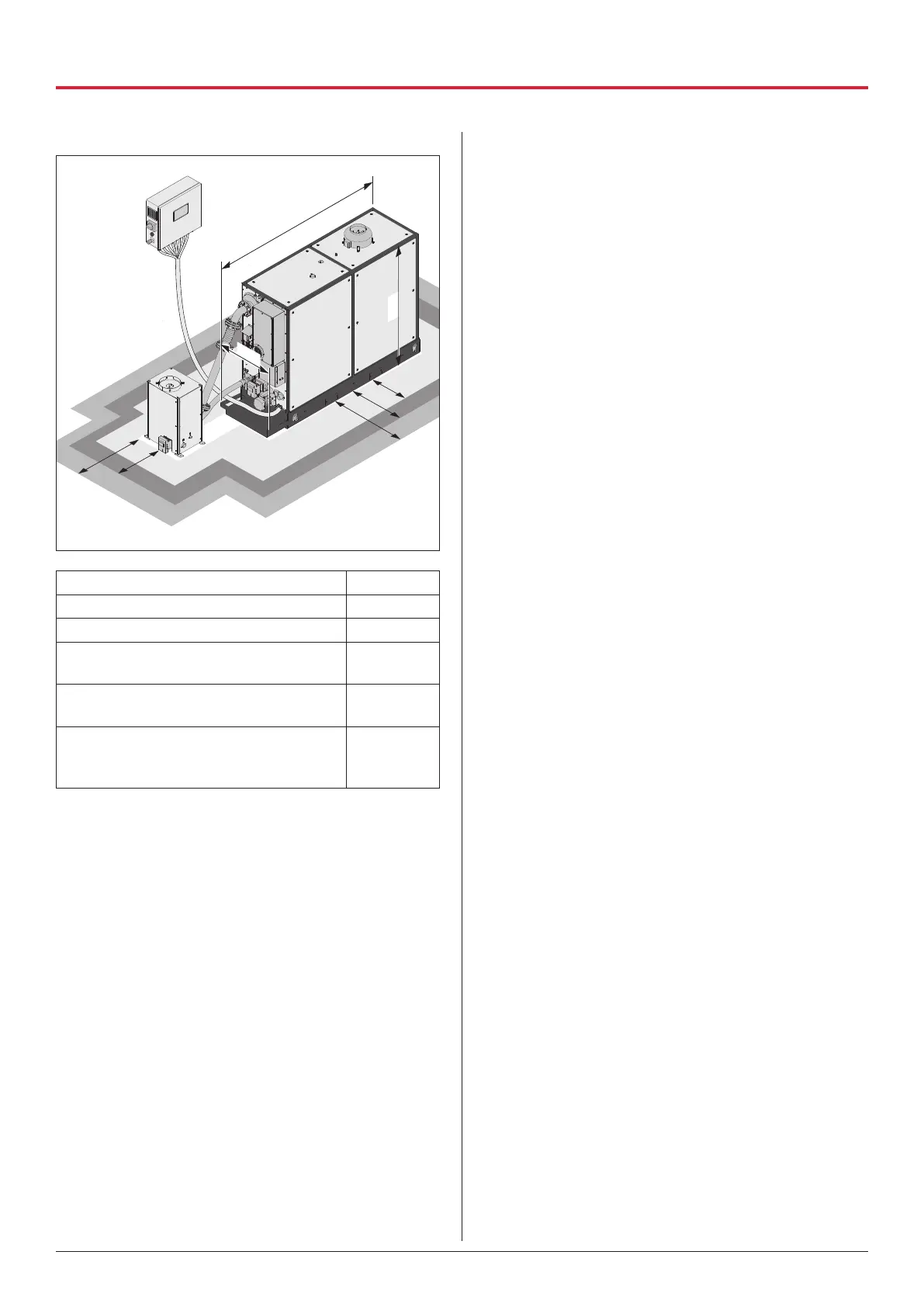

Space requirement (50.0 Calorific value)
a
b
c
L
H
B
d
e
L Length (including hoop guard) 2,551 mm
B Width (including hoop guard) 800 mm
H Height 1,959 mm
a Distance from the generation unit –
optimum free space
1,000 mm
b Distance from the generation unit –
minimum free space required
700 mm
c Distance from the generation unit –
free space after clarification and
approval by the manufacturer
500 mm
All systems – minimum distance for maintenance work:
B 600 mm free space above the system.
B 300 mm free space next to the control cabinet.
If the minimum distances are not maintained:
A Contact the manufacturer.
5.2.3 Heating system
The structural elements of the building’s heating
system primarily comprise the peak load boiler, the
buffer tank, and the pipework system and radiators.
The peak load boiler supplies the required residual
heat if the heating energy requirement exceeds the
capacity of the system (e.g. in extremely cold weather).
For the system to operate, a buffer tank is required,
which must comply with the following requirements:
B The buffer tank must have holding fixtures for the
temperature sensors.
B The buffer tank must have shut-off devices fitted on
the connections to the system.
B The buffer tank must be designed to meet the
system specifications:
minimum 50 litres per kW thermal for
installations > 10 kW
th
These specifications are technical minimum conditions.
Regional or national funding guidelines (e.g. in
accordance with BAFA in Germany) may differ and
must be checked.
The dimensioning of the pipework system must be
designed to meet the following requirements:
B Maximum heat requirement of the building.
B Maximum thermal capacity of the system.
