20
If you are cooling the drill bit with water a water collection ring is
recommended.
This will be mounted with a latch fastener on the screws of the base plate and
ensures a clean drilling. Mainly for overhead or lateral drilling. (see spezial-
accessories).
Demounting the Core Drill Unit
▪ Move the machine holder with the core drill upwards until it locks in the
final top position.
▪ Remove the drill bit.
▪ Loosen the locking of the mounting plate and remove the core drill ma-
chine from the drill rig
▪ Loosen the fastening nut (F)
▪ While doing so, hold the drill rig firmly!
▪ Remove the drill rig.
▪ Unscrew the quick action clamping screw (D)
Care and Maintenance
▪ Always keep the drill rig clean, especially the column with the toothing
and the 4 sliding balls in the machine holder. In order to allow the free
movement of the pinion shaft, it should be slightly lubricated.
▪ In order to achieve a good performance of the drill rig, the 4 sliding balls
in the machine holder have to move along the column without slackness.
Attention!
After every tenth drilling you should check if the sliding pieces have
got loose-fitting due to drilling vibration.

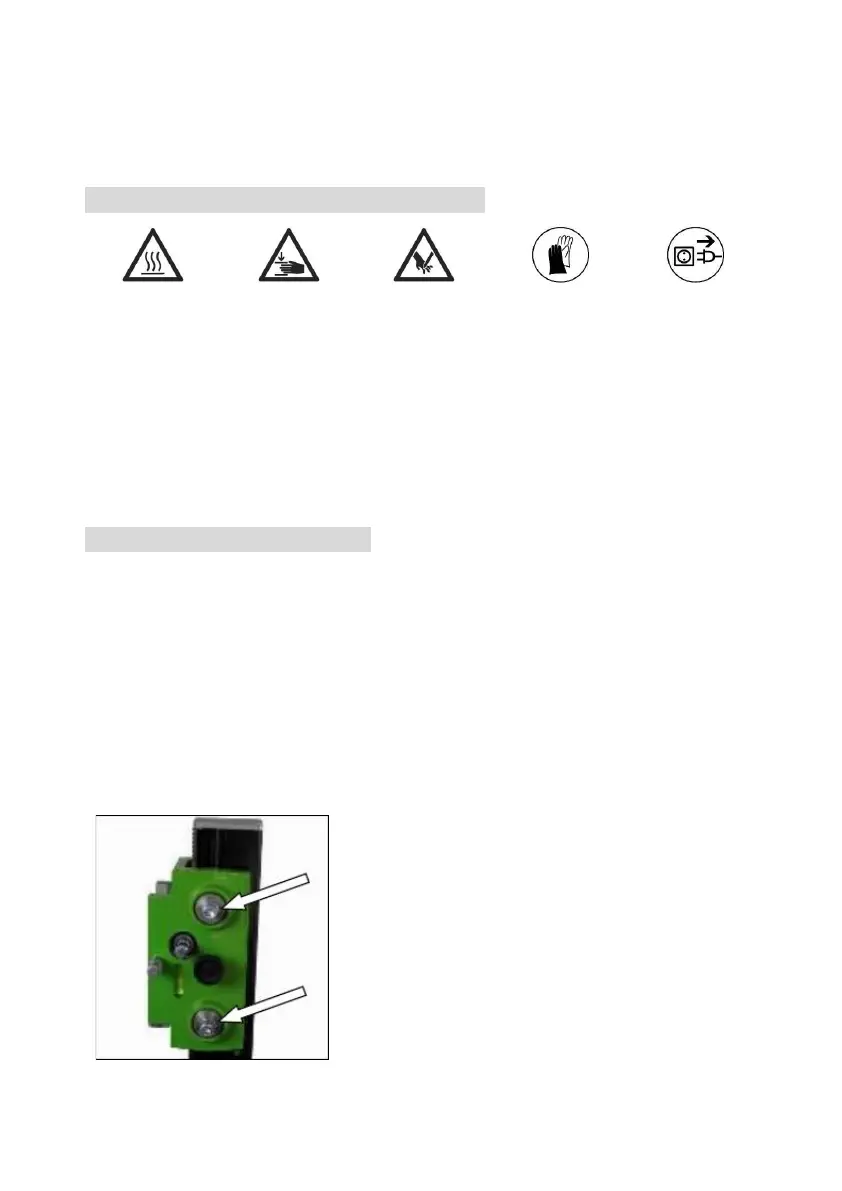

If the position should have changed, it can be readjusted as follows:
▪ Use a SW 17 open-end wrench to loosen
the lock nut on the hexagon socket screw.
▪ Use an 8 mm hexagon key to adjust the
hexagon socket screws and thus the po-
sition of the ball bearings relative to the
column.
▪ Tighten the lock nut again and check that
the machine holder moves smoothly on
the guide column of the diamond drill
stand.
