10.3 Configuring video wall mode using the Control Centre
To put together a video wall, the transmitters and receivers must be configured with the
same IP multicast (group ID).
The group ID of each device can be selected using software. Each group ID corresponds
to a multicast IP address, as shown below.
The "Vertical Monitor Count" and "Horizontal Monitor Count" should be changed
according to the size of the desired video wall structure.

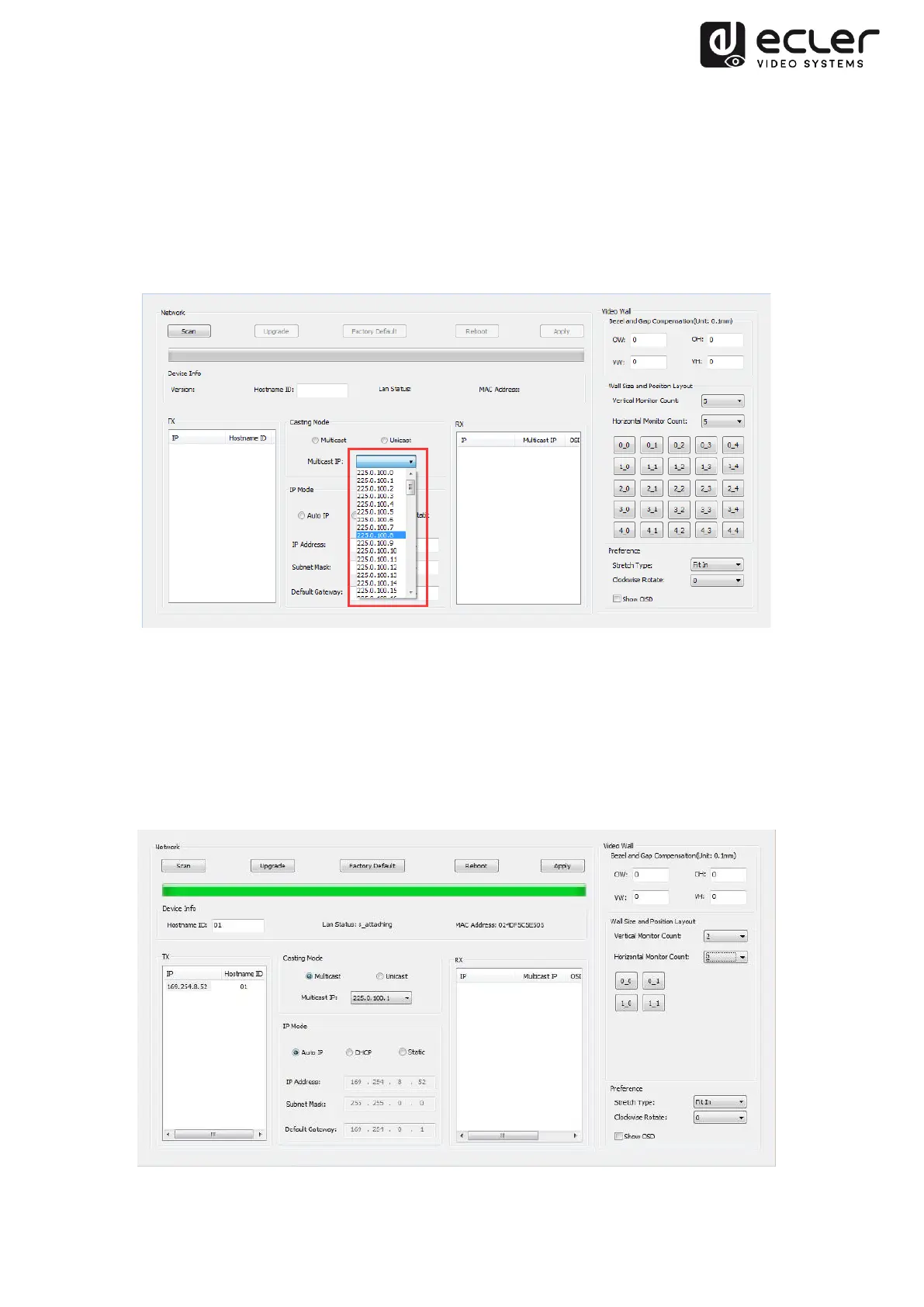

Example: If a 2x2 video composition is required, the first two fields, "Frame size and
position layout", will be set to "2", as shown in the figure below:
