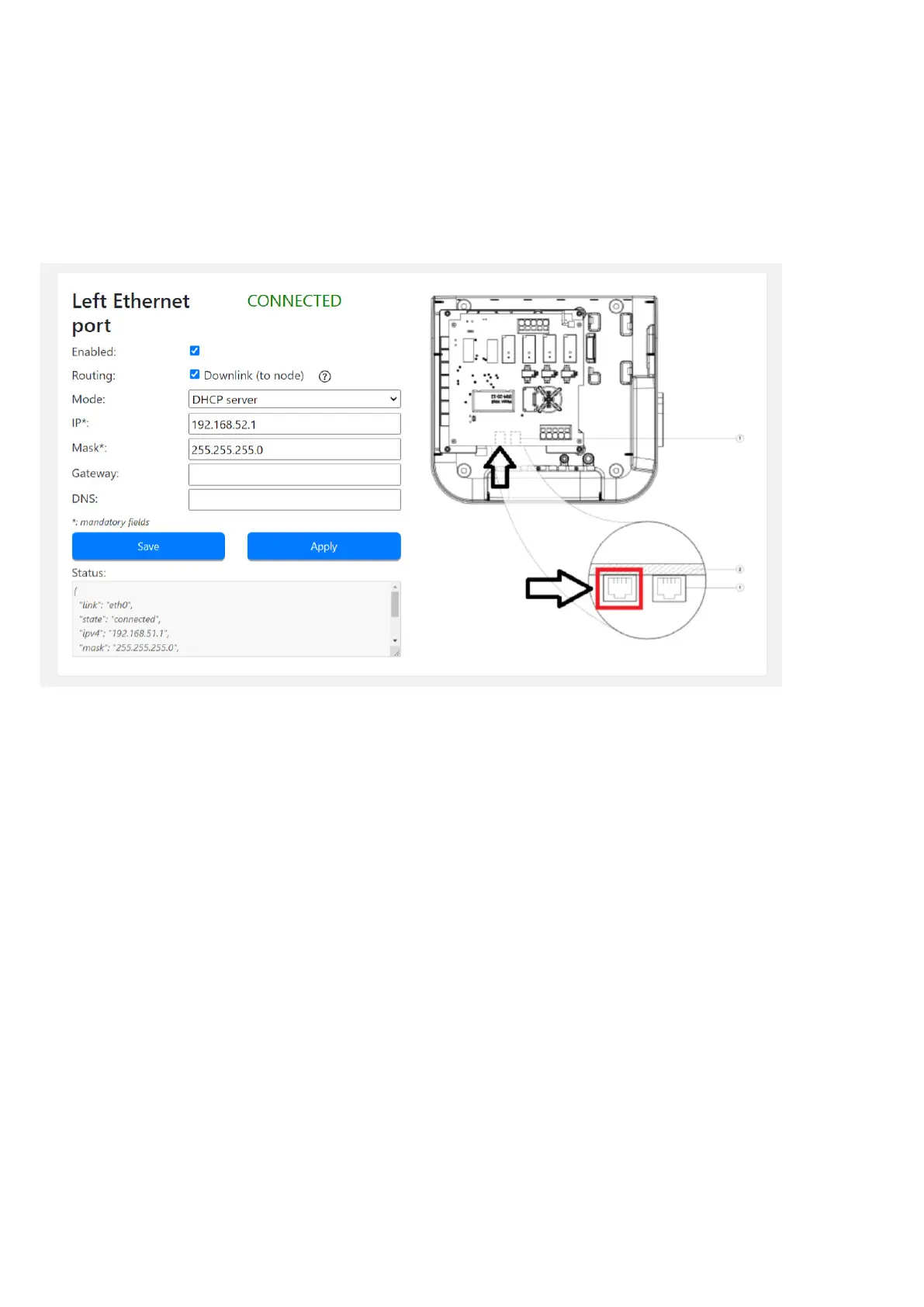

Figure 66. Ethernet (ETH0) connection settings for the Master EV Charger
Steps to configure Ethernet (ETH0) connection settings:
Step 1. Go to the “Left Ethernet port” section (Figure 66)
Step 2. Make sure the “Enabled” checkbox is checked.
Step 3. In the “Routing” field, select “Downlink (to node)”.
Step 4. Set “Mode” to “DHCP server”.
Step 5. Add details relevant to the LAN (IP address, Mask…)
Step 6. Click “Save” and “Apply.”
8.4.4.2 Network connection settings: Node
To connect the Nodes and Master in a daisy-chain network topology, refer to Section 8.4.3.2.
88
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
