8.4.5 Conguration 5: Master connected to the internet via 4G LTE, Nodes connected to Master
and each other in daisy-chain topology using RJ45 cable.
The maximum number of connected EV chargers in this configuration is 15. The installer is responsible to ensure sufficient
signal strength, coverage, and data availability of the 4G LTE network.
When creating a daisy-chain network using RJ45 cable, it is important to consider the locations of the Ethernet ports on the EV
charger:
•
ETH0 (left port) of the Master should be connected to the ETH1 (right port) of Node 1.
•
ETH0 (left port) of Node 1 should be connected to the ETH1 (right port) of Node 2.
•
ETH0 (left port) of Node (n-1) should be connected to the ETH1 (right port) of Node (n).

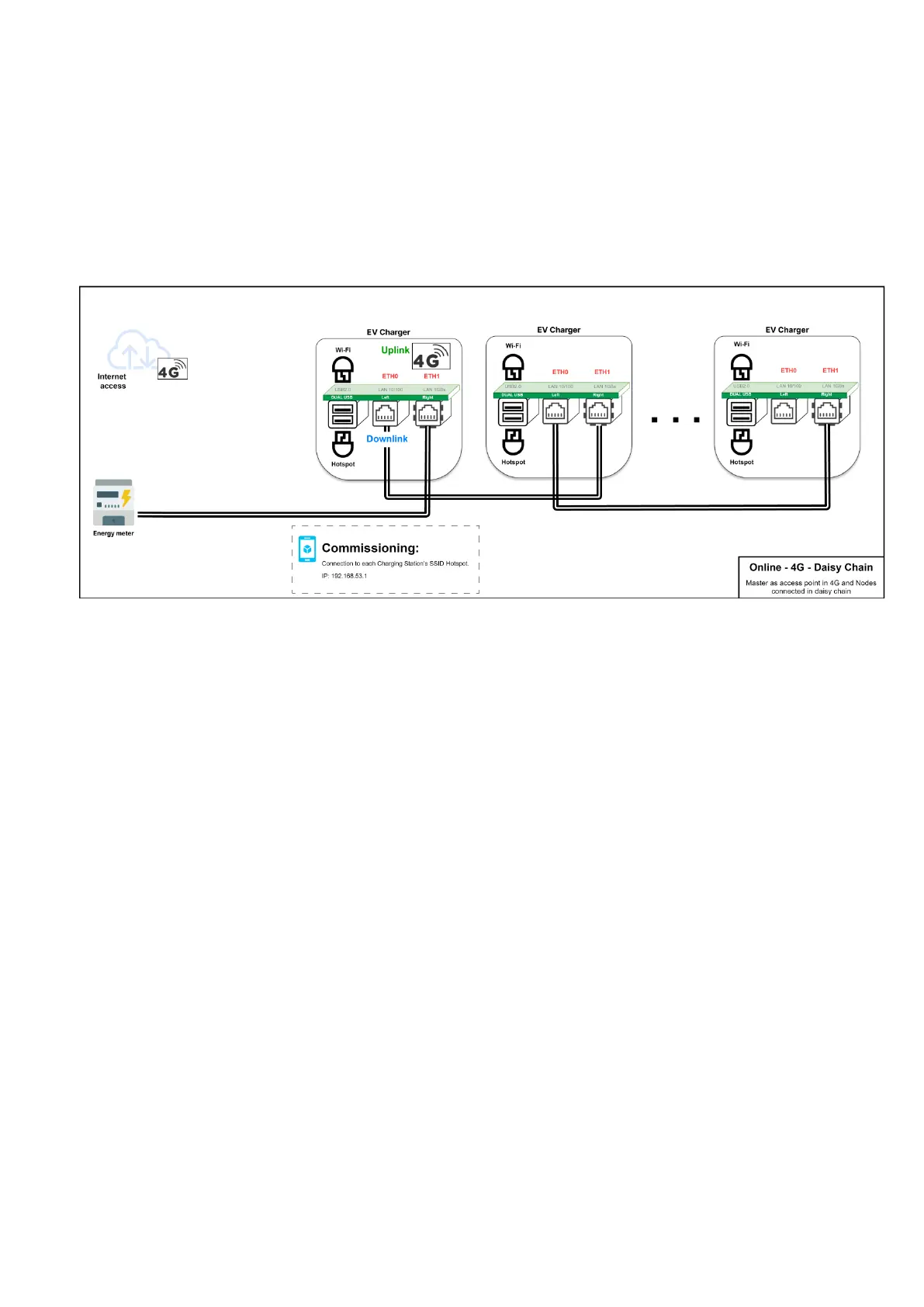

Figure 67. Network diagram: Master connected via 4G LTE, Nodes connected to Master and each other
8.4.5.1 Network connection settings: Master
Configuring the Master EV Charger includes setting up ETH0 and ETH1 port parameters. A qualified person
performing the installation should have a good understanding of IP network installation and commissioning.
To configure the Master EV charger, select the advanced configuration first (refer to Section 8.3.3.1 for details).
Steps to configure the energy meter connected via the Ethernet (ETH1) port:
Step 1. Go to the “Right Ethernet port” section (Figure 68).
Step 2. Make sure the “Enabled” checkbox is checked.
Step 3. In the “Routing” field, keep the box unticked.
Step 4. Set “Mode” to “Fixed address” or ‘DHCP server’.
Step 5. Enter connection parameters for the energy meter.
Step 6. Click “Save” and “Apply.”
89GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
