8.3.5.1.3 Load balancing oine mode
When the chargers are configured in offline mode by disabling OCPP connection, a pairing process is required to connect all
the Nodes to the Master. After saving the configuration of the Master and restarting the application, follow the next steps:
Step 1: Disable the OCPP connection on the OCPP Server tab by unchecking the "Enabled" checkbox. Save and apply.
Step 2: Configure all the Load balancing settings as done on chapter 8.3.5.1
Step 3: Click in the “Start node pairing” button that appears under the section “Nodes connection status”. See Figure 45.
Step 4: As soon as the Nodes are getting configured, the list under “Nodes connection status” will be populated with each of
them. Indicating their BoxId, Connector, current EVSE state and connection status.
Step 5: The section “Certificate management” will be populated with the certificates of each Node, indicating their expiration
date, validity, and status. To remove a Node that should not be part of the set up, delete the certificate by clicking the
“Delete” button for the certificate. This section is displayed in “Advanced mode”. See Figure 45.
Step 6: Click the “Pairing” button again to stop the pairing process once all the nodes are connected. The pairing
process has also an automatic timeout corresponding to the commissioning time of the Configuration page. This pairing /
commissioning time is incremented by 30 minutes each time a new node is connected.

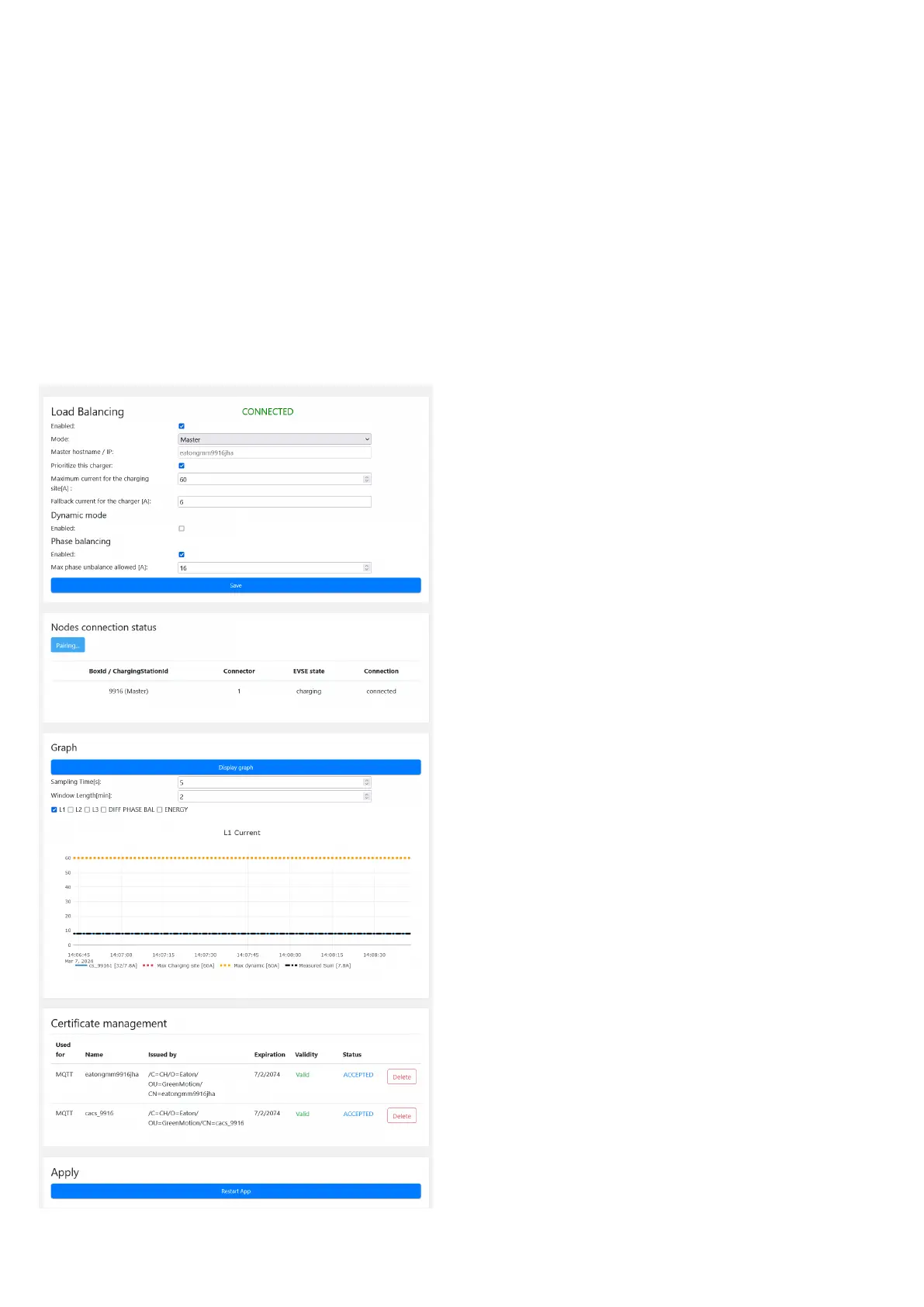

Figure 45. Node connection status and certificate management
68
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
