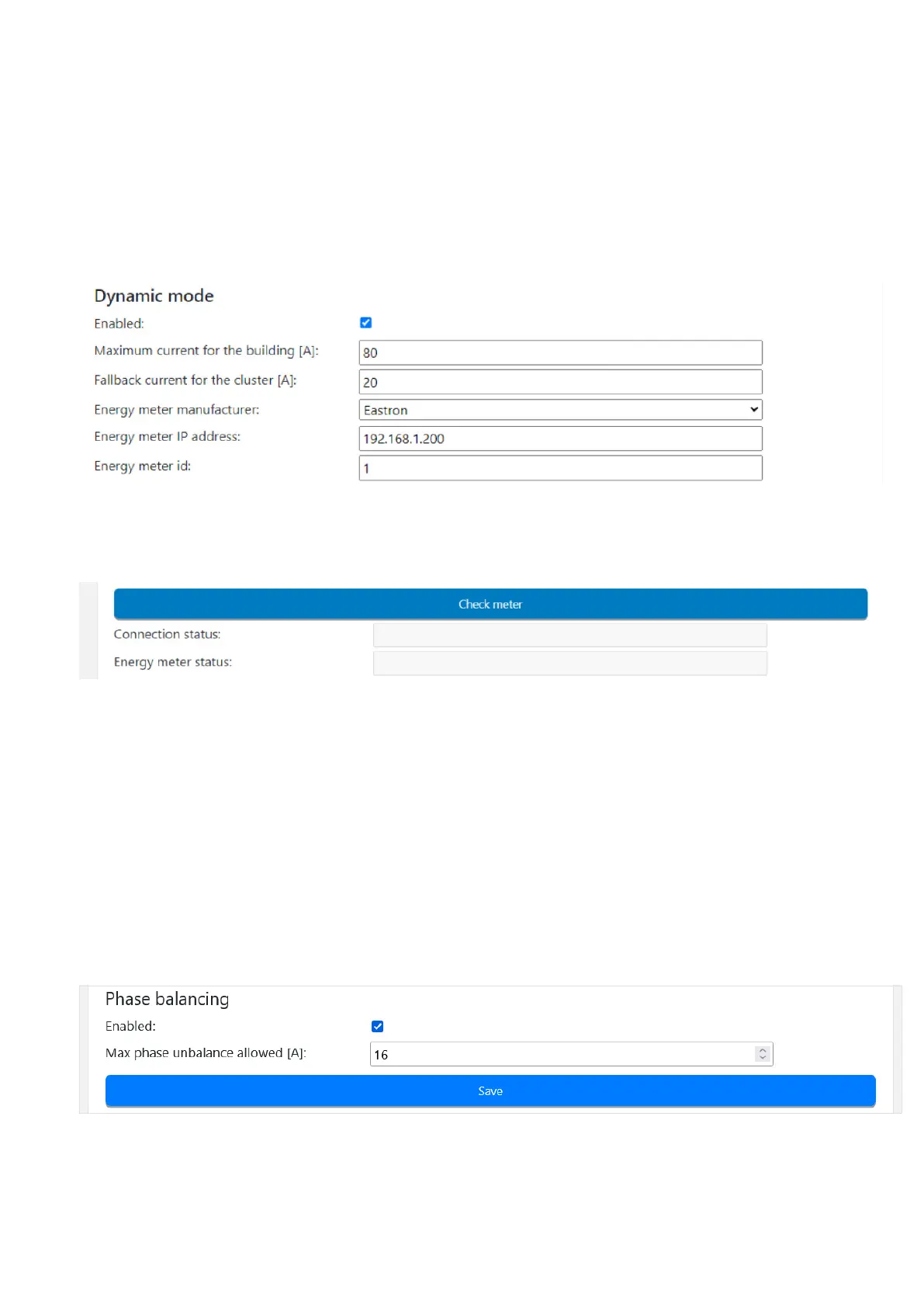

Figure 42. Dynamic load balancing configuration
Figure 43. Energy meter status
Figure 44. Phase balancing configuration
8.3.5.1.2 Phase balancing
The phase balancing is set by default with max phase unbalance at 16 A. These parameters could be modified by advanced user
in “Advanced mode”. To make the changes follow below steps:
Step 1: Click on “Advanced” at the top of configuration page (see Figure 44).
Step 2. Go to the “Phase balancing” section.
Step 3. Make sure the “Enabled” checkbox is checked.
Step 4. Select the "Max phase unbalance allowed [A]". Consult the relevant local regulations when setting
this value.
Step 6. Click "Save" to save all configuration.
Step 7. Click "Restart App".
Step 7. The “Fallback current for the cluster [A]” is set by default with a value of 0 Amps, but this value can be set up to a
higher value to allow the Master to distribute that max. current to the Nodes in case of temporary disconnection with the
energy meter. This parameter could be modified by advanced user in “Advanced mode”.
8.3.5.1.1 Dynamic load balancing
If dynamic load balancing is required, set the parameters as per the following steps:
Step 1. Go to the “Dynamic mode” section.
Step 2. Make sure the “Enabled” checkbox is checked.
Step 3. Enter a value for the ”Maximum current for the building [A]”
Step 4. Select the model (manufacturer) of the energy meter installed in the building. See Section 6.9 for a list of
recommended energy meters, tested to work with Green Motion Building EV chargers.
Step 5. Enter the IP address of the energy meter.
Step 6. Click the “Check meter” button. If the connection with the energy meter is established successfully, its status will be
indicated as illustrated in Figure 43.
67GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
