8.3.4 OCPP Server
This section contains the configuration related to communications protocol and OCPP connection, see Figure 40.
The Green Motion Building EV Charger connects to the Eaton Charging Network Manager (CNM) backend using the OCPP
1.6-J protocol. The section is pre-configured, and no changes are required when connecting to CNM.
In case the EV charger is used by a Charge Point Operator (CPO) with a third-party backend server, the default configuration
parameters must be updated with the parameters provided by the CPO according to the following steps:
Step 1. Set up the correct Charging station Id for the charger. This identification must be also registered at the third-party
backend OCPP server.
Step 2. In the field "Backend" select the OCPP Server you wish to establish a connection with. If the backend you want to use
is not listed, select "Custom".
Step 3. In the “Server URL” text box, enter the URL of the third-party backend OCPP server. The BoxId / Charging station Id
will be added automatically at the end of the “Server URL”.
Step 4. Select a security profile for the OCPP from the drop-down menu. It is recommended to use security profile 2:
TLS-based credential authentication.
Step 5. In the “User” text box, enter the username to access the OCCP server.
Step 6. In the “Password” text box, enter the password to access the OCCP server.
Step 7. Click “Save and apply” at the bottom of the tab.

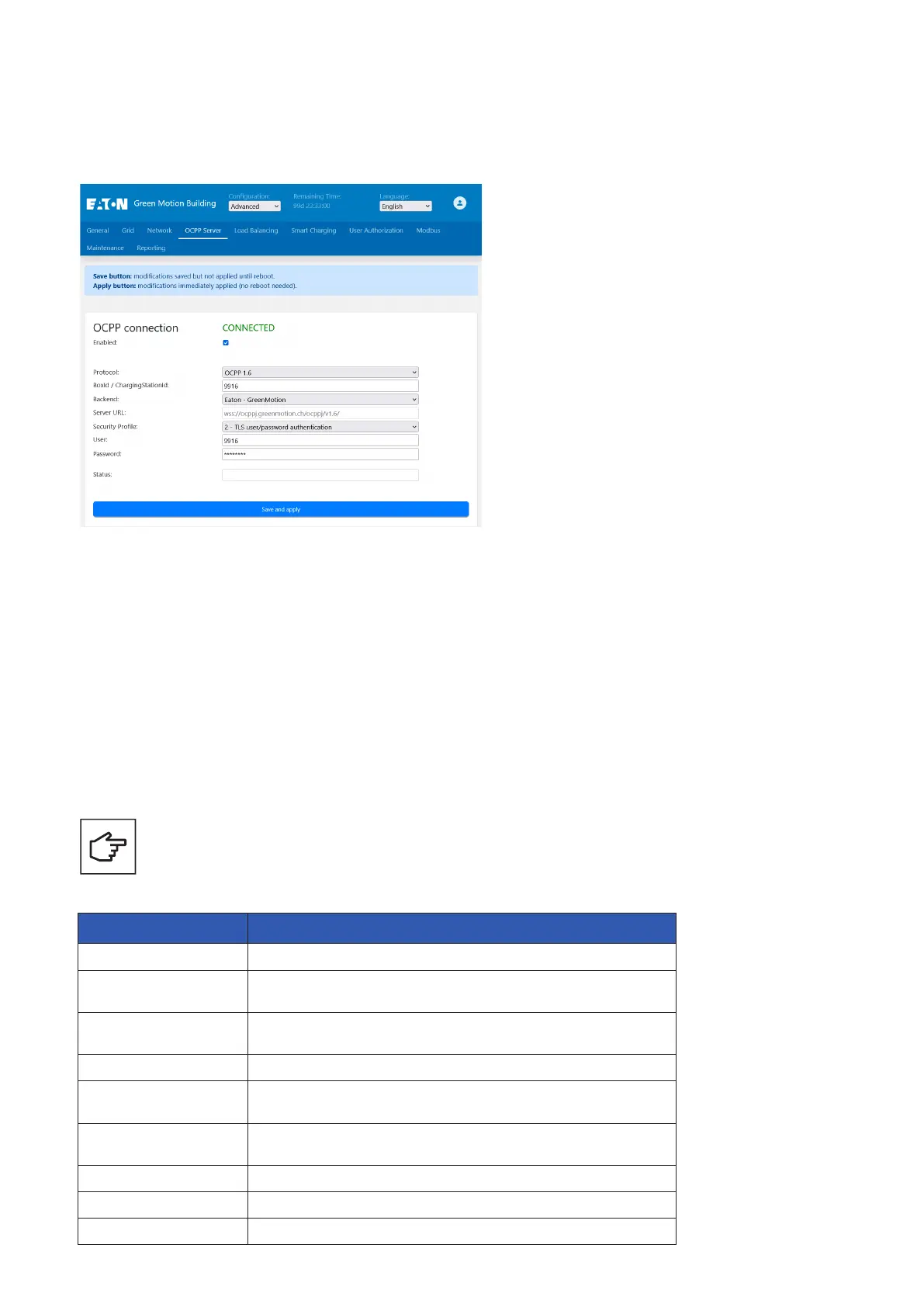

Figure 40. Configuration page – OCPP
The security profile must match the profile used on the backend server.
Description
Enabled Enable connection with OCPP server.
Protocol Version of the OCPP protocol.
Default is 1.6J
BoxId / ChargingStationId Identifier of the charging point.
Only editable in Advanced view.
Backend List of pre-configured OCPP backends
Server URL URL used for backend connection.
“BoxId/ChargingStationId” are appended to the end of the URL.
Security profile OCPP Security profile level. Level 0,1,2 are supported.
Levels 0 and 1 display a security warning message.
User OCPP username
Password OCPP password
Status OCPP error messages if connection not stablished.
Table 26. Fields of the OCPP Server tab
