Step 4. Connect the wires of EV charger 4 in the numerical order of phases (L1 on terminal L1, L2 on terminal L2 and L3 on
terminal L3), in the same way as EV charger 1.
Step 5. Repeat the cycle by connecting the wires of EV charger 5 like EV charger 2 and EV charger 6 like EV charger 3.
The cycle should be repeated for all Green Motion Building EV chargers.
Figure 28. How to wire multiple Green Motion Building EV chargers
Tag Description
A
EV charger 1: Standard wiring of phases
B
EV charger 2: Alternate phases
C
EV charger 3: Alternate phases again
D
EV charger 4: Back to standard wiring of phases
L1 PE N L2 L3
L1PE NL2 L3
A B
L1 L2
PE
NL3
L1
PE
N L2 L3
C D
Alternating the phase connections

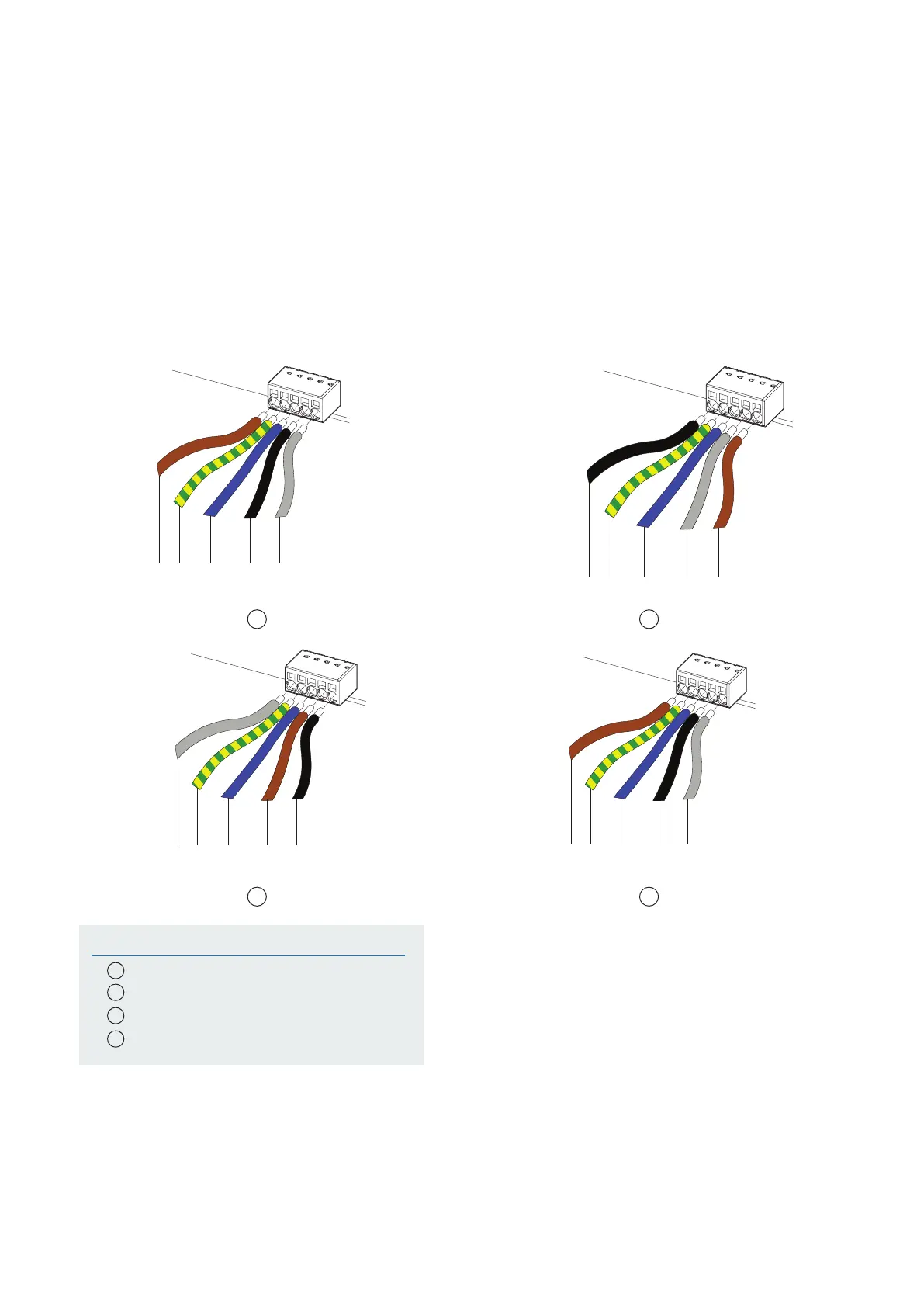

The schematics in Figure 28 explain how to wire multiple Green Motion Building EV chargers.
Step 1. Connect the wires of EV charger 1 in the numerical order of phases (L1 on terminal L1, L2 on terminal L2 and L3 on
terminal L3).
Step 2. Connect the wires of EV charger 2 with the phases alternated one way (L2 on terminal L1, L3 on terminal L2 and L1 on
terminal L3)
Step 3. Connect the wires of EV charger 3 with the phases alternated the other way (L3 on terminal L1, L1 on terminal L2 and
L2 on terminal L3).
53GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
