Setup
Operating Instructions D867 e-con - 00.0 - 06/2023 191
7.10 Changing the handwheel
The handwheel that ships with the machine is the large handwheel.
The large handwheel can be replaced with the small handwheel,
which can be ordered as a spare part ( Parts List D867).
Important
When assembling the small handwheel, the cover must be posi-
tioned above the handwheel and tightened on the machine.

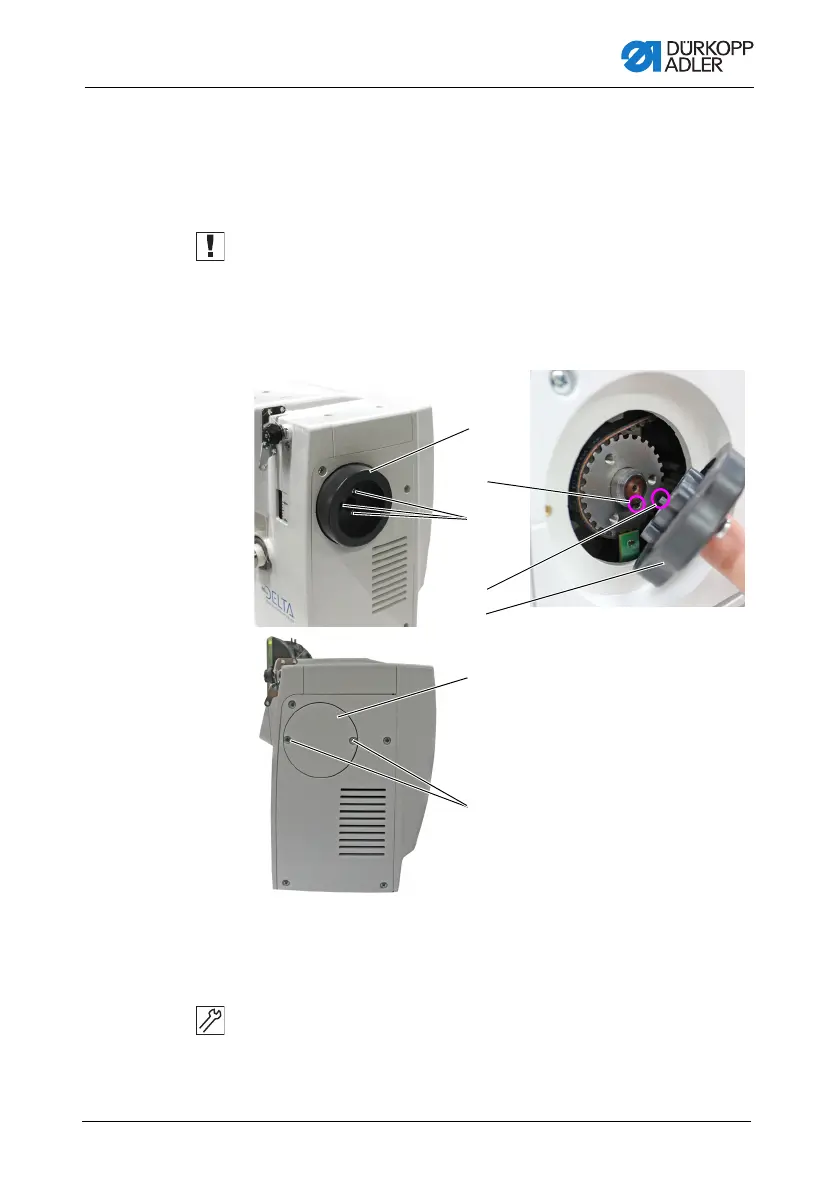

Fig. 96: Changing the handwheel
To change the handwheel:
1. Loosen the screws (3).
2. Remove the large handwheel (1).
(1) - Large handwheel
(2) - Hole
(3) - Screws
(4) - Pin
(5) - Small handwheel
(6) - Cover
(7) - Screws
①
②
③
⑤
⑥
⑦
④
