192 Operating Instructions D867 e-con - 00.0 - 06/2023
3. Position the small handwheel (5) above the pulley in such a
way that the pin (4) protruding on the inside of the handwheel
fits into the matching hole (2) in the pulley.
4. Tighten the small handwheel (5) using the screws (3).
5. Place the cover (6) and tighten it using the screws (7).
The handwheel has been changed.
7.11 Assembling the knee button

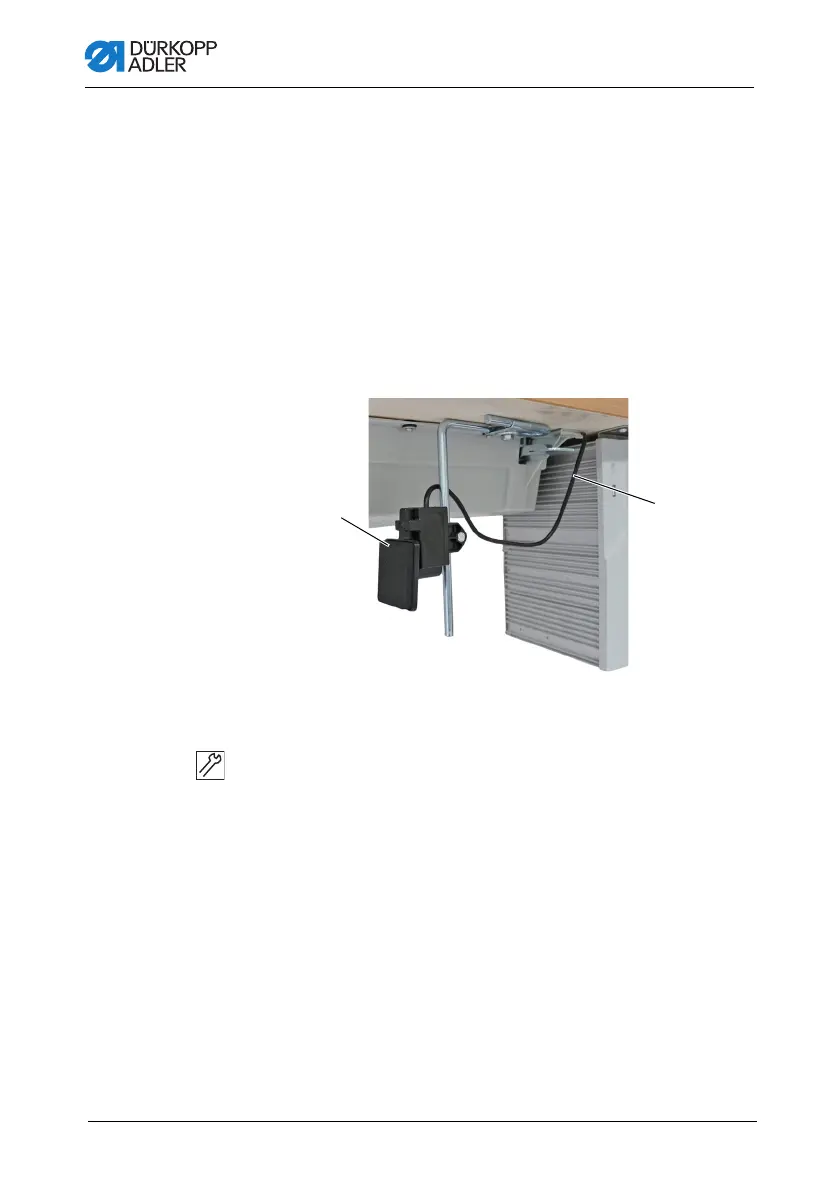

Fig. 97: Assembling the knee button
To assemble the knee button:
1. Screw the knee button (1) in front of the oil pan firmly in place
under the tabletop.
2. Guide the connecting cable (2) to the back between the oil
pan and the control.
3. Insert the plug of the knee button into the socket of the control.
(1) - Knee button
(2) - Connecting cable
(3) - Plug
①
②
