Operation
32 Operating Instructions 756 D - 00.0 - 06/2024

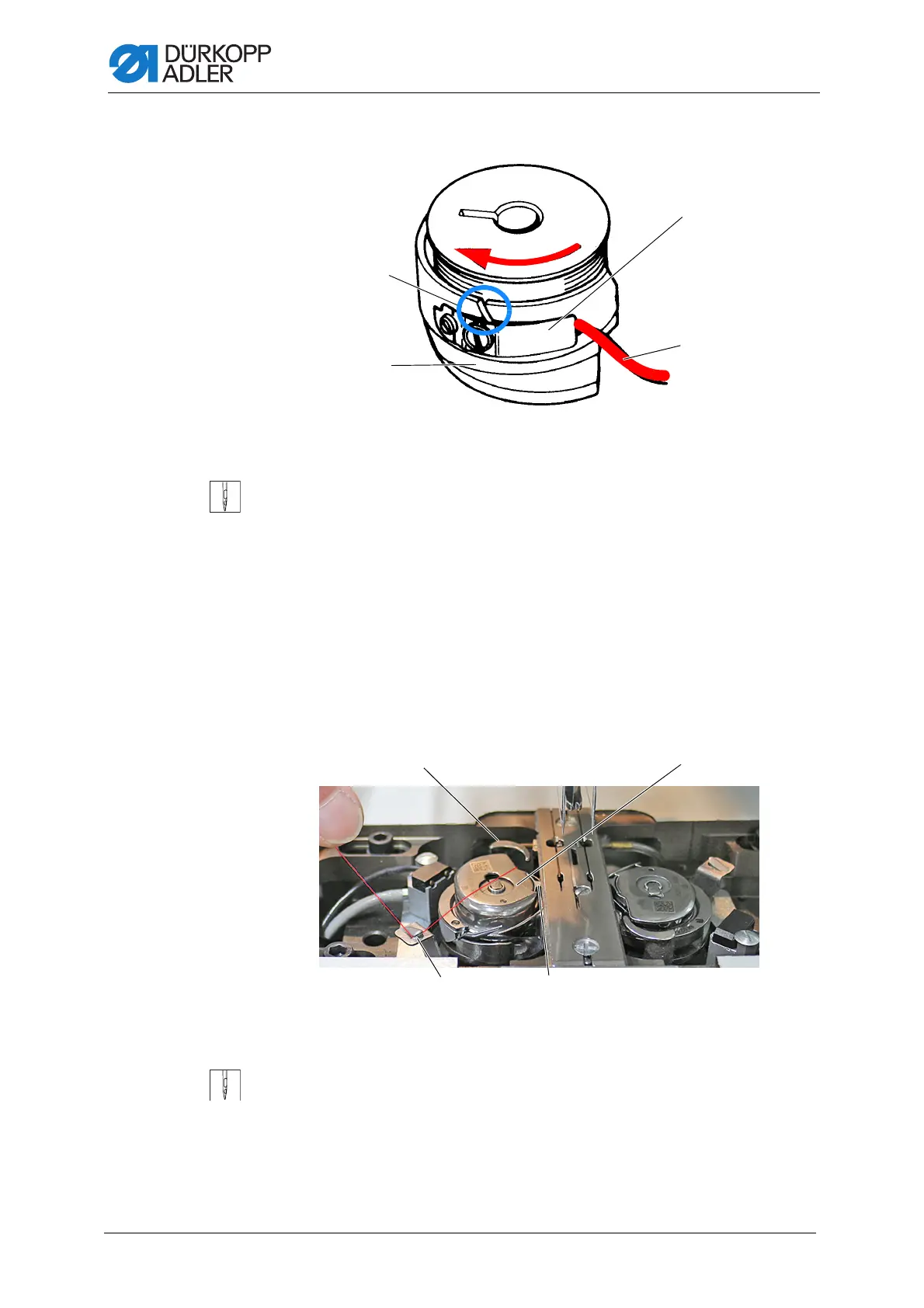

Fig. 14: Changing the bobbin (2)
7. Insert the full bobbin into the bobbin case upper section (1).
8. Pull the hook thread (4) through the slot (3) under the thread tensioning
spring (5).
9. Pull the hook thread (4) approx. 4 cm out of the bobbin case upper
section (1).
The bobbin must rotate in the direction of the arrow when pulling out
the thread (against the rotational direction of the hook).
10. Insert the bobbin case upper section (1) with the full bobbin into
the bobbin case bottom section.
11. Close the bobbin case retainer (2).
Fig. 15: Changing the bobbin (3)
12. Turn the bobbin case upper section (1) such that it abuts on the bobbin
case lifter (6) and the nose of the bobbin case is positioned for the
throat plate.
13. Pull the hook thread behind the thread-pulling knife (7) and tear it off.
14. Repeat steps 4 to 13 for the adjacent bobbin.
(1) - Bobbin case upper section
(3) - Slot
(4) - Hook thread
(5) - Thread tensioning spring
③
④
⑤
①
(1) - Bobbin case upper section
(6) - Bobbin case lifter
(7) - Thread-pulling knife
(8) - Nose of the bobbin case
⑥
⑦
⑧
①
