– 11 –
EN
8 Fig.
7 Fig.
6 Fig.
5 Fig.

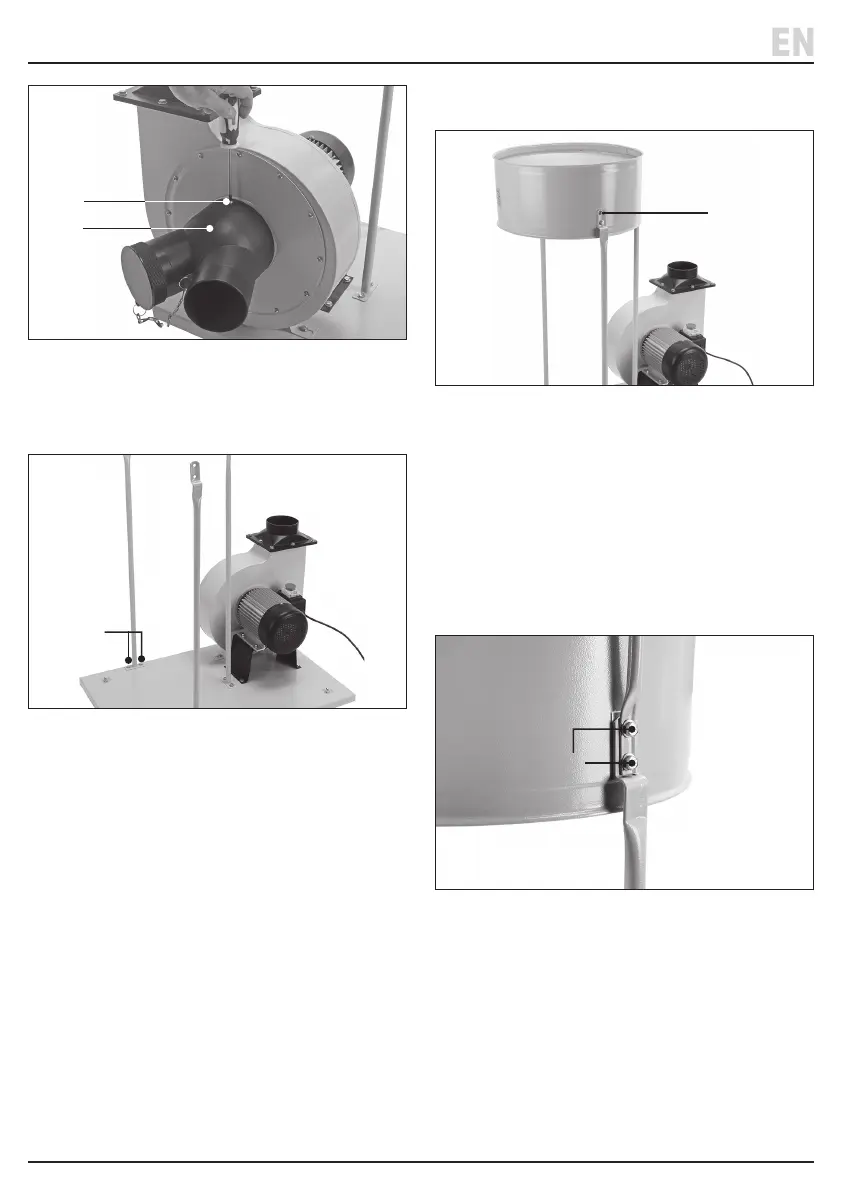

5. Remove the M5 x 8mm screw (R) from the circular
opening on the motor, then use it to attach the
extractor inlet (E) (Fig. 5).
6. Attach the lower supports to the base plate (Fig. 6):
a. With the vertical bracket curving inwards, pass two
M8 x 16mmm bolts (Q) each through a washer (S)
and through the perpendicular bracket of a lower
support rod (K).
b. Align the lower support rod with two of the
remaining holes in the base plate and tighten the
bolts to secure it in place.
c. Repeat these steps for the remaining two lower
support rods.
7. Attach the collection bag duct and upper
support rod:
a. Align the collection bag duct (C) with the upright
openings of the lower support rods.
Important: The holes on the collection bag
duct should be located towards the lower rim
when installed.
b. Pass four M8 x 16mm bolts (Q) each through a
washer (S) and x two of the support rods to the
collection bag duct so that the side tube points
towards the hose outlet (I) on top of the motor.
c. Align the upper support rod (N) with the holes in
the unsecured lower support rod and pass two
M8 x 16mm bolts (Q) each through a washer (S)
and secure the parts together (Fig. 8).
(R)
(E)
(Q)
(Q, S)
(Q)
