EN
gyroscopic stabilizer is not suitable for use in land vehicles or
when the boat is out of the water.
This product is only suitable for the intended purpose and
application in accordance with these instructions.
This manual provides information that is necessary for proper
installation and/or operation of the product. Poor installation
and/or improper operation or maintenance will result in
unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to
the product resulting from:
• Incorrect installation, assembly or connection, including excess
voltage
• Incorrect maintenance or use of spare parts other than original
spare parts provided by the manufacturer
• Alterations to the product without express permission from the
manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and
product specifications.
7 Technical description
The gyroscopic stabilizer (gyro) uses the principles of rotational
motion and angular momentum to decrease the roll motion of a
boat or yacht, improving stability and comfort for passengers and
crew.
At the core of the gyroscopic stabilizer is a high-speed flywheel
mounted within a gimbal system, which rotates around an axis
perpendicular to the boat centerline. When the boat rolls, the
stabilizer's control system senses the motion and rotates the
gimbal, which applies a torque opposite the direction of the
boat's roll. This dynamic counteraction reduces the roll motion
and results in a smoother ride.
The gyro can be operated in the following ways:
• The touch pad on the gyro cover.
• A control screen on a multi-function display (MFD).

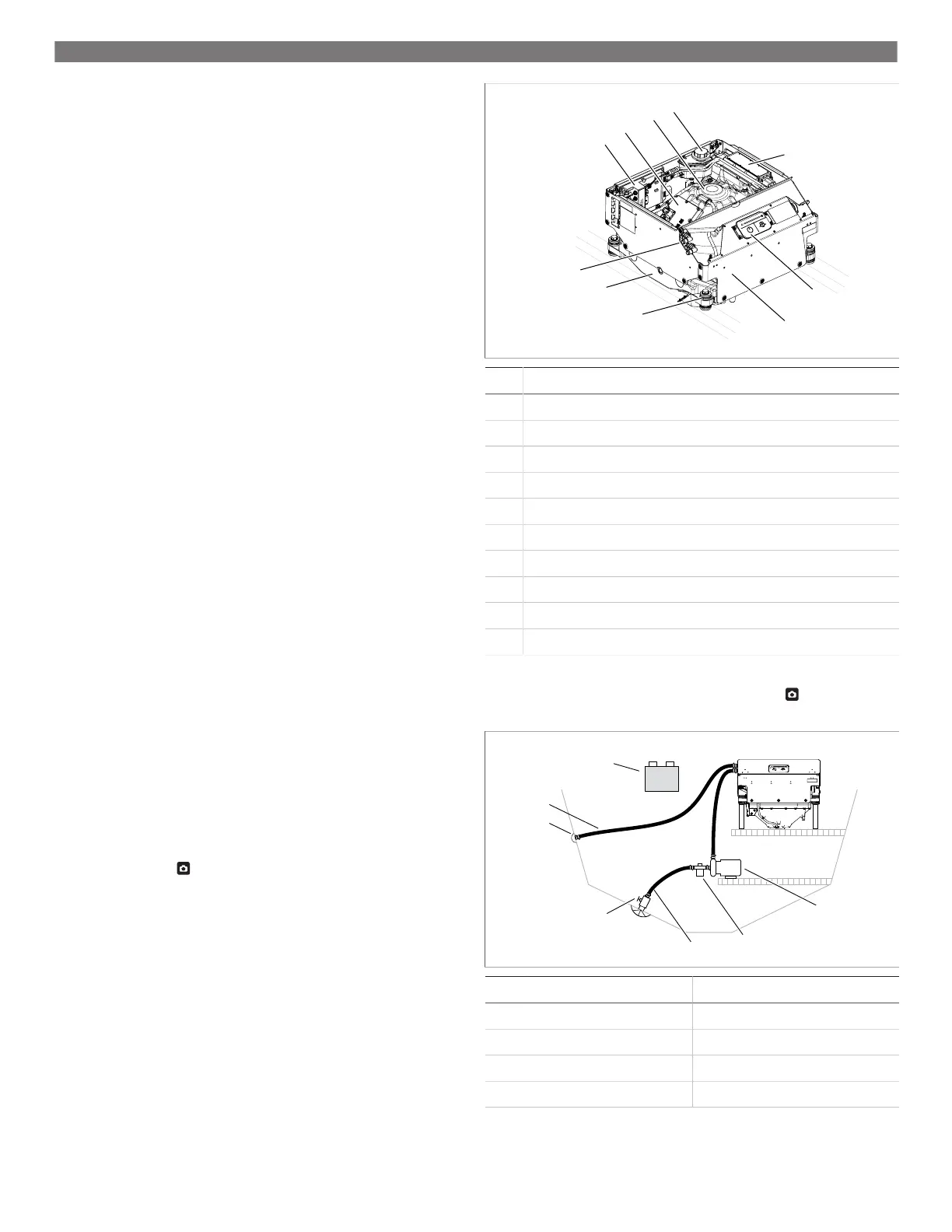

7.1 Component identification
Familiarize yourself with the main components of the gyroscopic
stabilizer, shown in Fig. on page5.
4
1
2
3
5
7
8
9
10
6
No. Description
1 Mounting fastener (x4)
2 Frame assembly
3 Heat exchanger and raw-water connections to cooling system
4 GCU (gyro control unit)
5 HCU (hemisphere control unit)
6 Flywheel and spin motor (inside enclosure)
7 Coolant tank and fill cap
8 Precession actuator and PCU (precession control unit)
9 Touch pad (control panel)
10 Protective covers (five panels)
There are several accessory components that are part of the
installed gyroscopic stabilizer system, shown in Fig. on
page5.
1
3
4
7
2
6
5
No. Description No. Description
1 Raw water overboard drain 5 Raw water strainer
2 Raw water discharge hose 6 Raw water intake hose
3 Dedicated 48 V battery 7 Raw water seacock
4 Raw water pump
5
