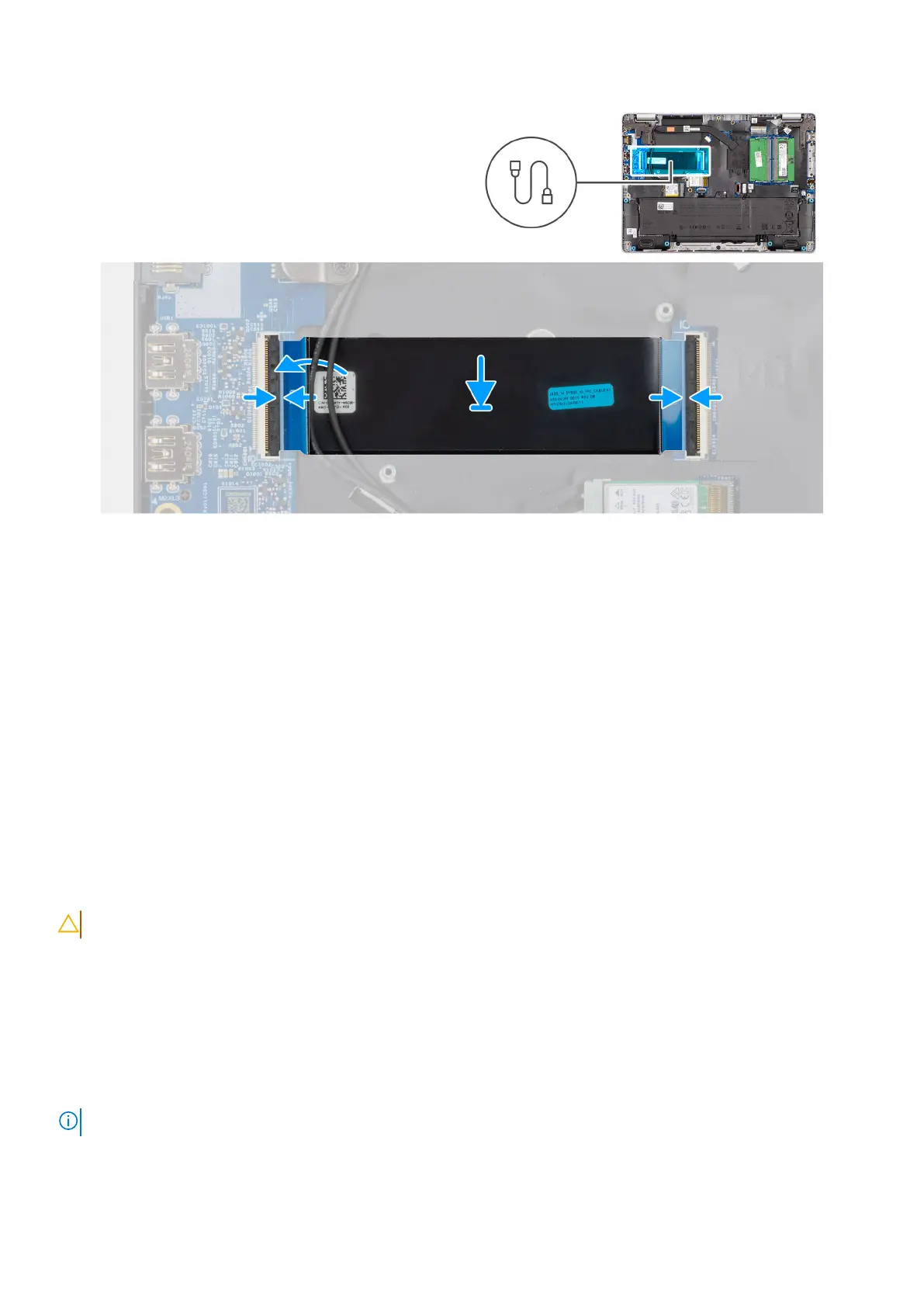

Figure 39. Installing the I/O board
Steps
1. Slide the I/O-board FPC cable beneath the WLAN antenna cables.
2. Connect the I/O-board FPC cable to the connector on the system board and close the latch to secure the cable in place.
3. Connect the other end of the I/O-board FPC cable to the connector (IO) on the I/O board and close the latch to secure the
connector in place.
Next steps
1. Install the fan.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Power button with fingerprint reader
Removing the power button with fingerprint reader
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the fan.
4. Remove the I/O board.
About this task
NOTE: For computers shipped without a fingerprint reader configuration, the power button removal steps remain the same.
The following images indicate the location of the power button and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
69
