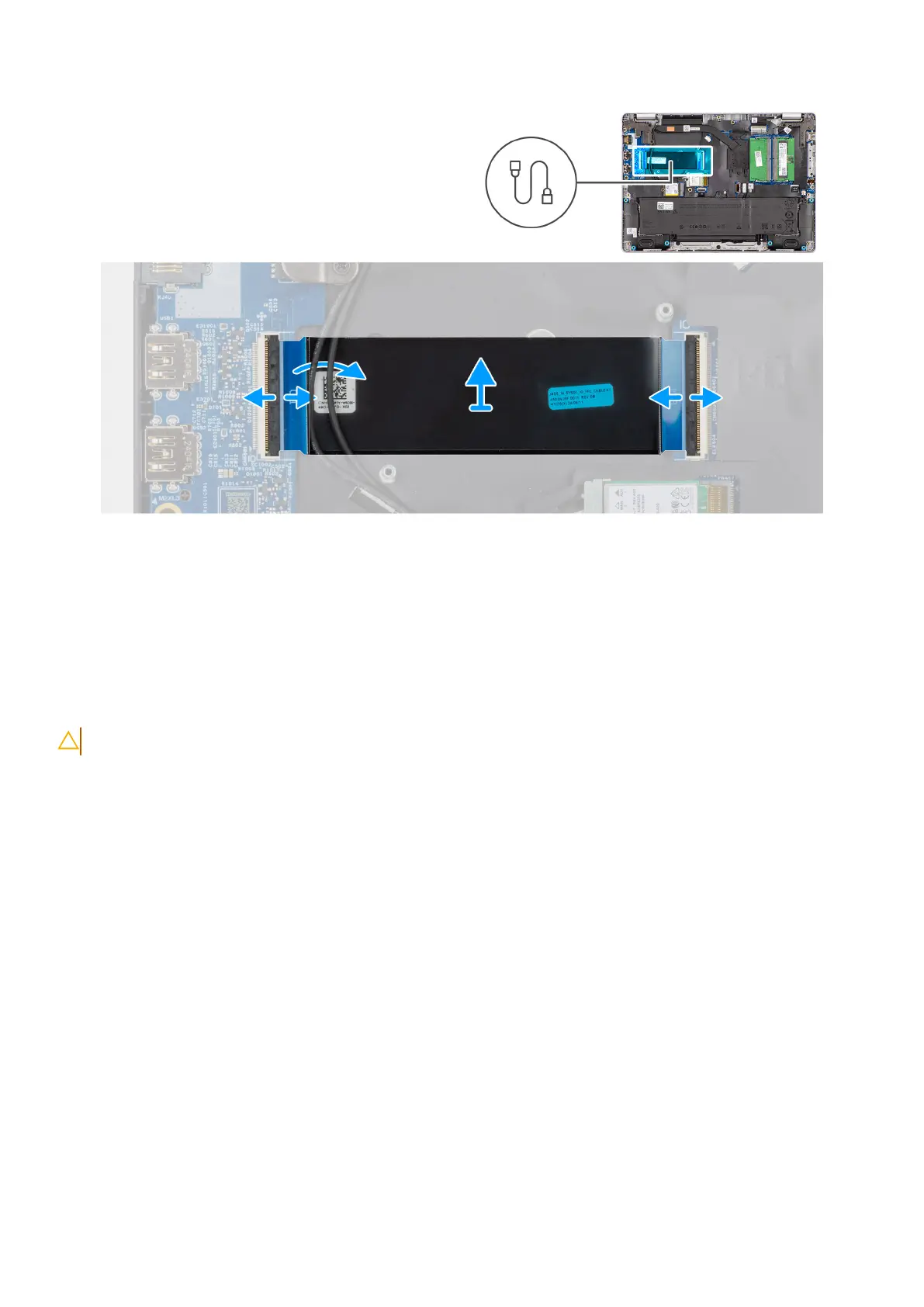

Figure 38. Removing the I/O-board FPC cable
Steps
1. Open the latch and disconnect the I/O-board FPC cable from the connector (IO) on the I/O board.
2. Open the latch and disconnect the other end of the I/O-board FPC cable from the connector on the system board.
3. Slide and lift the I/O-board FPC cable off the computer.
Installing the I/O board FPC cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the I/O-board FPC cable and provides a visual representation of the installation
procedure.
68
Removing and installing Field Replaceable Units (FRUs)
