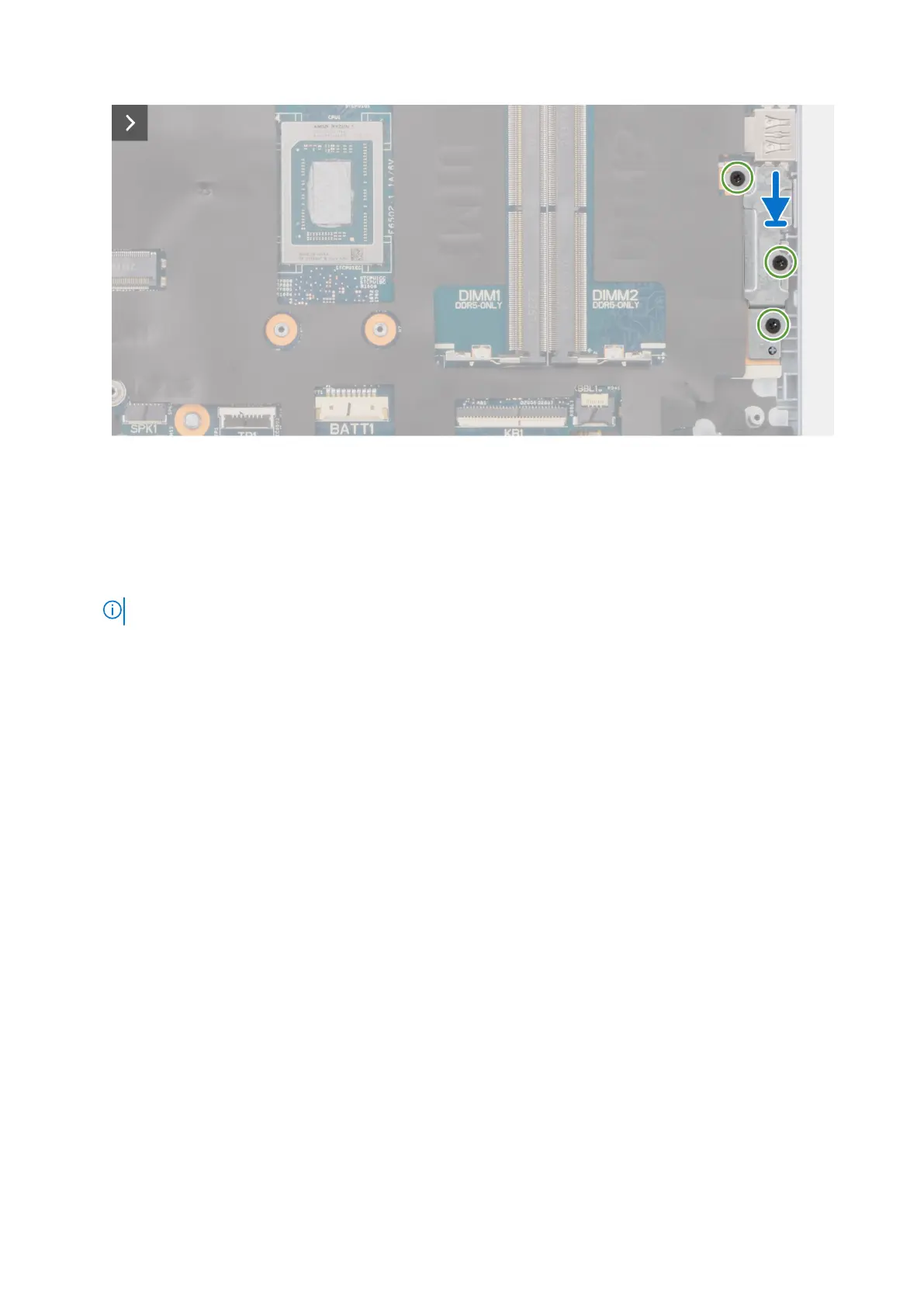

Figure 84. Installing the system board (for computers shipped with a plastic chassis)

7. Connect the following cables to the connectors on the system board:

a. I/O-board cable (IOBD1)

b. eDP cable (LCD)

c. Power-adapter port cable (DCIN1)

d. Keyboard-backlight cable (KBBL1)

NOTE:

This step applies only to computers that are shipped with a keyboard backlight installed.

e. Keyboard cable (KB1)

f. Touchpad cable (TP1)

g. Speaker cable (SPK1)

96

Removing and installing Field Replaceable Units (FRUs)
