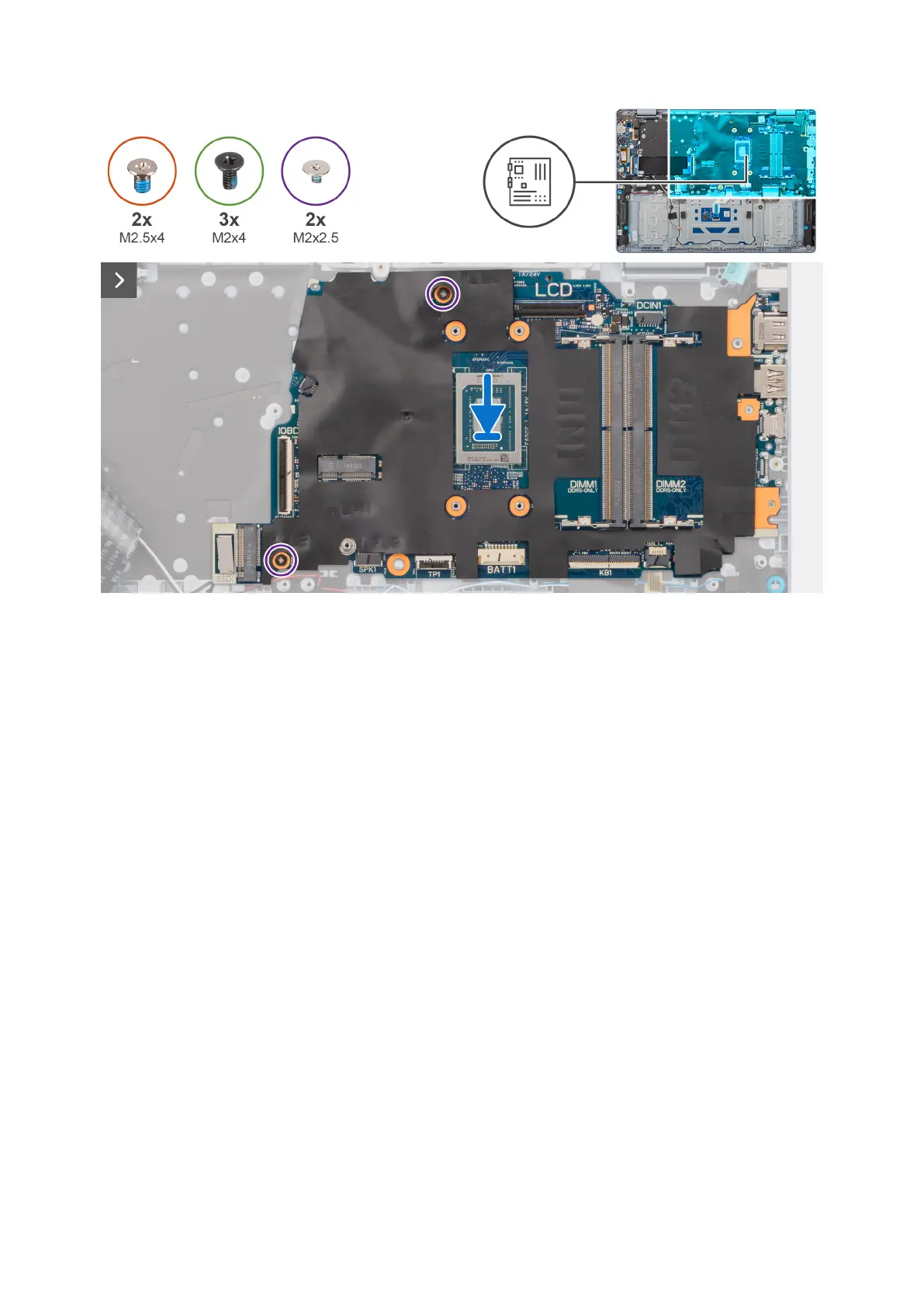

Figure 83. Installing the system board (for computers shipped with a plastic chassis)

Steps

1. Align the ports on the system board with the port slots and place the system board on the palm-rest and keyboard assembly.

2. Align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M2x2.5) to secure the system board to the palm-rest and keyboard assembly.

4. Place the USB Type-C port bracket in the slot on the system board.

5. Align the screw holes on the USB Type-C port bracket with the screw holes on the system board.

6. Replace the three screws (M2x4) to secure the USB Type-C port bracket to the system board.

Removing and installing Field Replaceable Units (FRUs)

95
