Handleiding

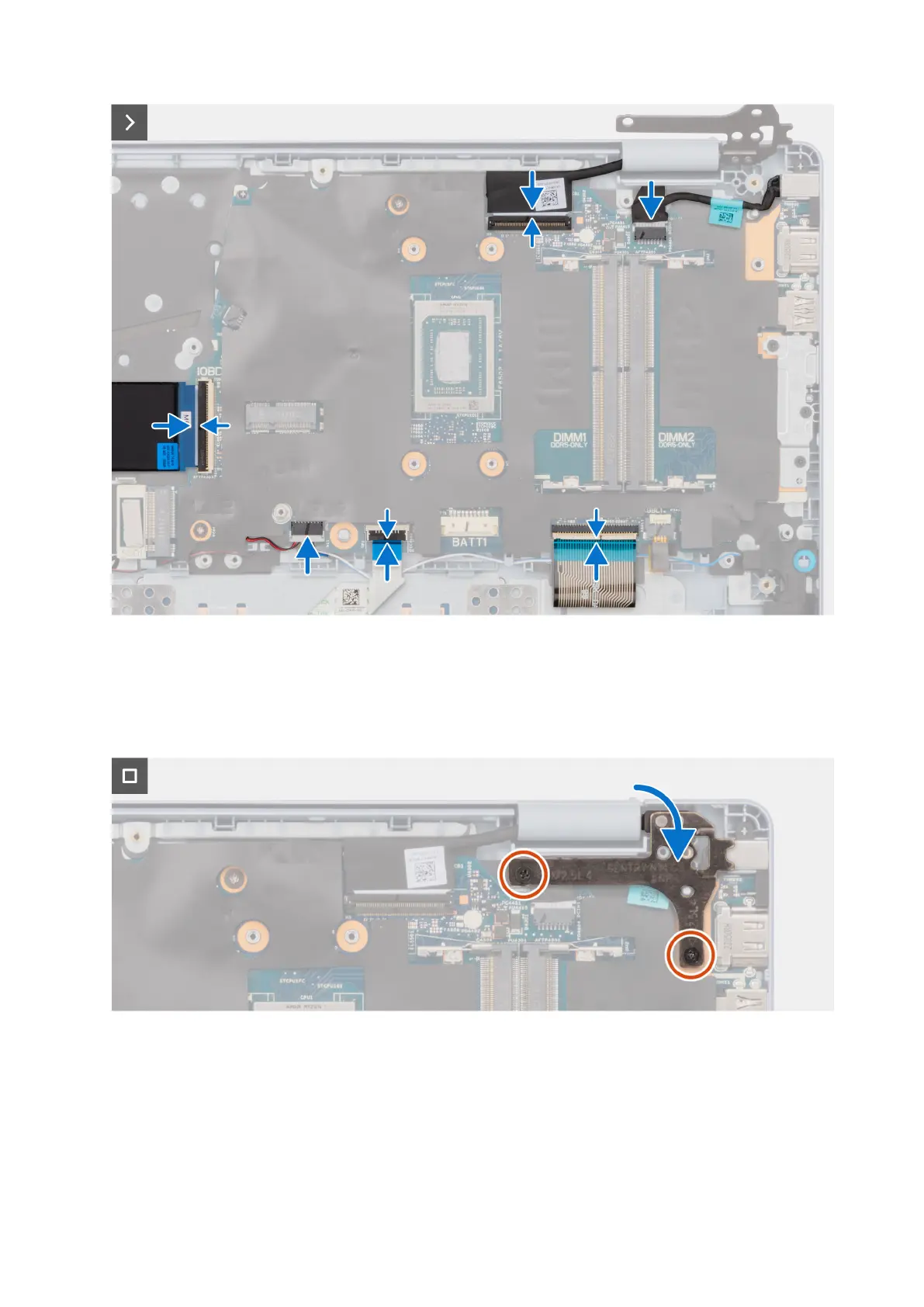

Figure 85. Installing the system board (for computers shipped with a plastic chassis

8. Close the right display hinge to align the screw holes on the right display hinge with the screw holes on the system board

and the palm-rest and keyboard assembly.

9. Replace the two screws (M2.5x4) to secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

Figure 86. Installing the system board

Next steps

1. Install the heat sink.

2. Install the 3-cell battery or the 4-cell battery, whichever is applicable.

3. Install the fan.

4. Install the wireless card.

Removing and installing Field Replaceable Units (FRUs)

97
