4. Remove the M.2 2230 or M.2 2280, as applicable.
5. Remove the 5G WWAN card.
6. Remove the heatsink.
About this task
The following images indicate the system board connectors.

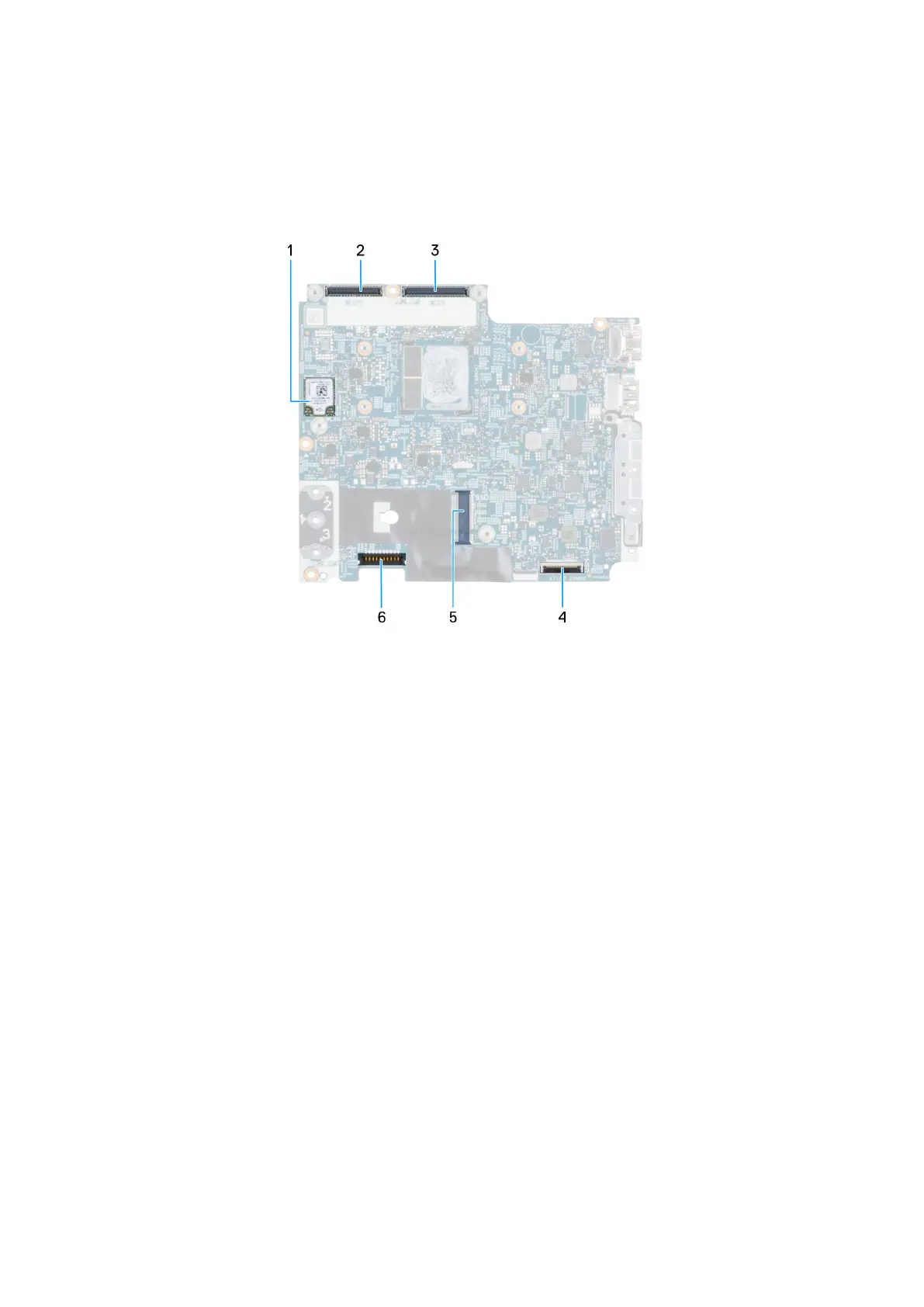

Figure 32. System board connectors
1.
Wireless-card (WLAN) 2. MIPI camera cable connector
3. Display-cable connector (LCD1) 4. USH cable connector
5. Sold state drive slot 6. Battery connector
The following images indicate the location of the system board and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
75
