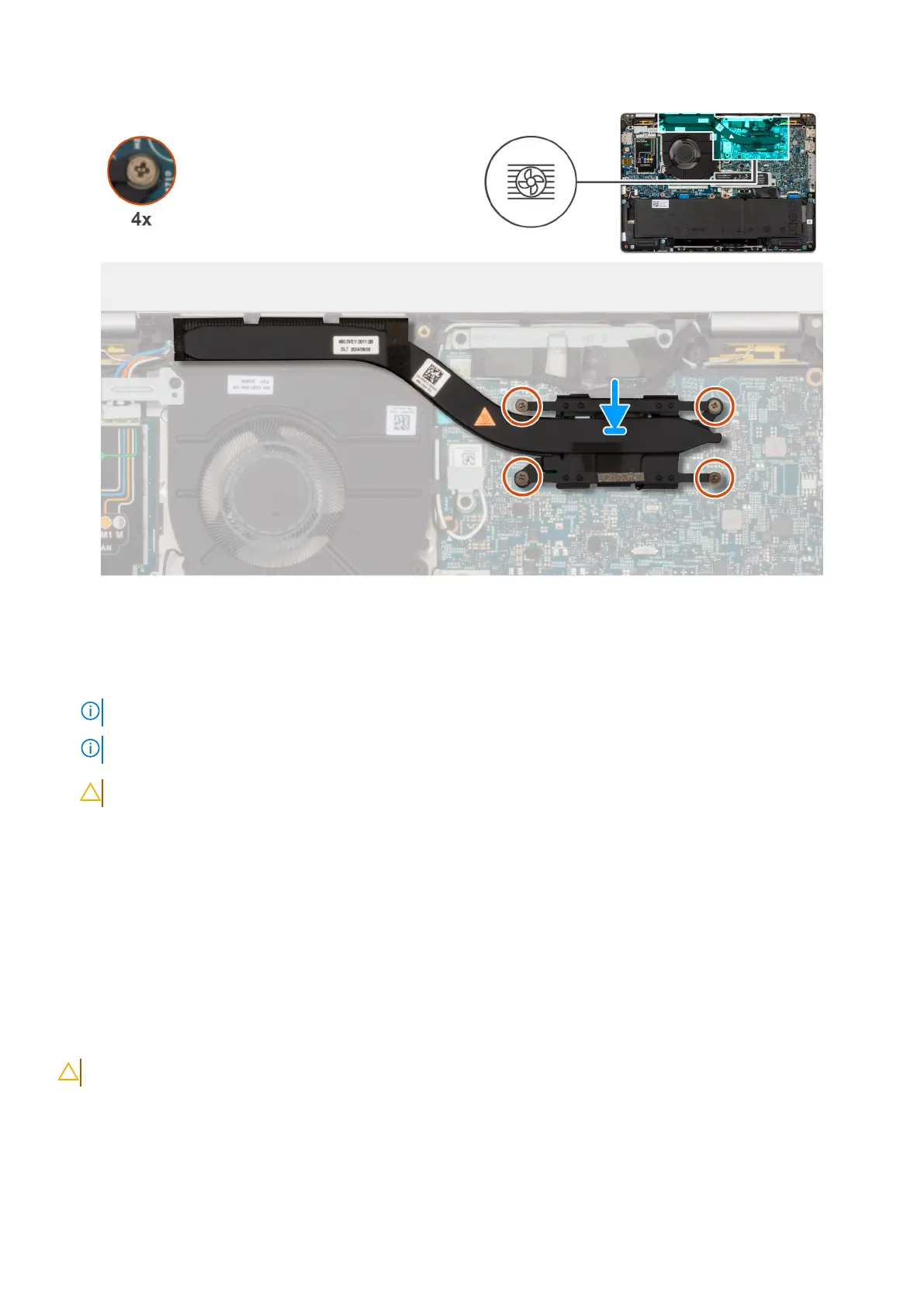

Figure 31. Installing the heat sink (Integrated GPU)
Steps
1. Place the heat sink on the system board.
2. Tighten the four captive screws that secure the heat sink to the system board.
NOTE: Tighten the captive screws in the sequential order mentioned on the heat sink [1 > 2 > 3 > 4].
NOTE: The number of screws varies depending on the configuration ordered.
CAUTION: Incorrect alignment of the heat-sink can damage the system board and processor.
Next steps
1. Install the base cover.
2. Install the SIM card (optional).
3. Follow the procedure in After working inside your computer.
System board
Removing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card (optional).
3. Remove the base cover.
74
Removing and installing Field Replaceable Units (FRUs)
