Steps

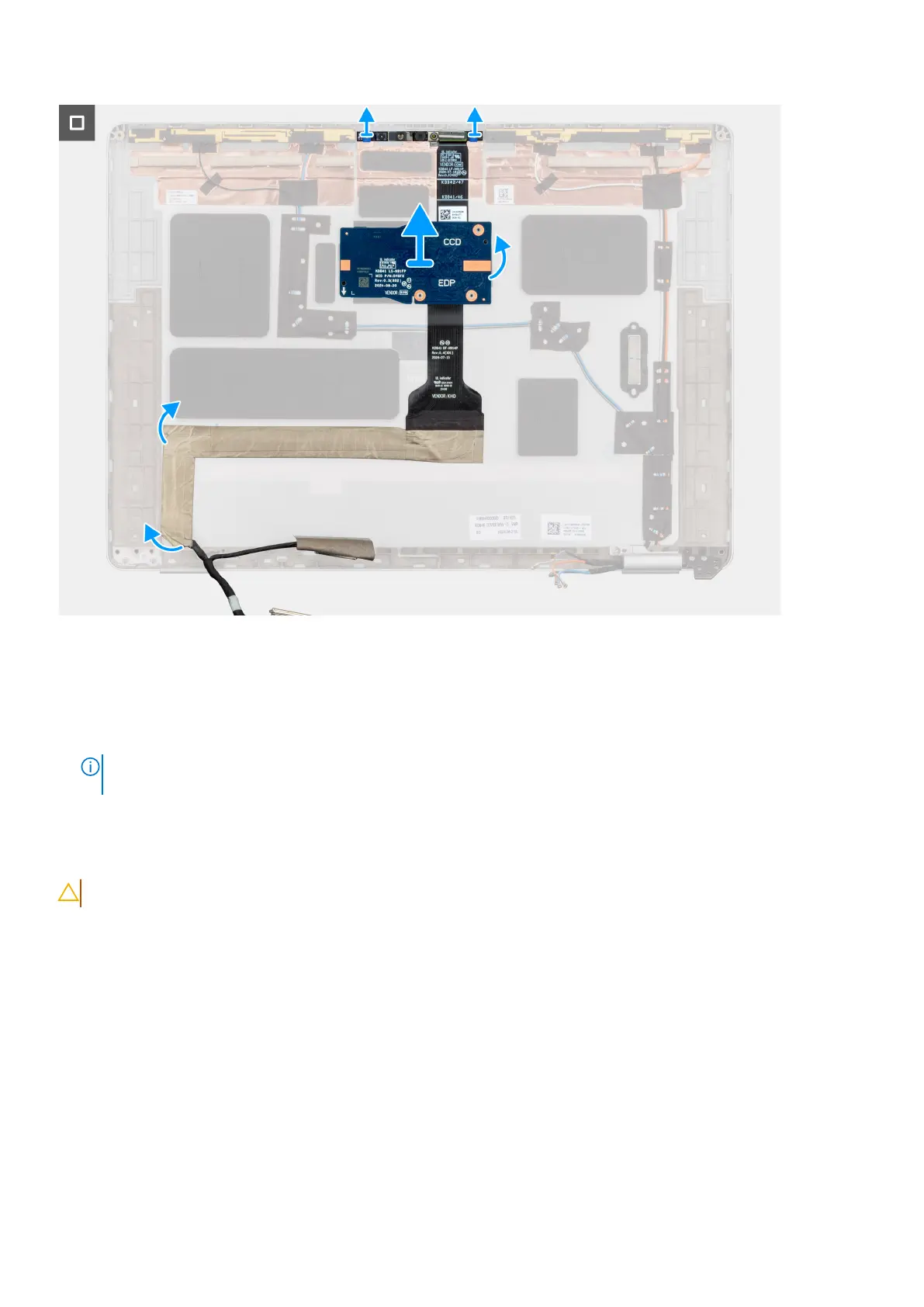

1. Peel the tape that secures the camera cable to the display back cover.
2. Disconnect the camera cable from the camera.
3. Carefully lift the camera module starting from the prying point at the bottom edge of the camera module.
4. Lift the camera module from the display back cover.
NOTE:
While removing the IR/RGB camera module, pry up the module from the recess at its bottom side indicated by
an arrow and then slide along the bottom side to detach it from the display back cover.
Installing the camera module
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the camera module and provide a visual representation of the installation
procedure.
110
Removing and installing Field Replaceable Units (FRUs)
