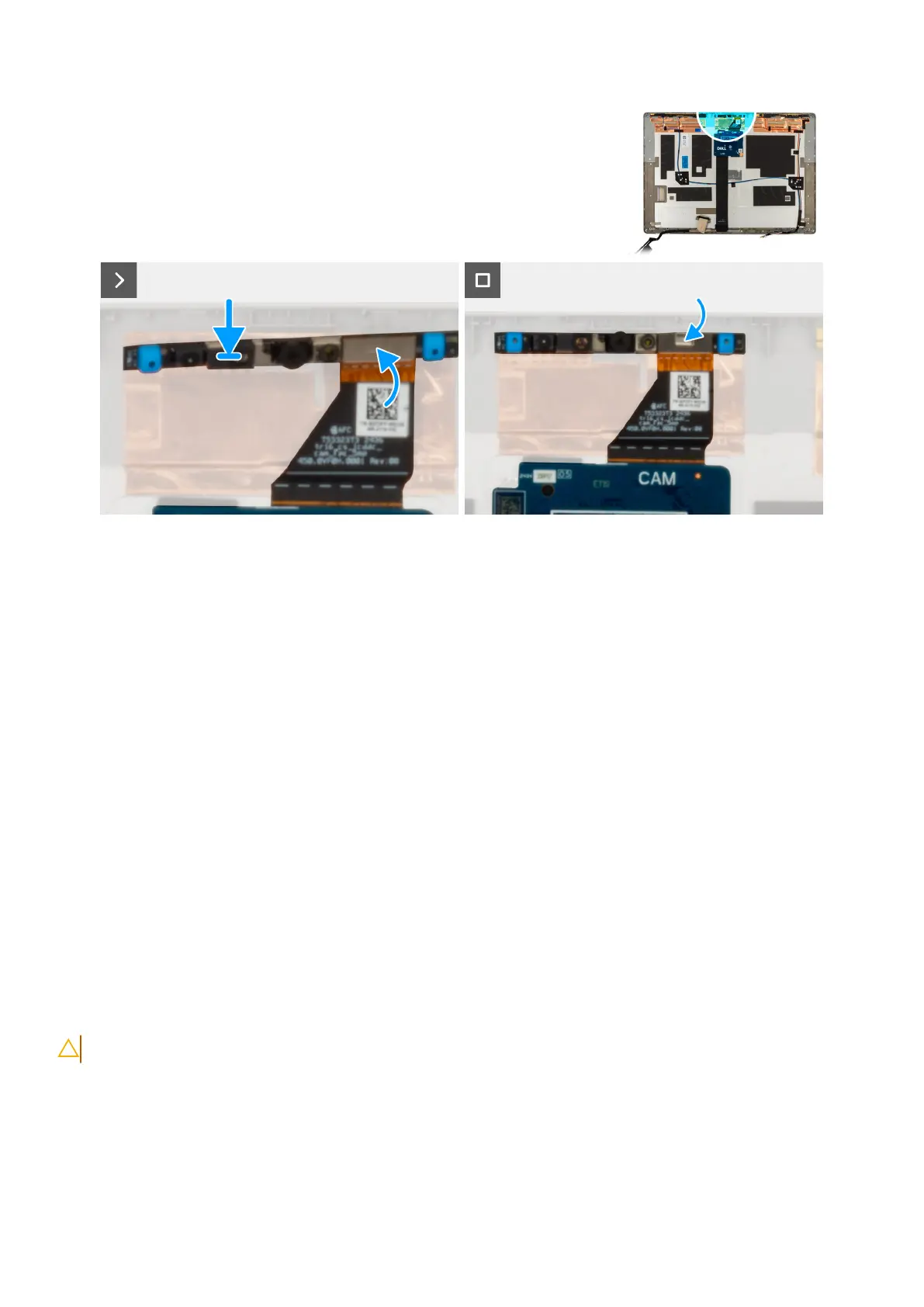

Figure 56. Installing the camera module
Steps
1. Connect the display cable one and the display cable two if present.
2. Route the antenna cables and from the routing channels.
3. Secure the four (M2.5x5) screws securing the LCD hinges in place.
4. Align and place the camera module into the slot on the display back cover.
5. Connect the camera module cable to the connector on the camera module.
6. Adhere the tape to secure the camera cable to the camera.
Next steps
1. Install the display panel.
2. Install the display bazel.
3. Install the display assembly.
4. Install the 5G WWAN card.
5. Install the base cover.
6. Install the SIM card (optional).
7. Follow the procedure in After working inside your computer.
Display cable
Removing the display cable
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card (optional).
3. Remove the base cover.
4. Remove the 5G WWAN card.
Removing and installing Field Replaceable Units (FRUs)
111
