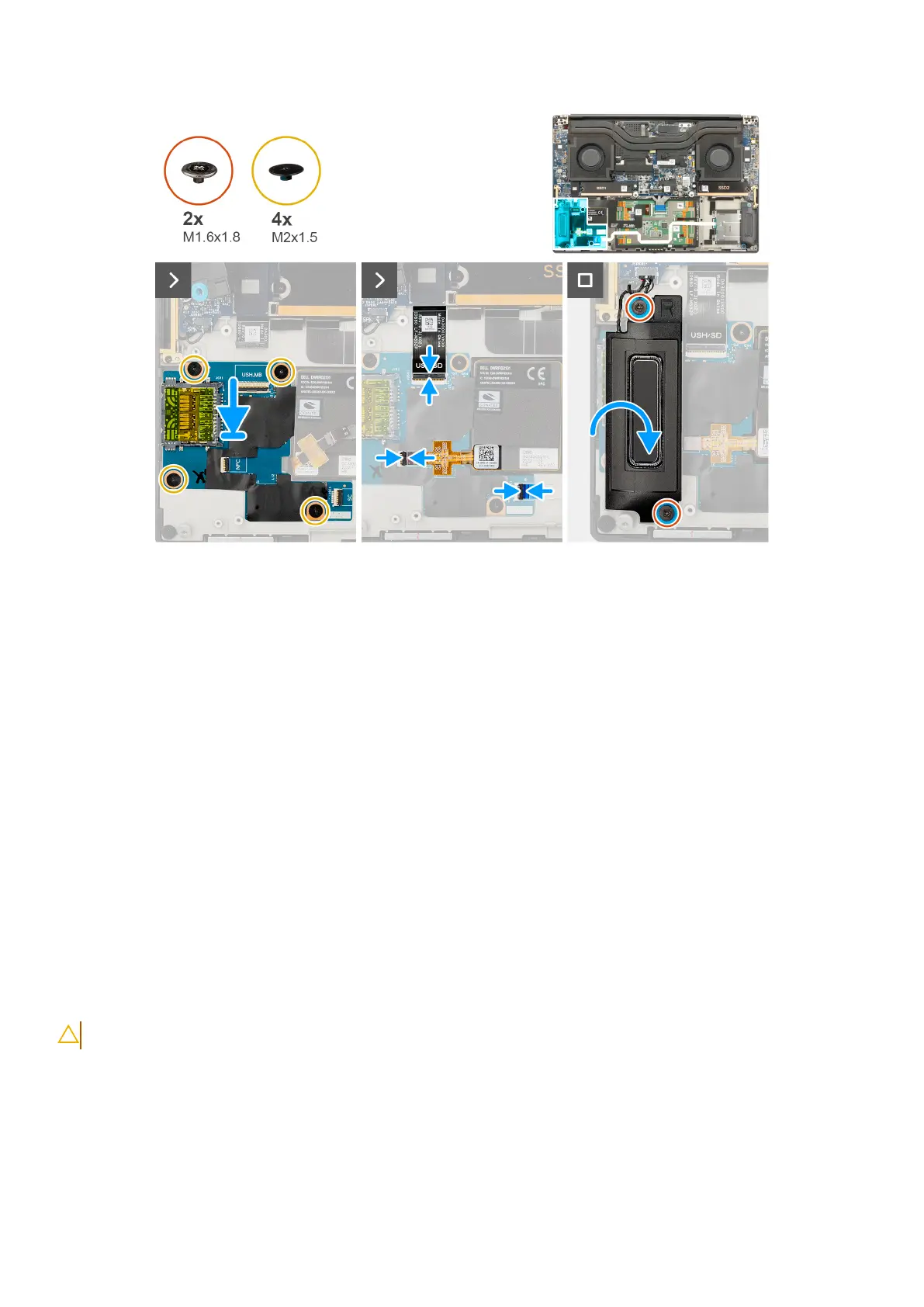

Figure 42. Installing the USH and SD-card daughterboard
Steps
1. Align and place the USH and SD-card daughterboard into the slot on the palm-rest assembly.
2. Replace the four screws (M2x1.5) to secure the USH and SD-card daughterboard to the palm-rest assembly.
3. Adhere the NFC module FFC on the USH and SD-card daughterboard.
4. Connect the USH and SD-card daughterboard FFC cable, smart-card reader FFC cable (for computers shipped with a smart
card), and NFC module FFC cable to the connector on the SD-card daughterboard.
5. Align and place the right speaker into the slot on the palm-rest assembly.
6. Replace the two screws (M1.6x1.8) to secure the right speaker in place.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Smart-card reader daughterboard
Removing the smart-card reader daughterboard
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
Removing and installing Field Replaceable Units (FRUs)
77
