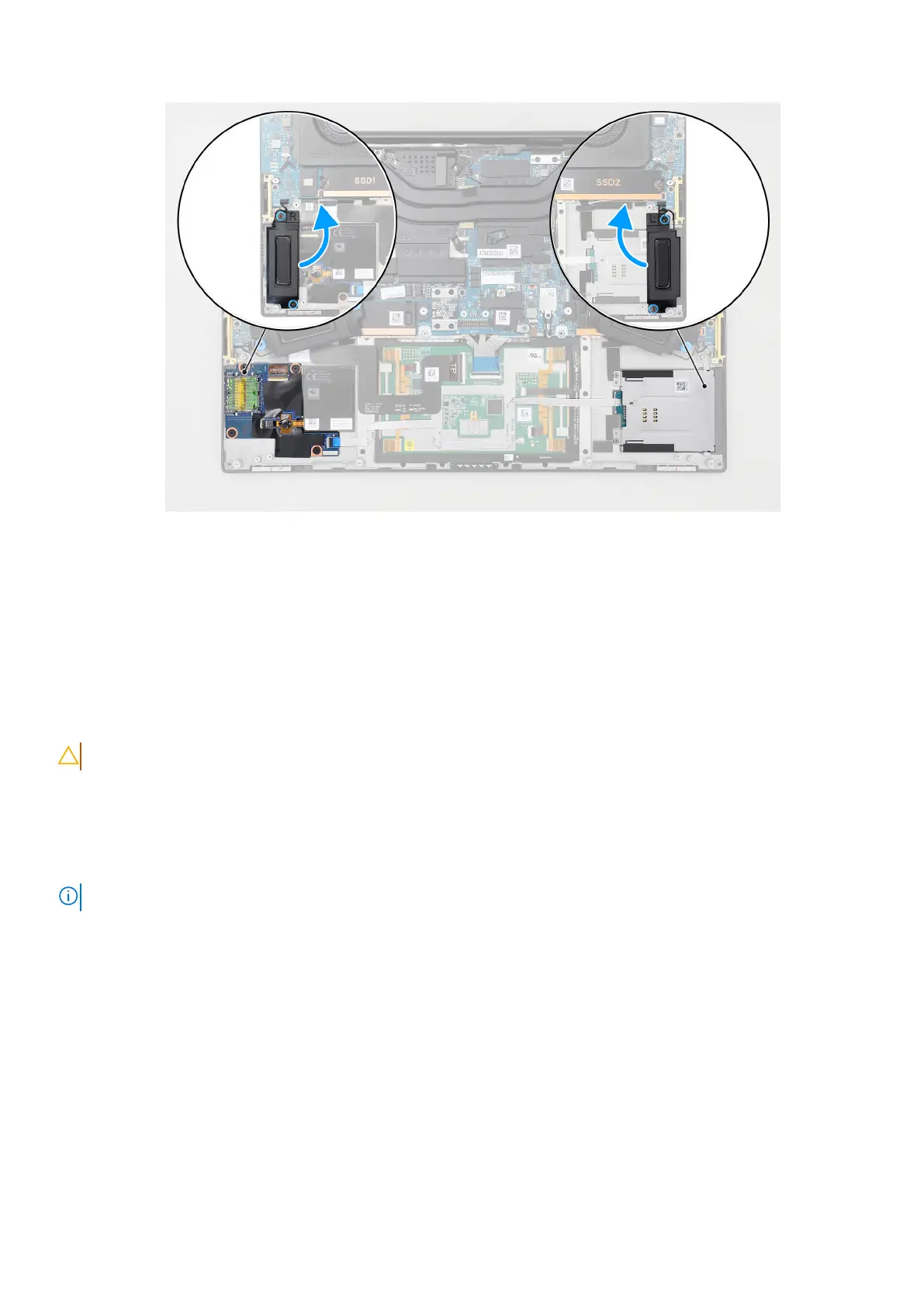

Figure 41. Speakers
3. Disconnect the USH and SD-card daughterboard FFC cable, smart-card reader FFC cable (for computers shipped with a
smart card), and NFC module FFC cable from the connectors on the USH and SD-card daughterboard.
4. Peel back the NFC module FFC from the USH and SD-card daughterboard.
5. Remove the four (M2x1.5) screws that secure the USH and SD-card daughterboard to the palm-rest assembly.
6. Lift and remove the USH and SD-card daughterboard from the palm-rest assembly.
Installing the USH and SD-card daughterboard
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The following procedure is applicable for computers that are shipped with a USH module only.
The following image indicates the location of the USH and SD-card daughterboard and provides a visual representation of the
installation procedure.
76
Removing and installing Field Replaceable Units (FRUs)
