4. Follow the procedure in After working inside your computer.
USH and SD-card daughterboard
Removing the USH and SD-card daughterboard
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
About this task
NOTE: The following procedure is applicable for computers that are shipped with a USH module only.

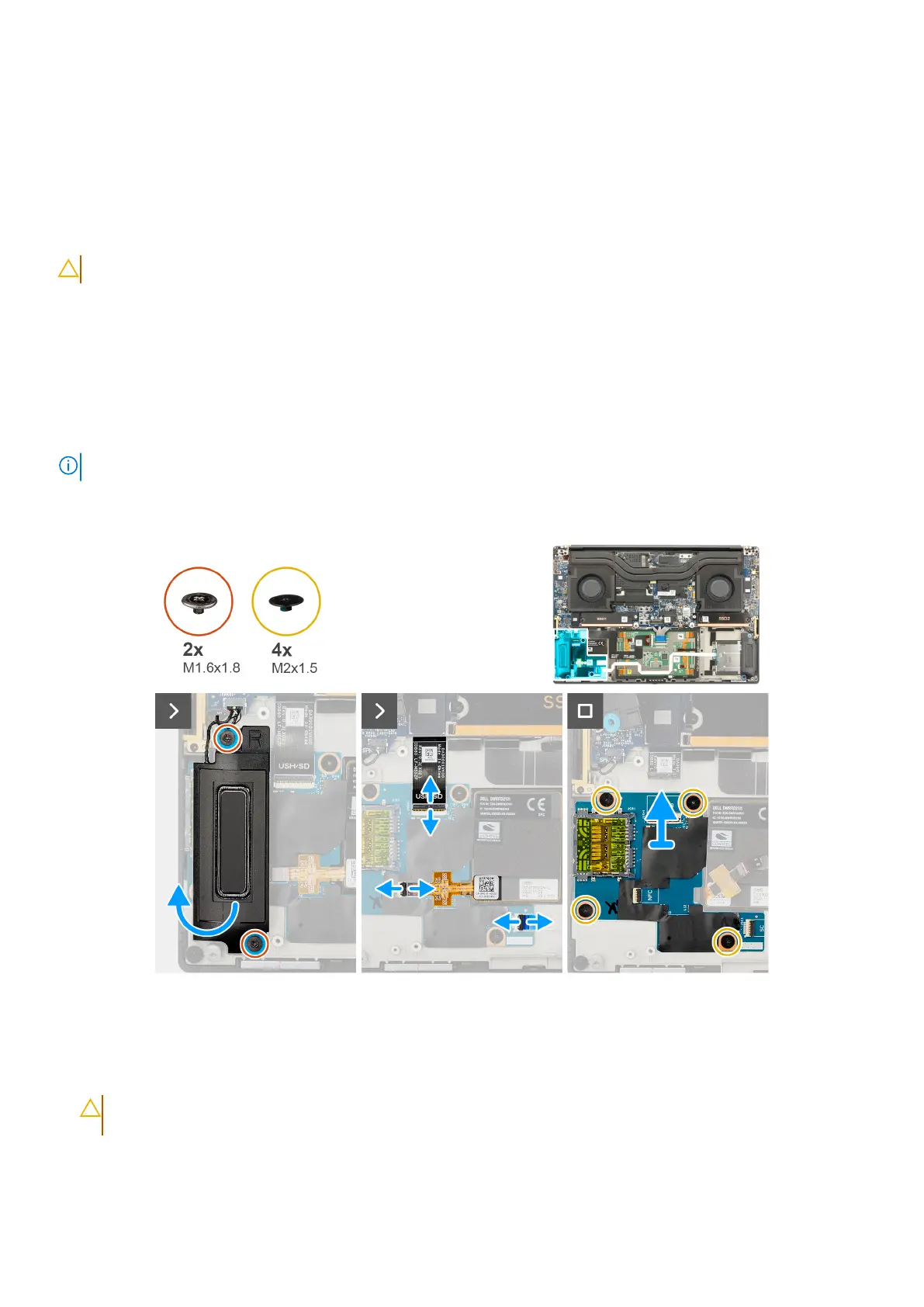

The following images indicate the location of the USH and SD-card daughterboard and provide a visual representation of the
removal procedure.
Figure 40. Removing the USH and SD-card daughterboard
Steps
1. Remove the two screws (M1.6x1.8) that secure the right speaker in place.
2. Slightly lift the right speaker from the palm-rest assembly.
CAUTION:
Do not remove the right speaker completely. It still attached to the tweeter underneath the
system board.
Removing and installing Field Replaceable Units (FRUs) 75
