3. Disconnect the SD-card daughterboard FPC from the connector on the SD-card daughterboard.
4. Remove the three screws (M2x1.5) that secure the SD-card daughterboard to the palm-rest assembly.
5. Lift and remove the SD-card daughterboard from the palm-rest assembly.
Installing the SD-card daughterboard
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The following procedure is applicable for computers that are shipped without a USH module only.
The following image indicates the location of the SD-card daughterboard and provides a visual representation of the installation
procedure.

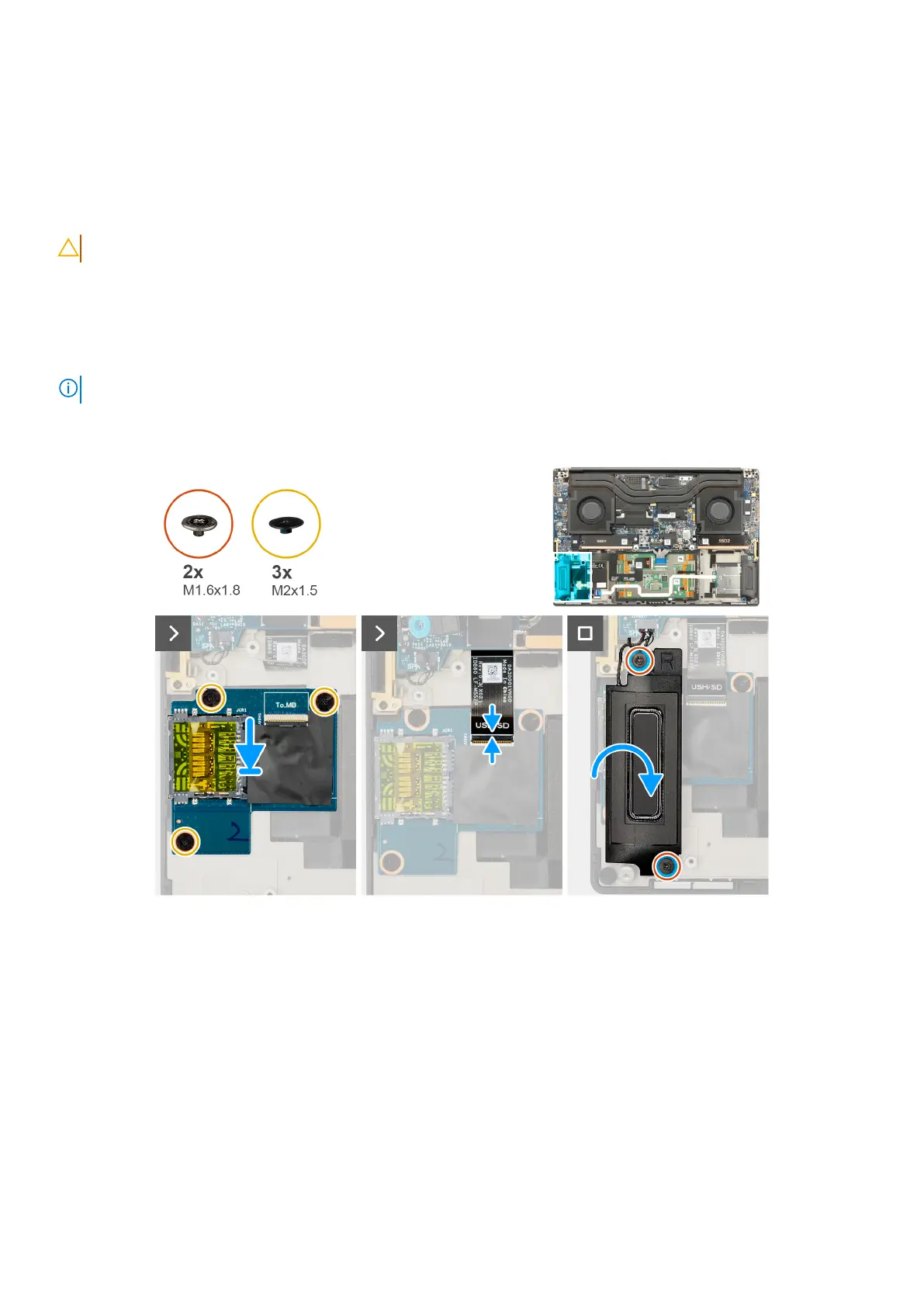

Figure 39. Installing the SD-card daughterboard
Steps
1. Align and place the SD-card daughterboard into the slot on the palm-rest assembly.
2. Replace the three screws (M2x1.5) to secure the SD-card daughterboard to the palm-rest assembly.
3. Connect the SD-card daughterboard FPC cable to the connector on the SD card daughterboard.
4. Align and place the right speaker into the slot on the palm-rest assembly.
5. Replace the two screws (M1.6x1.8) to secure the right speaker in place.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the SD card.
74
Removing and installing Field Replaceable Units (FRUs)
