About this task
NOTE: The following procedure is applicable for computers that are shipped with a smart-card reader only.
The following images indicate the location of the smart-card reader and provide a visual representation of the removal
procedure.

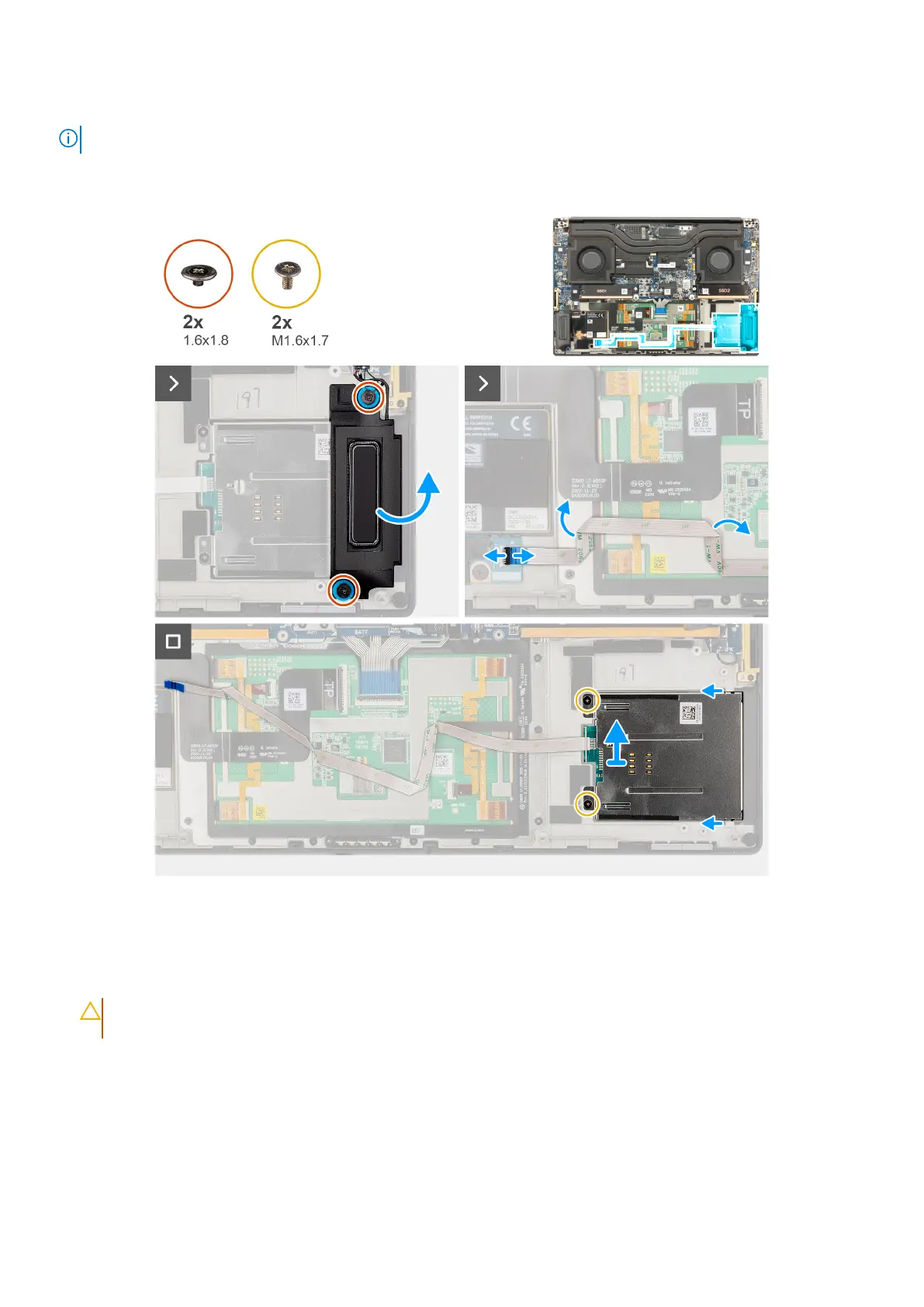

Figure 43. Removing the smart-card reader
Steps
1. Remove the two screws (M1.6x1.8) that secure the left speaker in place.
2. Slightly lift the left speaker from the chassis.
CAUTION:
Do not remove the left speaker completely. It is still attached to the tweeter underneath the
system board.
78 Removing and installing Field Replaceable Units (FRUs)
