Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the SD-card daughterboard FPC and provides a visual representation of the
installation procedure.

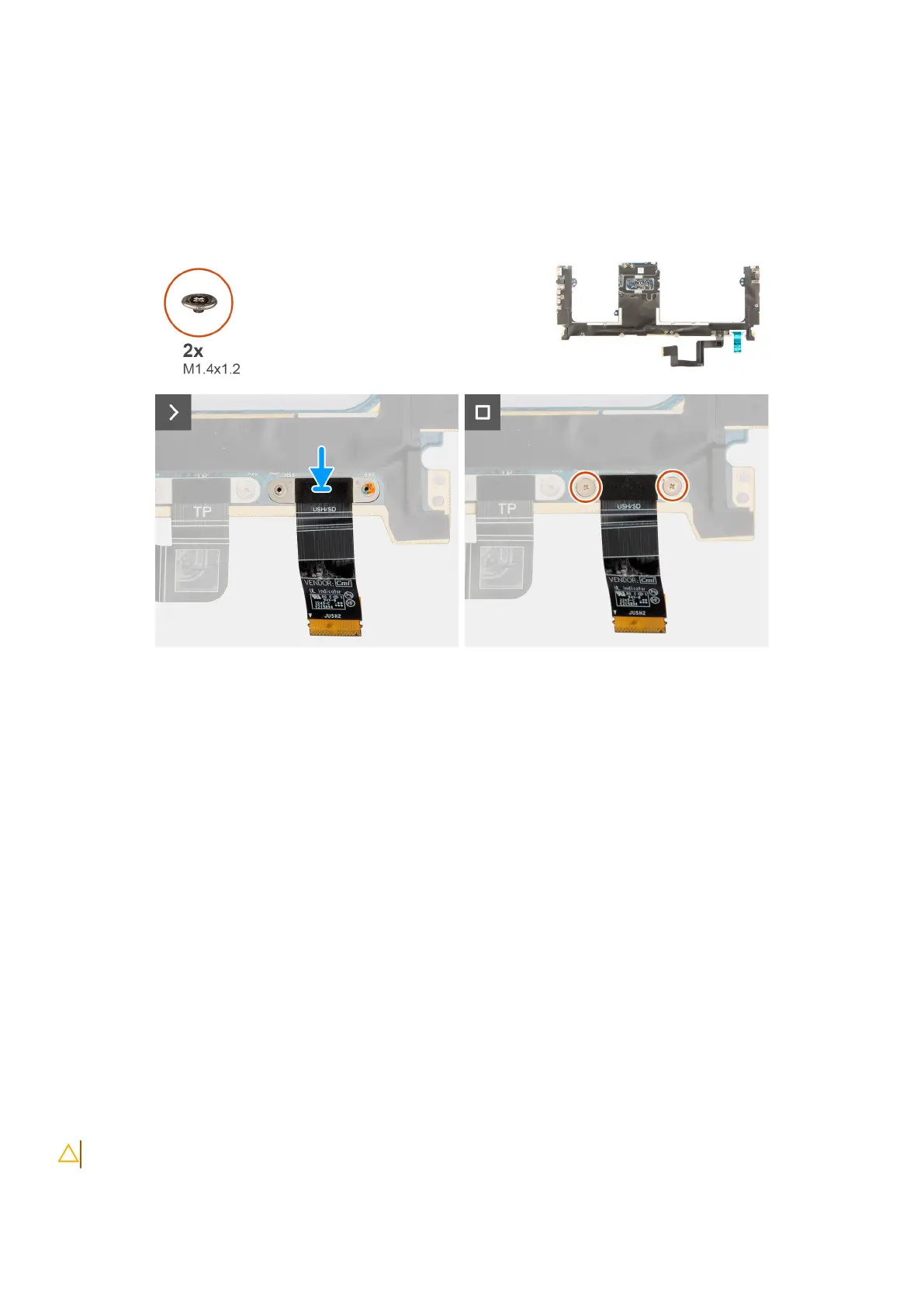

Figure 74. Installing the SD-card daughterboard FPC
Steps
1. Align and place the SD-card daughterboard FPC in place.
2. Replace the two screws (M1.4x1.2) to secure the SD-card daughterboard FPC in place.
3. Connect the SD-card daughterboard FFC cable to the connector on the system board.
Next steps
1. Install the system board.
2. Install the heat sink.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the battery.
6. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in After working inside your computer.
USH and SD-card daughterboard FPC
Removing the USH and SD-card daughterboard FPC
CAUTION: The information in this removal section is intended for authorized service technicians only.
108 Removing and installing Field Replaceable Units (FRUs)
