SD-card daughterboard FPC
Removing the SD-card daughterboard FPC
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the M.2 2230 solid state drive or M.2 2280 solid state drive.
5. Remove the battery.
6. Remove the processor fan.
7. Remove the graphics-card fan.
8. Remove the heatsink.
9. Remove the system board.
About this task
The following images indicate the location of the SD-card daughterboard FPC and provide a visual representation of the removal
procedure.

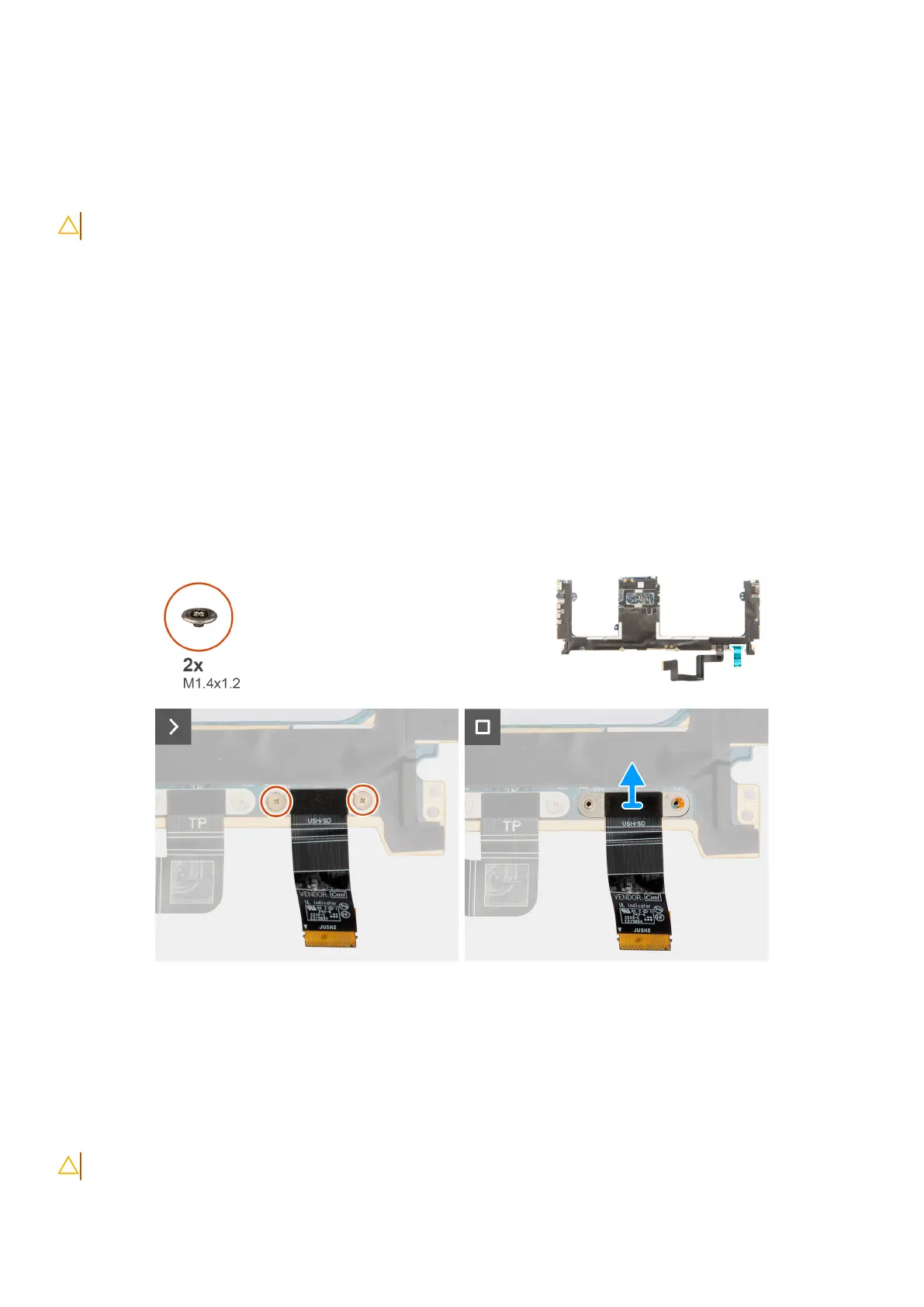

Figure 73. Removing the SD-card daughterboard FPC
Steps
1. Remove the two screws (M1.4X1.2) that secure the SD-card daughterboard FPC in place.
2. Disconnect and remove the SD-card daughterboard FFC cable from the connector on the system board.
Installing the SD-card daughterboard FPC
CAUTION: The information in this installation section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 107
