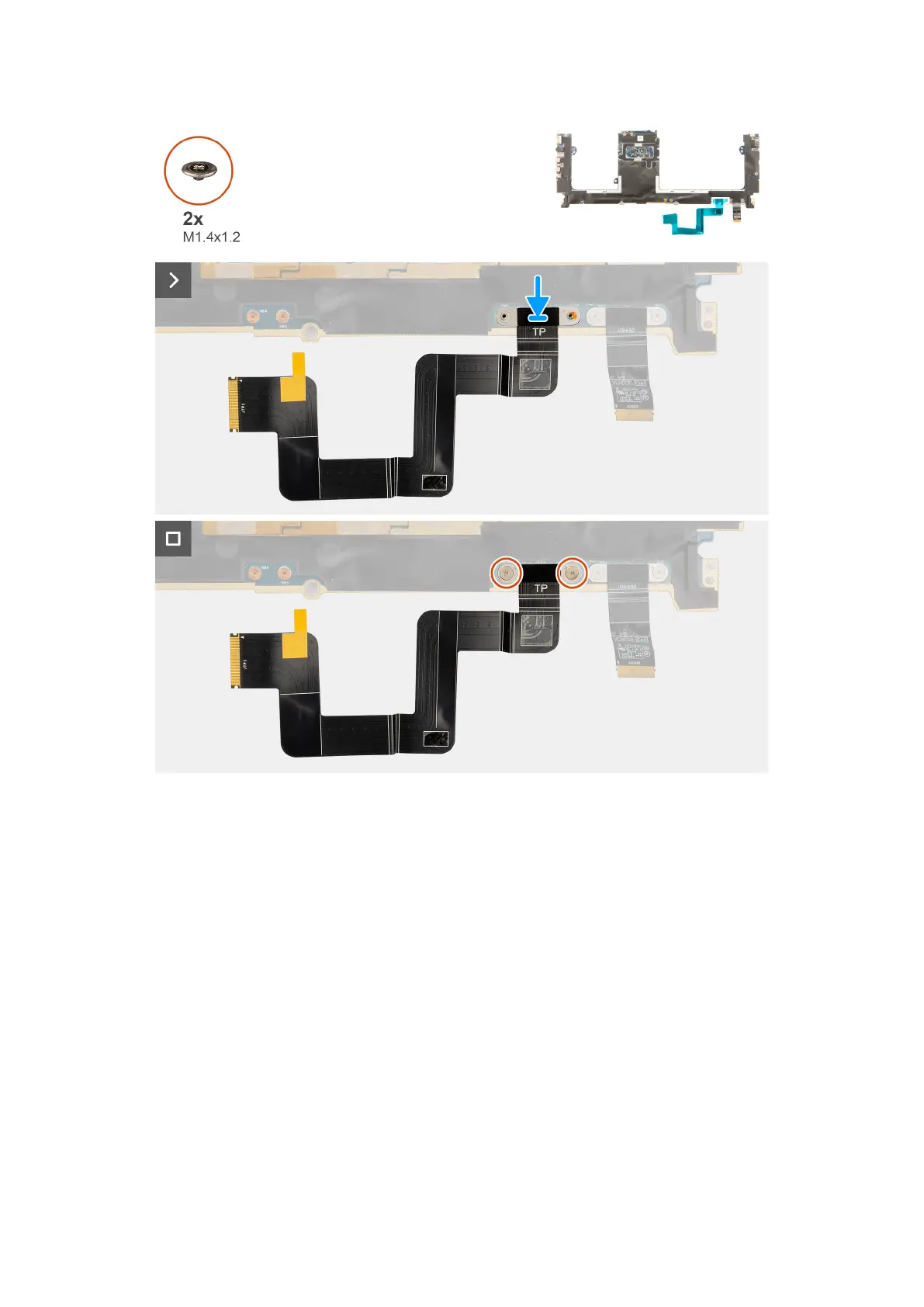

Figure 72. Installing the Haptics touchpad FPC
Steps
1. Align and place the Haptics touchpad FPC into its slot on the system board.
2. Replace the two screws (M1.4x1.2) that secure the Haptics touchpad FPC to the system board.
3. Connect the Haptics touchpad FPC to the connector on the system board.
Next steps
1. Install the system board.
2. Install the heat sink.
3. Install the graphics-card fan.
4. Install the processor fan.
5. Install the battery.
6. Install the M.2 2230 solid state drive or M.2 2280 solid state drive.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in After working inside your computer.
106
Removing and installing Field Replaceable Units (FRUs)
