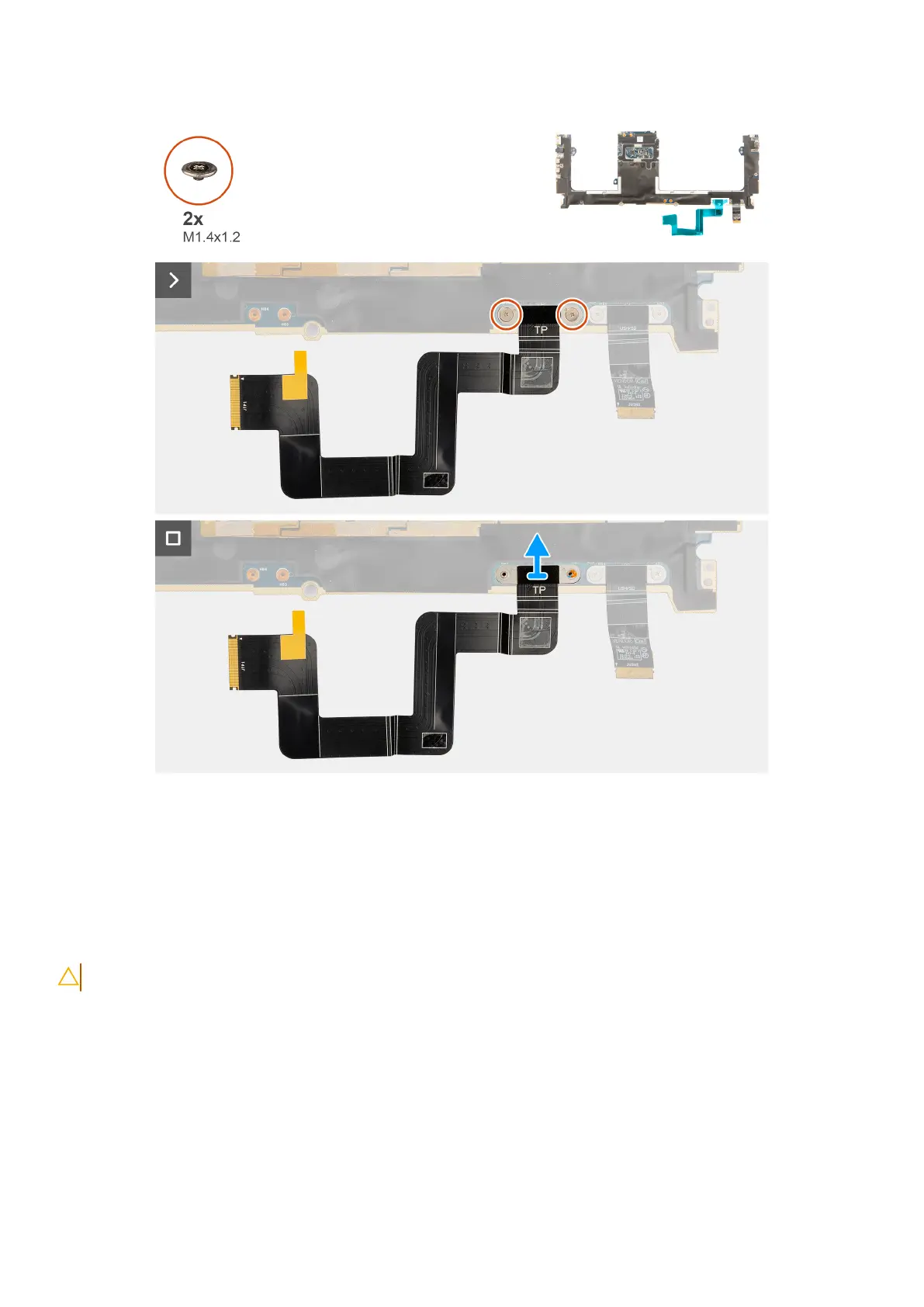

Figure 71. Removing the Haptics touchpad FPC
Steps
1. Remove the two screws (M1.4x1.2) that secure the Haptics touchpad FPC to the system board.
2. Disconnect and remove the Haptics touchpad FPC from the system board.
Installing the Haptics touchpad FPC
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the Haptics touchpad FPC and provide a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
105
