Part Number: 9291458 11/17 23
Section 2 Installation
HOT FOOD WELL DROPIN UNITS
N8700-D, N8700-DESP, N8700N, N8700-R, N8800

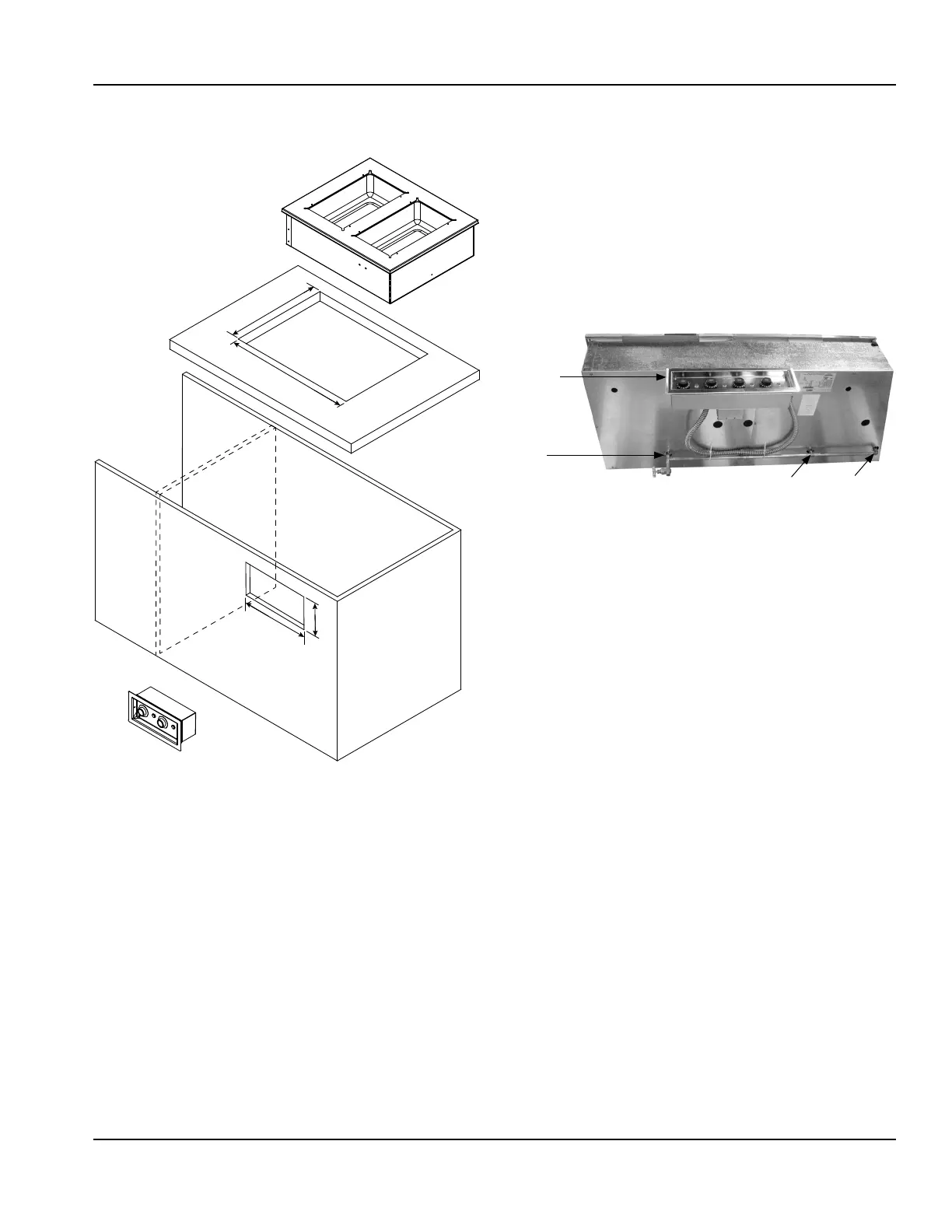

Counter Cutout Dimensions
Control Panel
Cutout Dimensions
Are Model Specic
Are Model Specic
1. Orient the control panel with the indicator light for
each control to the right of the control.
• N8700 series units have 48” (122cm) of conduit.
• N8800 Series units have 34” (86cm) of conduit.
2. N8700 control panel is designed to be installed on the
side opposite the drains.
• Installed on the same side as the drains, the control
panel will either be upside down or the knobs will
control the opposite wells.
Drains
Control
panel
installed
opposite
drains
Infinite control shown, directions also apply to digital control
3. Place the control panel into the cutout from inside the
cabinet. Place the collar into the cutout from outside
the cabinet. Secure with two screws.
4. Place the hot food well drop-in unit through the
counter cutout.
5. A gasket is installed in the flange of each unit.
The weight of the unit on the gasket forms a seal
preventing liquids from seeping into the cut-out
opening.
6. Plumb to a floor drain.
• All N8700 series are equipped with 1/2” (13mm)
female NPT drains, one per well located right rear
corner, manifold to 1/2” (13mm) gate valve.
• N8800 wells are sloped to a 1” (25mm) male NPT
stainless steel drain. Use a 1” female coupling.
