22 Part Number: 9291458 11/17
Installation Section 2

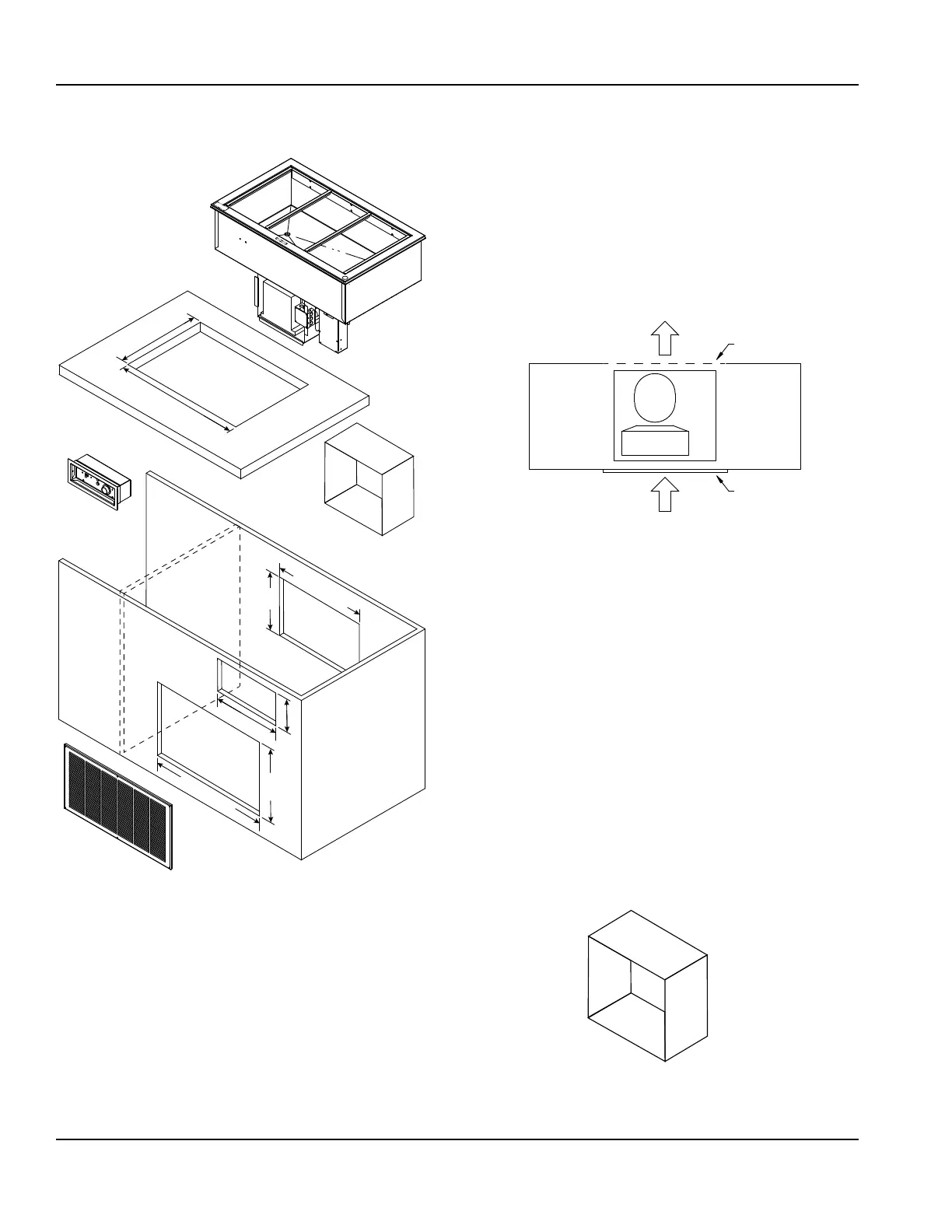

SELF-CONTAINED COMBO HOT/COLD DROP-IN UNITS
N8600
11.00”
(28cm)
Counter Cutout Dimensions
22.0” (56cm)
8.00”
(20cm)
11.00” (28cm)
Air duct dimensions
to match condenser face
Are Model Specic
Control Panel
Cutout Dimensions
Are Model Specic
1. Install partitions between self-contained refrigerated
drop-in units and other electrical appliances if they
are located in the same cabinet. Partitions must fully
extend front to back and top to bottom.
2. Install a GFCI receptacle a minimum of 14” (36cm) up
from the cabinet bottom inside the partitions.
3. The unit requires airflow to the compressor. One louver
is provided with each unit.
NOTE: Any restriction to the proper air flow will void the
compressor warranty.
• A 13” x 25” (33 cm x 64 cm) louver is provided by
Delfield and must be installed in the counter in front
of the condenser. The louver cutout dimension is 22”
x 11” (56 cm x 28 cm).
• The rear must have an opening for removal of
heated air. The opening must be at least 11” x 8”, a
total of 88 square inches (28cm x 20cm, a total of
566 square centimeters).
Discharge Air
Fresh Air
Cutout
Louver
Condenser
4. Orient the control panel with the indicator light for
each control to the right of the control. N8600 series
units have 40” (102cm) of conduit.
5. Place the control panel into the cutout from inside the
cabinet. Place the collar into the cutout from outside
the cabinet. Secure with two screws.
6. Place the condensing unit through the counter cutout.
7. A gasket is installed in the flange of each unit.
The weight of the unit on the gasket forms a seal
preventing liquids from seeping into the cut-out
opening.
8. N8600 wells are sloped to a 1” (25mm) male NPT
stainless steel drain. Plumb to a floor drain. Use a 1”
female coupling.
9. Construct an air duct (not provided) connecting
the condenser face to the louver. This will prevent
recirculation of discharge air.
11.00”
(28cm)
Counter Cutout Dimensions
22.0” (56cm)
8.00”
(20cm)
11.00” (28cm)
Air duct dimensions
to match condenser face
Are Model Specic
