Using 2-Conductor Wire or Low-Voltage Lighting Wire

1. Unwind the 2-conductor wire spool towards the amplifier

from the furthest speaker, leaving the wire attached to

the spool at the amplifier end. Do not connect the wires

to the amplifier at this time.

2. Starting at the speaker furthest from the amplifier, strip

3/4" of insulation on the cut end of the burial wires

for the appropriate amp channel according to the

tables below, then strip insulation from the ends of the

corresponding speaker’s pigtail (see Figure 6).

3. Connect the burial cable to the speaker pigtail using a

wire tie (see Figure 6).

4. Twist to combine all the positive (+) wires together and

combine all the negative (-) wires together according to the

tables below.

5. Twist the provided silicone-filled wire nuts onto the

combined positive wires and onto the combined

negative wires, ensuring that no copper is exposed.

Wrap each wire nut connection in electrical tape to

protect it from moisture.

6. Leave 14-16" of excess wire at the speaker so that the

wire doesn’t kink or pull taut during burial, then move

to the next speaker of the same channel (left or right)

along the cable.

7. At the next speaker, use a round cable stripper or utility

knife to remove 8" of the outside wire jacket, exposing

the two insulated wires.

8. Cut the two wires for the left or right speaker (see the tables below)

and strip 3/4" of insulation on the exposed ends of the burial wires, then strip 3/4" insulation from the ends of the

corresponding speaker’s pigtail (see Figure 7).

9. Create a loop of approximately 10", and use a wire tie to hold the wire loop and speaker pigtail in place to provide

strain relief (see Figure 7).

10. Repeat steps 4-6 for each remaining satellite speaker along the cable. For subwoofer installation, see section 7

“Installing the Subwoofer” on the next page.

11. Repeat steps 1-10 for the other amp channel.

Polarity Burial Wire Line 1 Speaker Pigtail

+ Positive Red

- Negative Black

Left Amp Channel

Polarity Burial Wire Line 2 Speaker Pigtail

+ Positive Red

- Negative Black

Right Amp Channel

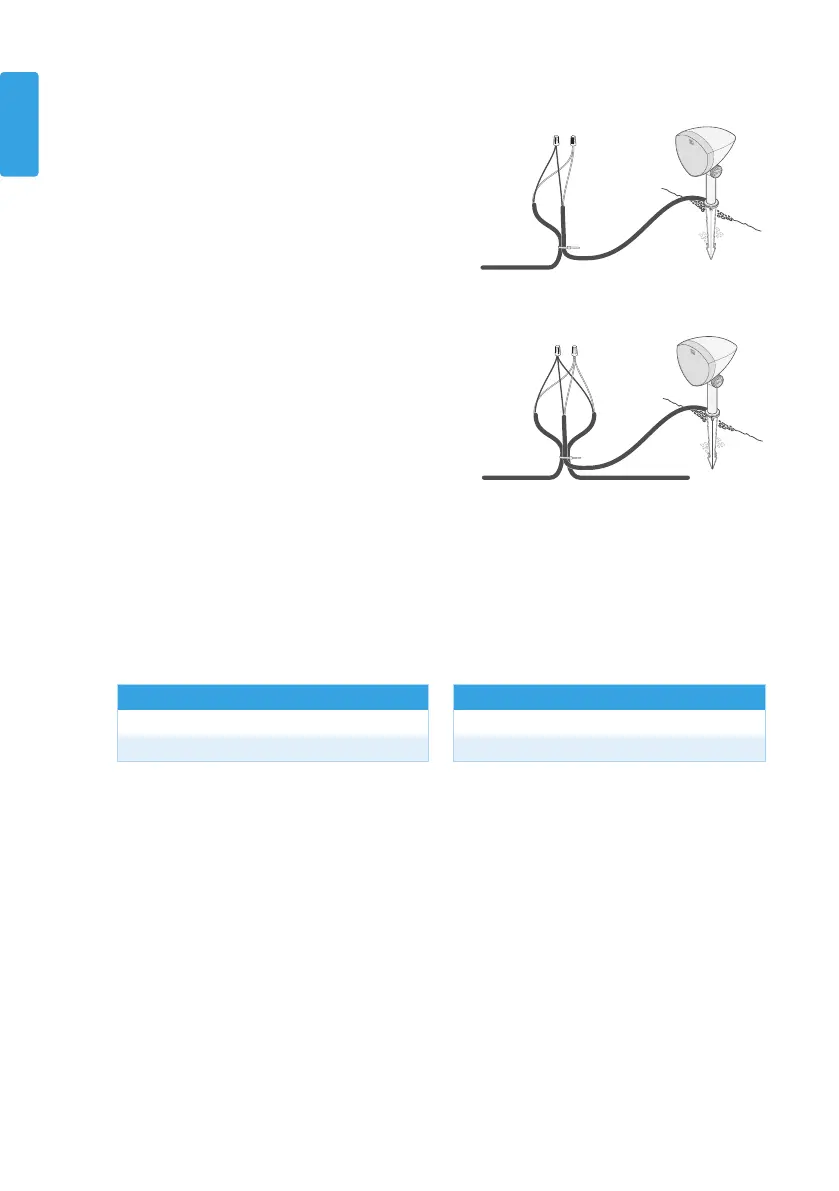

Figure 7

FROM AMPLIFIER TO NEXT SPEAKER

Figure 6

FROM AMPLIFIER
