INSTALLATION INSTRUCTIONS
IMPORTANT
Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC);
mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through
the neutral conductor. For installations where grounding through the neutral conductor is prohibited,
see the Ungrounded Neutral graphic. Use grounding terminal or lead to ground unit. Connect neutral
terminal or lead to branch circuit neutral in usual manner.

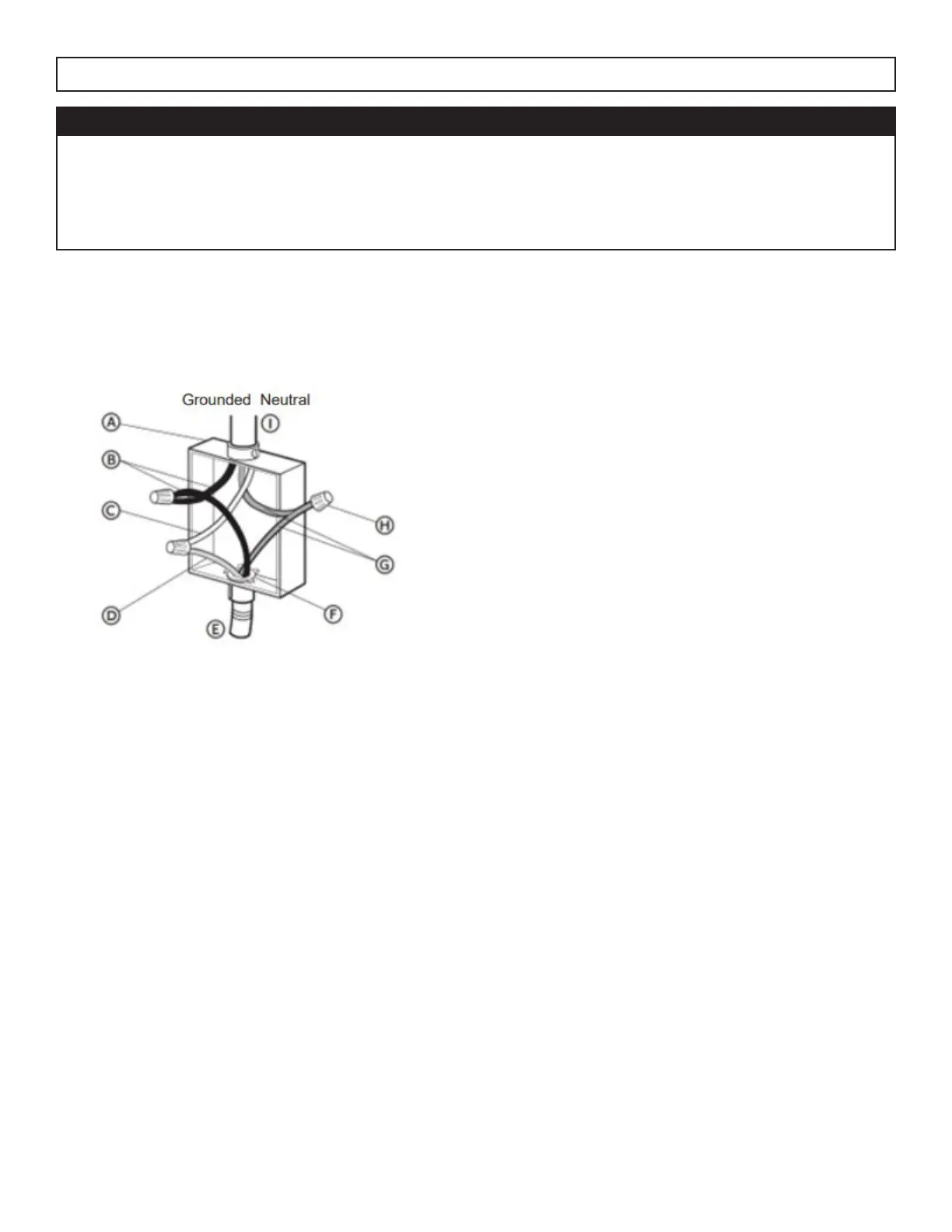

3-WIRE POWER CABLE CONNECTION TO HOUSE ELECTRICAL SUPPLY
NOTE: Use the 3-wire cable from home power supply where local codes permit a 3-wire connection.
1. Disconnect power.
A: Junction Box
B: Black Wires
C: Neutral (white) Wire
D: Ground (green or bare) Wire
E: Cable from range
F: UL Listed Conduit Connector
G: Red Wires
H: UL Listed Wire Connectors
I: House Electrical Supply
2. Connect the 2 black wires together using a UL listed wire connector.
3. Connect the neutral (white) wire and the ground (green or bare) wire (of the range cable) using a UL
listed wire connector.
4. Connect the 2 red wires together using a UL listed wire connector.
5. Install junction box cover.
