INSTALLATION INSTRUCTIONS
IMPORTANT
Only for models sold in the United States. This model does not include a pre-installed power cord. Use
the following wiring instructions before using the range. The power cord is not provided. Follow all
local and national wiring codes and standards.
3-WIRE POWER CABLE INSTALLATION
WARNING: Use this method only if local codes permit connecting chassis ground conductor to neutral wire
of power supply cord.
1. Feed the electric cable wires through the flexible metal conduit.
NOTE: Allow enough slack to easily attach the wires to the terminal block.
2. Remove the access panel located on the bottom righ-hand side of the back panel to uncover the
electrical terminal block.
3. Install a UL listed strain relief to the flexible metal conduit opening in the support bracket and fully
tighten the strain relief nut.
4. Feed the flexible metal conduit through the strain relief
NOTE: Allow enough slack to easily attach the wiring to the terminal block.

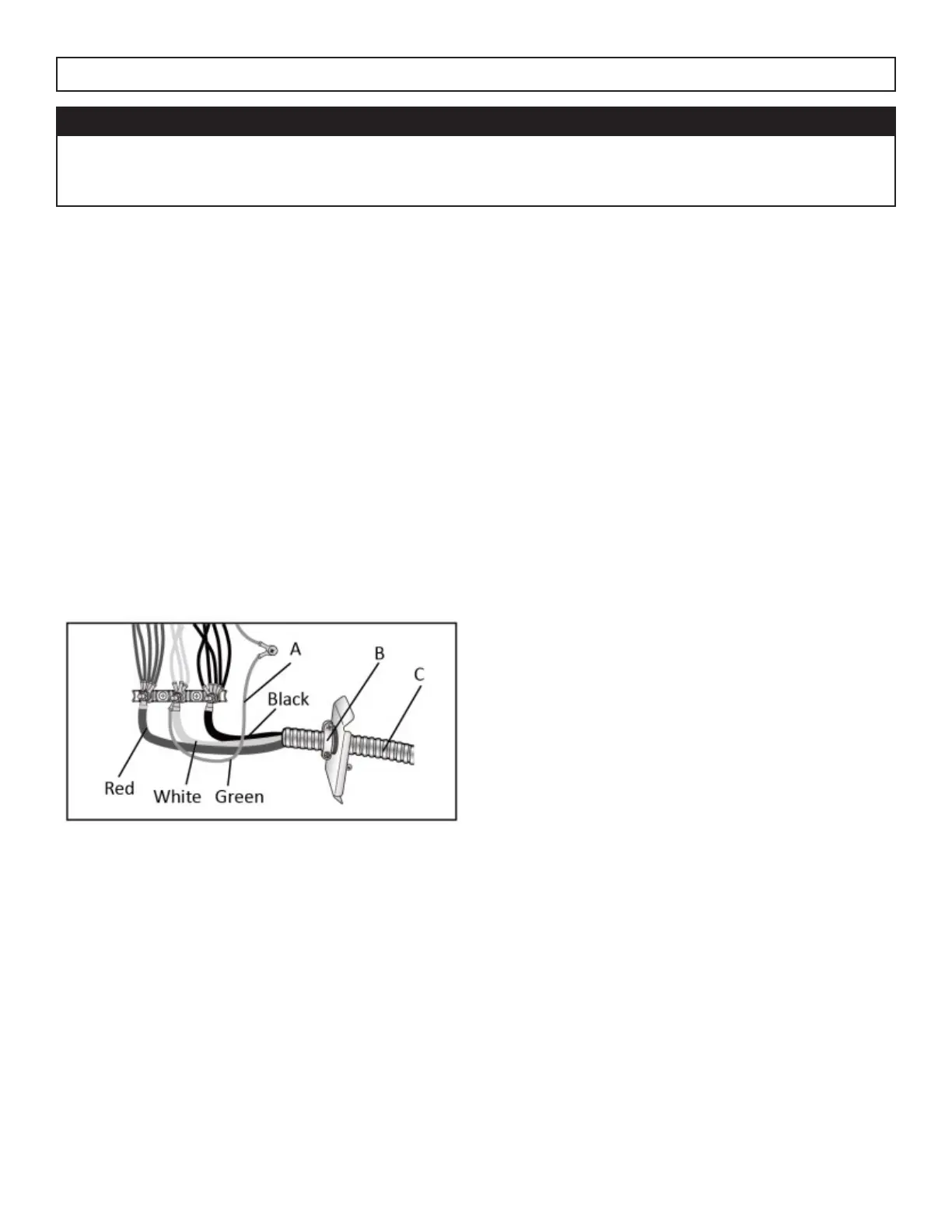

A: Jumper Wire (not provided)
B: UL Listed Strain Relief
C: Conduit
5. Using a 5/16” nut driver and one of the 10-32 hex nuts, connect the ground (green or bare) wire from
the flexible metal conduit to the center terminal block post along with the green jumper wire from the
range.
6. Using 10-32 hex nuts, connect the red and black wires from the power cord to the outer posts of the
terminal block with the corresponding red and black wires from the range.
7. Tighten the hex nuts completely and then verify the connection.
8. Position the lower part of the strain relief under the flexible metal conduit and tighten the strain relief
screws.
NOTE: Before tightening, make sure the strain relief is positioned over the flexible metal conduit and NOT
the wires.
9. Replace the electrical access panel.
10. Tuck excess conduit into the recessed are of the back panel.
