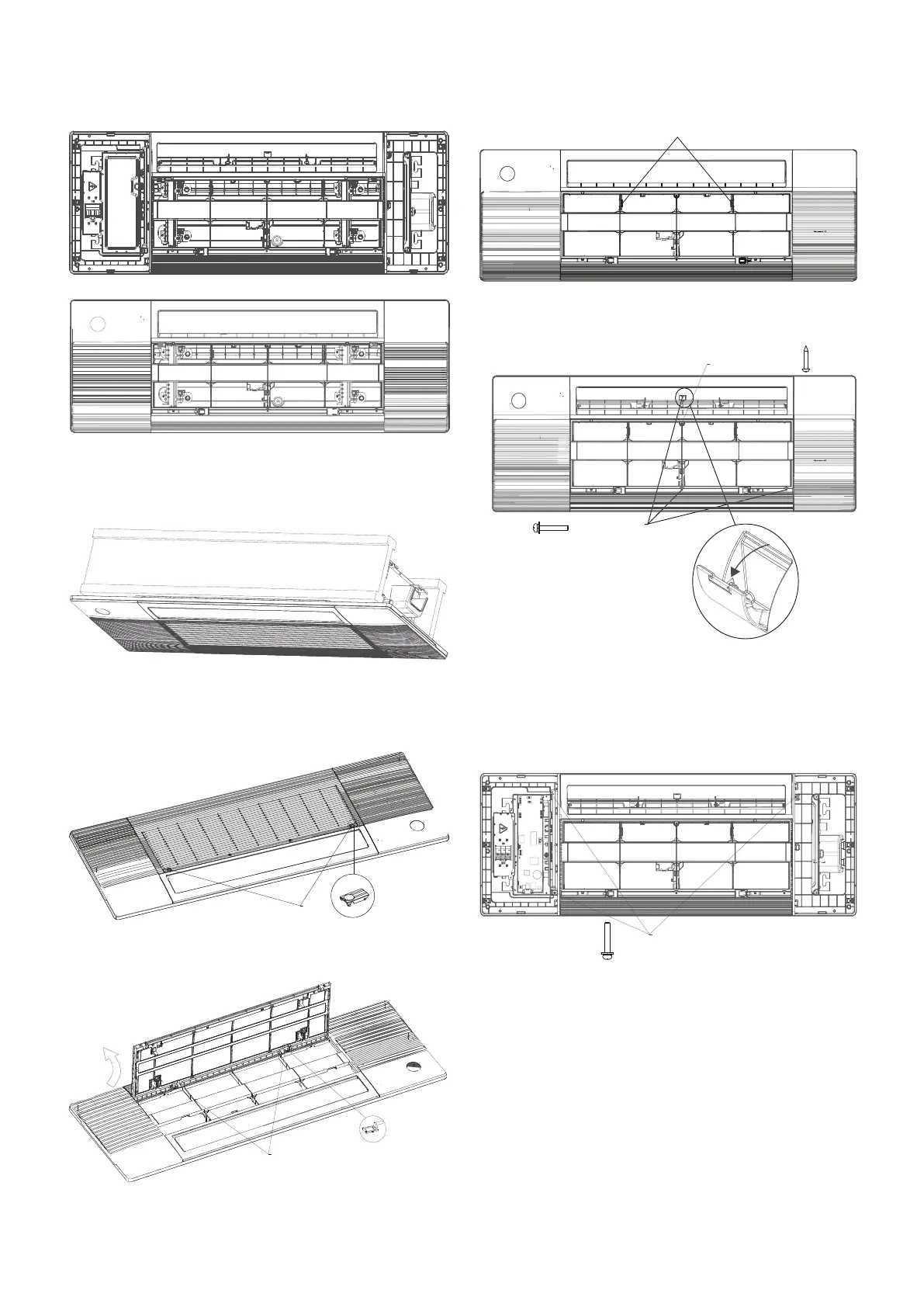

• Open the two covers on both sides of the panel,
fix the panel to the cassette by using3× M4*22
screws.
• Install the control box cover and turn the
circuit breaker to ON, then close the two
plastic covers on both sides of the panel.
• Pull the panel grille out of the panel, fix the
cassette panel to the one-way cassett by two
plastic buckles.
• Manually rotate the air deflector, fix the
panel to the cassette by using 3×M4*22
screws and a ST3.9*16 screw.
• During the test-run process, the display wil
be lighted and the air griller will rise automat-
ically.
Model B
•Press the circular positon to open the two
screw covers, then remove the two screws.
• Hold and open the air grille, then push both
of the latch to the middle to unlock the air
grille.
Screw Covers
M4*22 screw
NOTICE
Eight M4*22 screws are
supplied, two of which are
spare. Two ST3.9*16 screws
are supplied, one of which is spare.
M4*22 screw
ST3.9*16 screw
palstic buckle
Latch
Before fixing this screw, you need to open the screw cover;
and after fixing screw, please close the cover.
Page 44
