9 | Charging refrigerant
Installer reference guide
61
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08

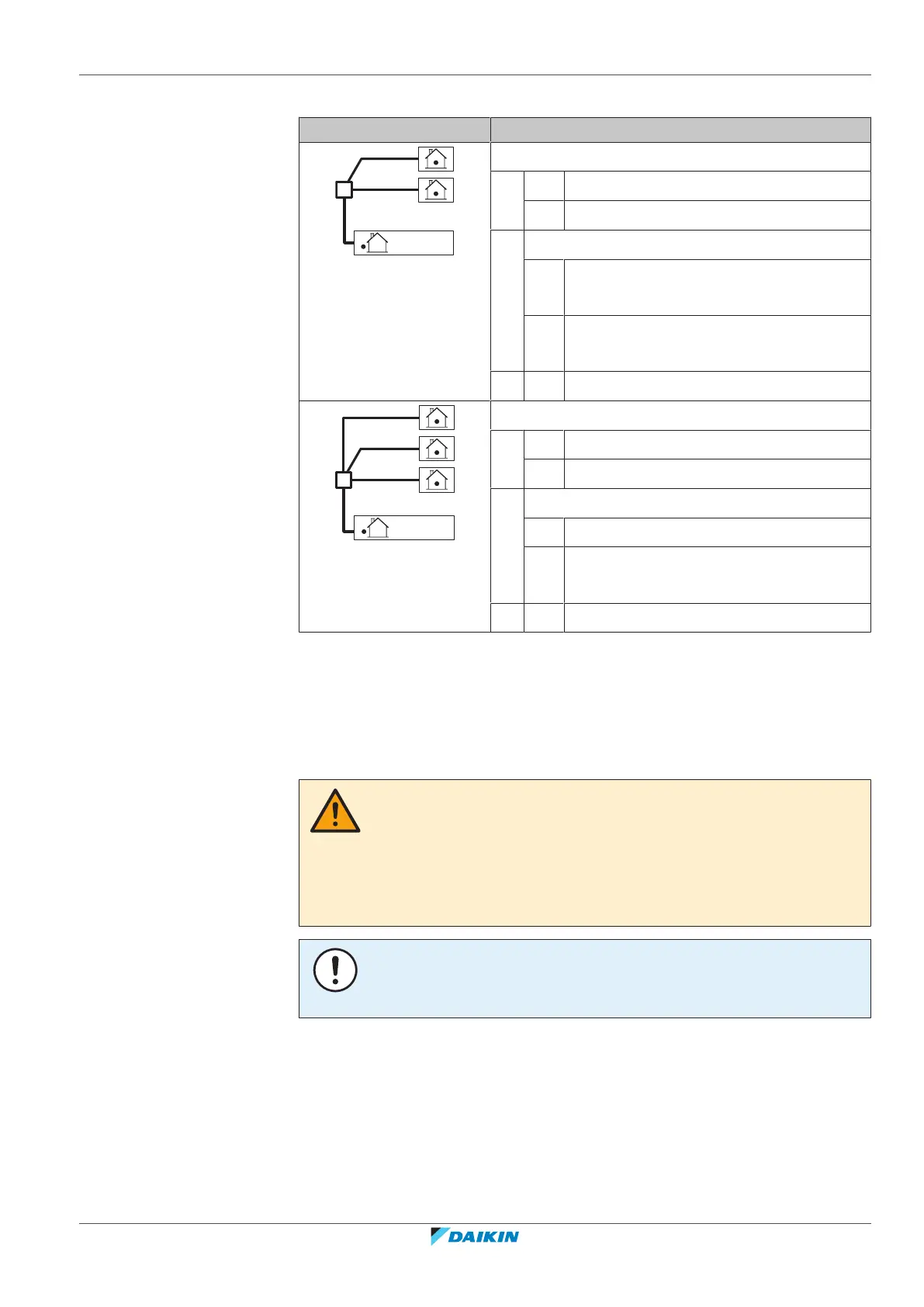

Examples
Layout Additional refrigerant amount (R)
L2=7 m
(Ø6.4 mm)
L3=5 m
(Ø6.4 mm)
L1=35 m (Ø9.5 mm)
RZASG100
Case: Twin, standard liquid pipe size
1 G1 Total Ø9.5 => G1=35m
G2 Total Ø6.4 => G2=7+5=12m
2 Case: G1>30m
R1 Length=G1−30m=5m
=> R1=0.35kg
R2 Length=G2=12m
=> R2=0.4kg
3 R R=R1+R2=0.35+0.4=0.75kg
L2=15 m
(Ø6.4 mm)
L3=12 m
(Ø6.4 mm)
L4=17 m
(Ø6.4 mm)
L1=5 m (Ø9.5 mm)
RZASG125
Case: Triple, standard liquid pipe size
1 G1 Total Ø9.5 => G1=5m
G2 Total Ø6.4 => G2=15+12+17=44m
2 Case: G1≤30m (and G1+G2>30m)
R1 R1=0.0kg
R2 Length=G1+G2−30m = 5+44−30=19m
=> R2=0.4kg
3 R R=R1+R2=0.0+0.4=0.4kg
9.5.2 Charging refrigerant: Setup
See "7.3.3Checking refrigerant piping: Setup"[447].
9.5.3 To charge additional refrigerant
WARNING
▪ Only use R32 as refrigerant. Other substances may cause explosions and
accidents.
▪ R32 contains fluorinated greenhouse gases. Its global warming potential (GWP)
value is 675. Do NOT vent these gases into the atmosphere.
▪ When charging refrigerant, ALWAYS use protective gloves and safety glasses.
NOTICE
To avoid compressor breakdown, do NOT charge more than the specified amount of
refrigerant.
Prerequisite: Before charging refrigerant, make sure the refrigerant piping is
connected and checked (leak test and vacuum drying).
1 Connect the refrigerant cylinder to both the service port of the gas stop valve
and the service port of the liquid stop valve.
2 Charge the additional refrigerant amount.
3 Open the stop valves.
