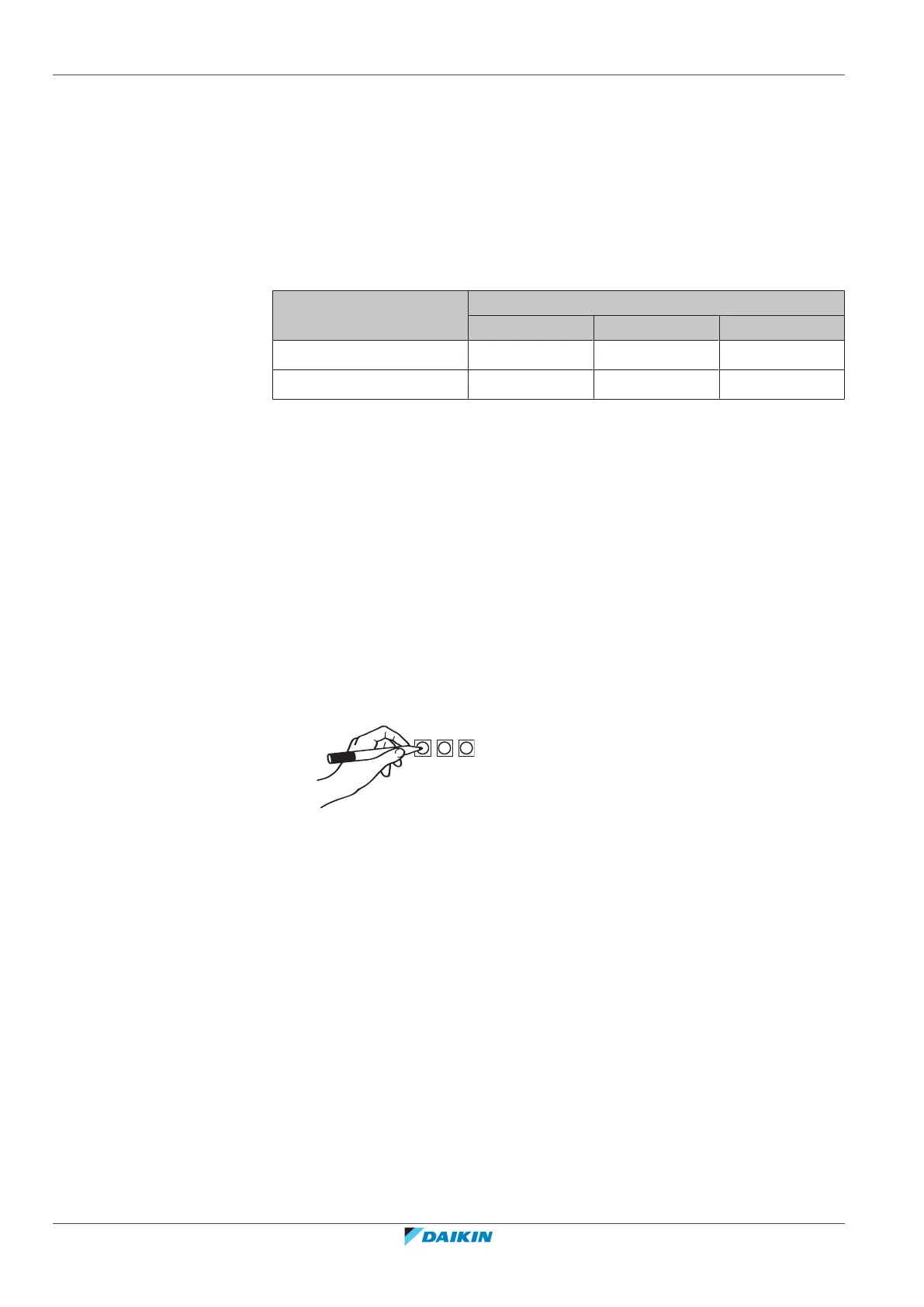

9 | Charging refrigerant
Installer reference guide
62
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08
If pump down is needed in case of dismantling or relocating the system, see
"15.3To pump down"[476] for more details.
9.6 Completely recharging refrigerant
9.6.1 To determine the complete recharge amount
To determine the complete recharge amount (kg)
Model Length
(a)
5~30m 30~40m 40~50m
RZASG100-125 2.6kg 2.95kg 3.3kg
RZASG140 2.9kg 3.25kg 3.6kg
(a)
Length=L1 (pair); L1+L2 (twin, triple); L1+L2+L4 (double twin)
9.6.2 To activate/deactivate the vacuum mode field setting
Description
To perform vacuum drying or a complete recharge of the outdoor unit’s internal
refrigerant piping it is necessary to activate the vacuum mode which will open
required valves in the refrigerant circuit so the vacuuming process or recharge of
refrigerant can be done properly.
To activate vacuum mode:
Activating the vacuum mode is done by operating the push buttons BS* on the PCB
(A1P) and reading the feedback from the 7‑segment displays.
Operate the switches and push buttons with an insulated stick (such as a closed
ball-point pen) to avoid touching of live parts.
1 When the unit is powered on and not running, hold down the BS1 pushbutton
for 5 seconds.
Result: You will reach the setting mode, the 7 segment display will show
'200'.
2 Press the BS2 button until you reach page 2–28.
3 When 2–28 is reached, press the BS3 button once.
4 Change the setting to '1' by pressing the BS2 button once.
5 Push the BS3 button once.
6 When the display is not blinking anymore, press the BS3 button again to
activate vacuum mode.
To deactivate vacuum mode:
After charging or vacuuming the unit, please deactivate the vacuum mode by
changing the setting back to '0'.
Make sure to reattach the electronic component box cover and to install the front
cover after the job is finished.
