7 | Piping installation
Installer reference guide
43
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08

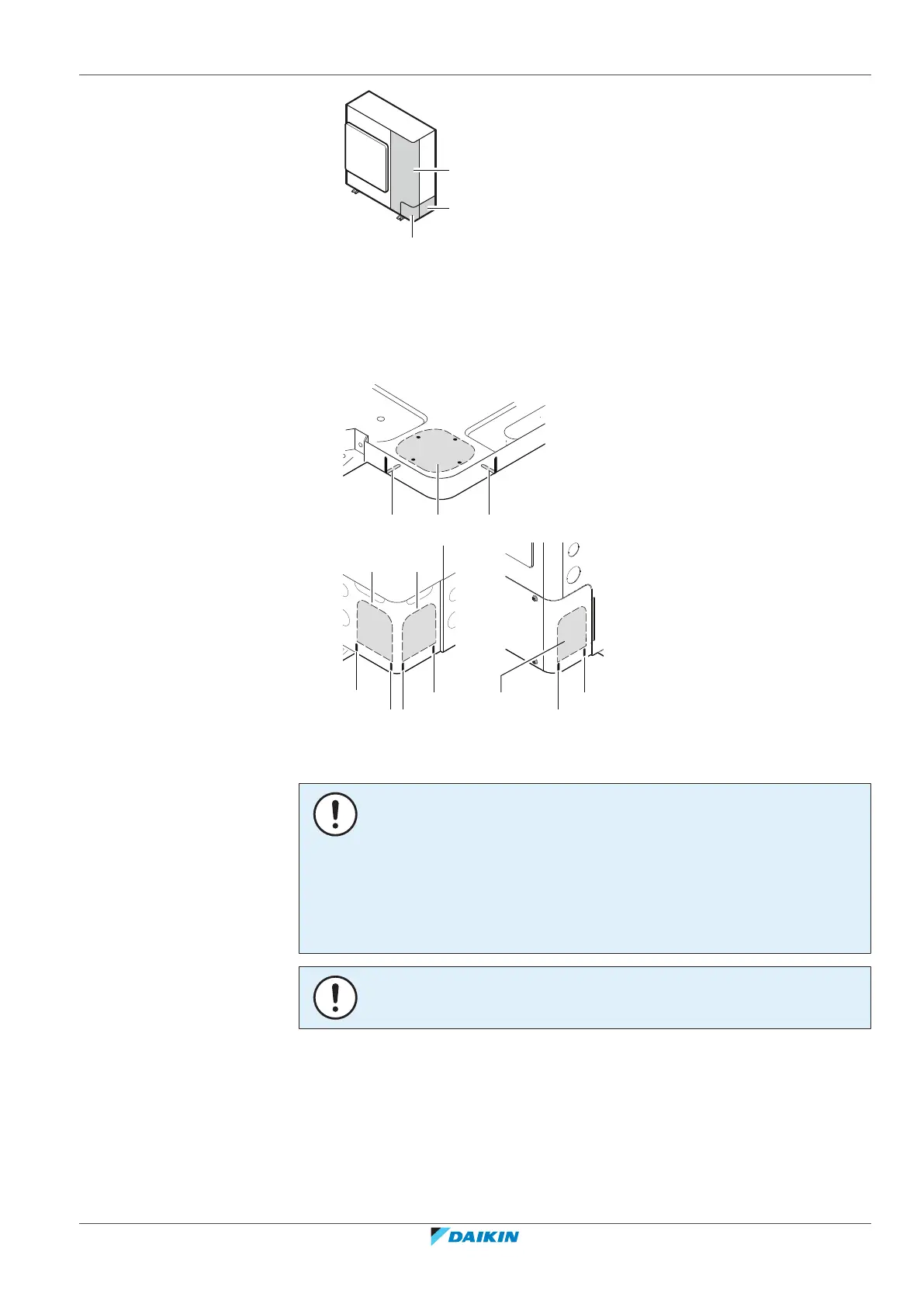

a
c
b
a Service cover
b Piping intake front plate
c Piping intake rear plate
2 Remove the knockout hole(a) in the bottom plate or in the piping intake plate
by tapping on the attachment points with a small flat screwdriver and a
hammer. Optionally, cut out the slits (b) with a metal saw.
b a b
b
b
b
b
a a
b
b
a
a Knockout hole for piping
b Slit
NOTICE
Precautions when making knockout holes:
▪ Avoid damaging the casing and underlying piping.
▪ After making the knockout holes, we recommend to remove the burrs and paint
the edges and areas around the edges using repair paint to prevent rusting.
▪ When passing electrical wiring through the knockout holes, wrap the wiring with
protective tape to prevent damage.
NOTICE
Avoid bending the bottom plate when removing the knockout hole.
3 Connect the gas and liquid piping.
▪ Connect the liquid piping (a) to the liquid stop valve (A).
▪ Connect the gas piping (b) to the gas stop valve (B).
