7 | Piping installation
Installer reference guide
42
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08
4 Install the stop valve cover.
Result: The valve is now open/closed.

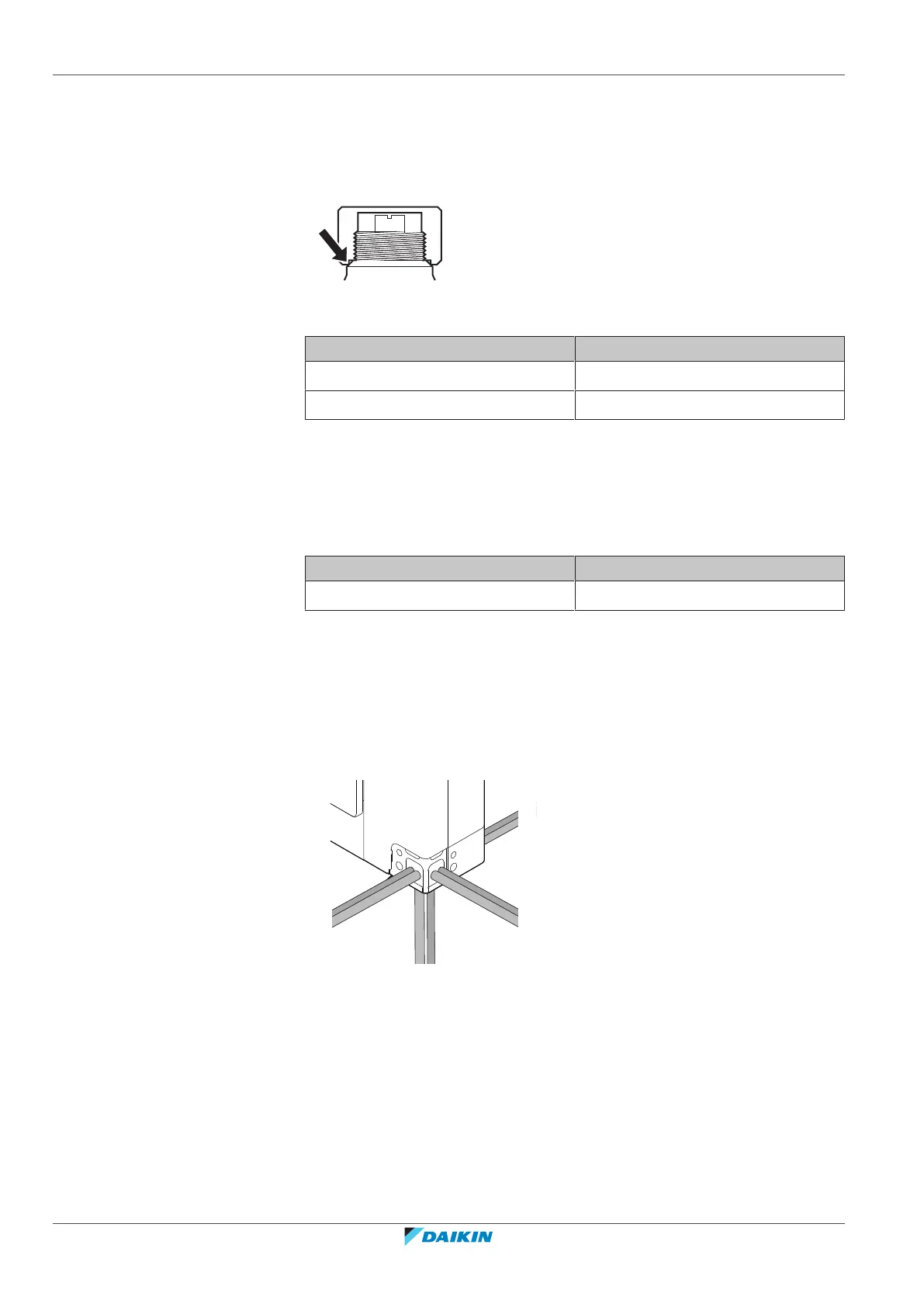

To handle the stem cap
▪ The stem cap is sealed where indicated with the arrow. Do NOT damage it.
▪ After handling the stop valve, tighten the stem cap, and check for refrigerant
leaks.
Item Tightening torque (N∙m)
Stem cap, liquid side 13.5~16.5
Stem cap, gas side 22.5~27.5
To handle the service cap
▪ ALWAYS use a charge hose equipped with a valve depressor pin, since the service
port is a Schrader type valve.
▪ After handling the service port, tighten the service port cap, and check for
refrigerant leaks.
Item Tightening torque (N∙m)
Service port cap 11.5~13.9
7.2.8 To connect the refrigerant piping to the outdoor unit
Keep the following in mind:
▪ Piping length. Keep field piping as short as possible.
▪ Piping protection. Protect the field piping against physical damage.
You can route the refrigerant piping to the front, bottom, side or rear of the unit.
a
b
c
d
a Front connection
b Bottom connection
c Side connection
d Rear connection
1 Remove the following plates:
For details, see "6.2.2To open the outdoor unit"[427].
▪ Remove the service cover (a) and the piping intake front plate (b).
▪ In case the refrigerant piping is routed to the rear side of the unit, also
remove the piping intake rear plate (c).
