7 | Piping installation
Installer reference guide
44
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08
A
B
b
a
A Stop valve (liquid)
B Stop valve (gas)
a Liquid piping
b Gas piping

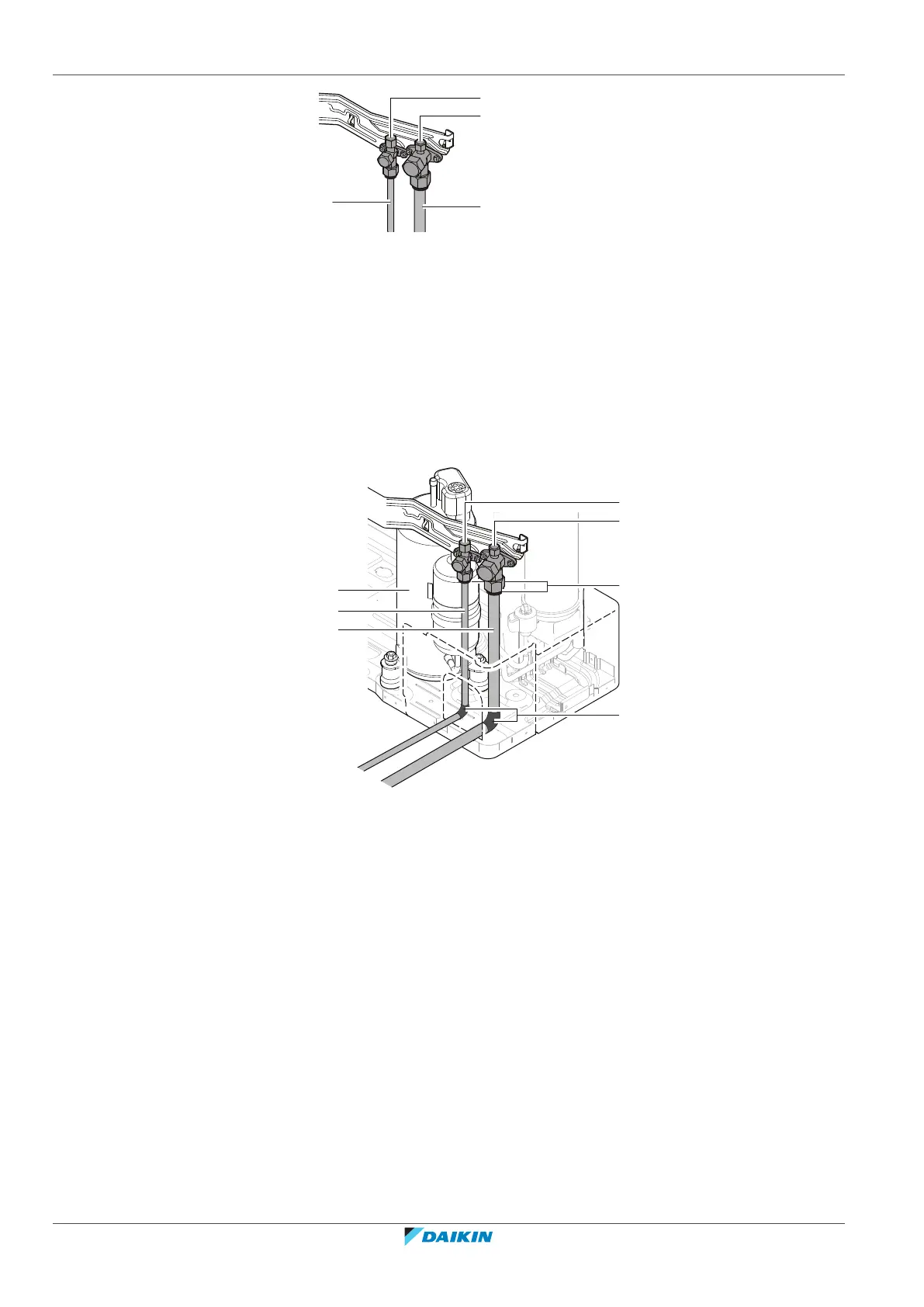

4 Insulate the refrigerant piping:
▪ Insulate the liquid piping (a) and the gas piping (b).
▪ Wind heat insulation around the curves, and then cover it with vinyl tape (e).
▪ Make sure the field piping does not touch any compressor components (d).
▪ Seal the insulation ends (sealant etc.) (c).
Example: Front connection
A
B
e
c
d
a
b
A Stop valve (liquid)
B Stop valve (gas)
a Liquid piping
b Gas piping
c Insulation ends
d Compressor
e Vinyl tape
