12 Technical data
Installer reference guide
31
RZAG71~140L7V1B
Split system air conditioners
4P418663-1 – 2016.02

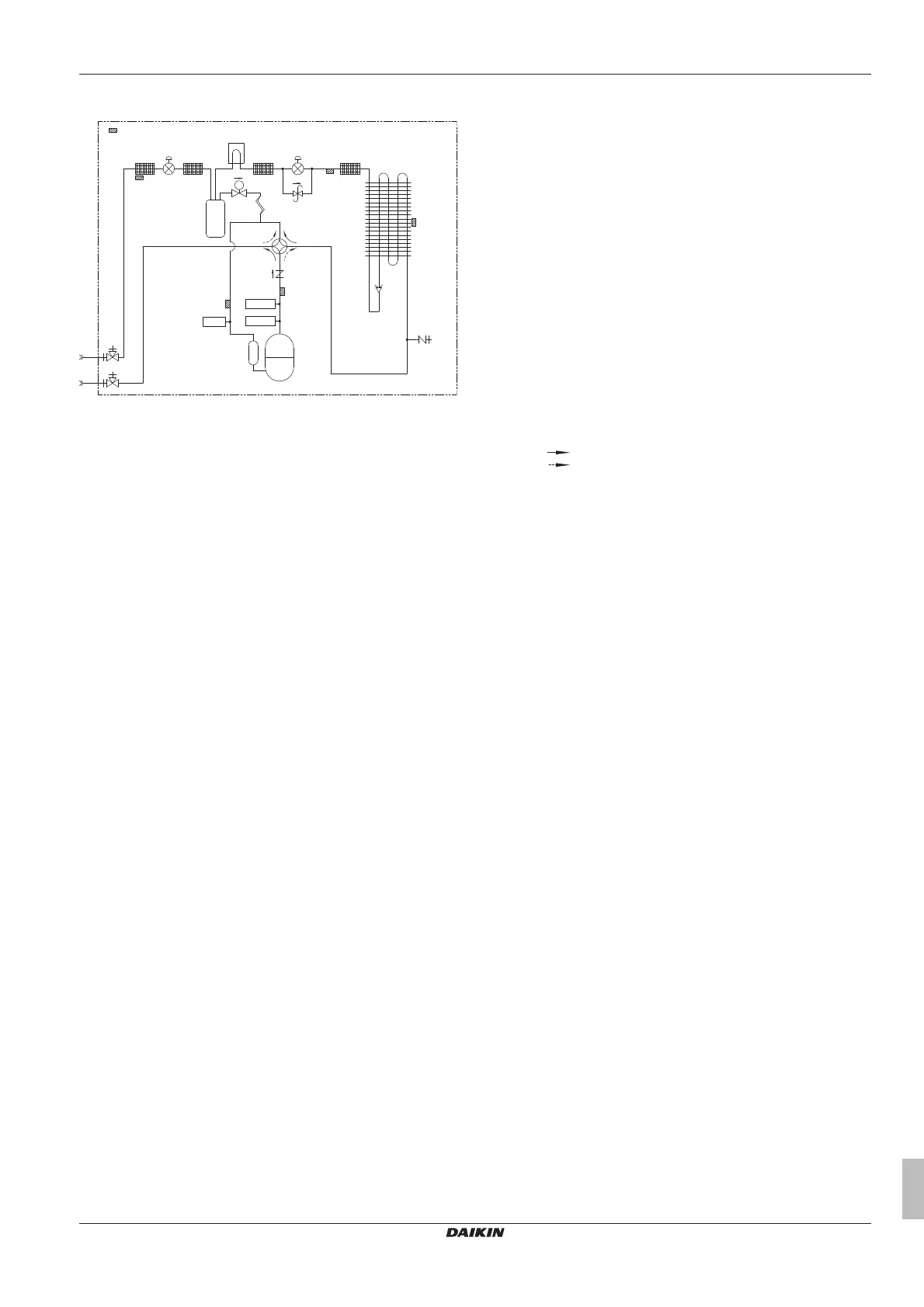

12.5 Piping diagram: Outdoor unit
S1PL
S1PH-M
S1PH-A
a
c
d d d
e
d
c
b
R2T
R6T
R1T
R4T
i
j
k
l
h
g
Y1E
Y1S
Y2S
M1C
R5T
R3T
f
Y3E
a Field piping (liquid: Ø9.5 flare connection)
b Field piping (gas: Ø15.9 flare connection)
c Stop valve (with service port 5/16")
d Filter (4×)
e Switch box cooling
f Pressure regulating valve
g Heat exchanger
h Internal service port 5/16"
i Check valve
j Compressor accumulator
k Liquid receiver
l Capillary tube
M1C Motor (compressor)
R1T Thermistor (air)
R2T Thermistor (discharge)
R3T Thermistor (suction)
R4T Thermistor (heat exchanger inlet)
R5T Thermistor (heat exchanger middle)
R6T Thermistor (liquid)
S1PH-A Automatic high pressure switch
S1PH-M Manual high pressure switch
S1PL Low pressure switch
Y1E Electronic expansion valve
Y3E Electronic expansion valve
Y1S Solenoid valve (4‑way valve)
Y2S Solenoid valve
Heating
Cooling
