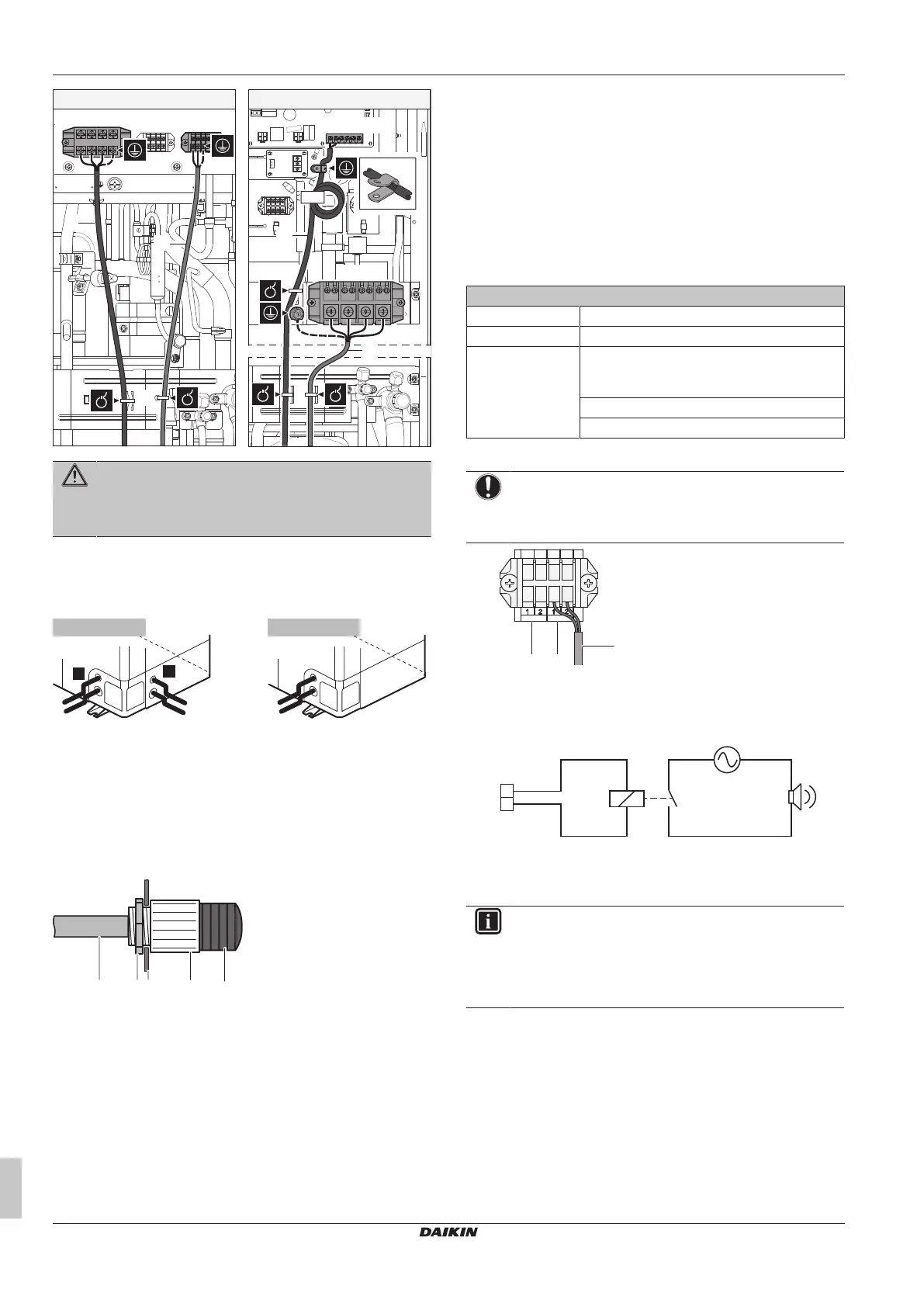

17 Electrical installation
Installation and operation manual
40
RXYSA8~12AMY1B
VRV 5-S system air conditioner
4P752781-1C – 2024.10
c
a
b
a
b
c
c
X1M
X1M
X3M
X1M (A1P)
8 HP 10+12 HP
WARNING
Do NOT strip the outer cable jacket lower than the fixation
point on the stop valve attachment plate.
5 Route the cables through the frame according to the illustration
below.
Note: for RXYSA8, choose one of the two possibilities to route the
cables through the frame:
a
b
a
b
2
1
a
b
8 HP
10+12 HP
6 Remove the selected knockout holes by tapping on the
attachment points with a flat head screwdriver and a hammer.
7 Install a cable protection in the knockout hole:
▪ It is recommended to install a PG type cable gland in the
knockout hole.
▪ When you do not use a cable gland, protect the cables with
vinyl tubes to prevent the edge of the knockout hole from
cutting the wires:
a b
A B
c d e
A Inside of the outdoor unit
B Outside of the outdoor unit
a Cable
b Bush
c Nut
d Frame
e Tube
8 Route the cables out of the unit.
9 Reattach the service cover. See "14.2.2 To close the outdoor
unit"[428].
10 Connect an earth leakage circuit breaker and fuse to the power
supply line as specified in "17.2 Specifications of standard
wiring components"[438].
17.5 To connect the external outputs
SVS and SVEO output
The SVS and SVEO outputs are contacts on terminal X2M.
The SVS output is a contact on terminal X2M that closes in case a
leak is detected, failure or disconnection of the R32 sensor (located
in the SV unit or indoor unit).
The SVEO output is a contact on terminal X2M that closes in case of
occurrence of general errors. See "8.1Error codes: Overview"[415]
and "22.1.1 Error codes: Overview" [4 48] for errors that will trigger
this output.
Outdoor output connection requirements
Voltage 220~240V
Maximum current 0.5A
Wire size Only use harmonised wiring providing double
insulation and suitable for the applicable
voltage.
2-core cable
Minimum cable section of 0.75mm²
NOTICE
Do NOT use the outputs as a power source. Instead, use
each output to energize a relay that controls the external
circuit.
WHT
SVEO SVS
BLK GRY PPL
ba
c
X2M
a SVEO output terminals (1 and 2)
b SVS output terminals (1 and 2)
c Cable to SVS output device (example)
Example:
X2M
(SVS)
a
1
2
c
b d
a SVS output terminal
b Relay
c AC power supply 220~240VAC
d External alarm
INFORMATION
Sound data about the refrigerant leakage alarm are
available in the technical data sheet of the user interface.
E.g. the BRC1H52* controller generates an alarm of 65dB
(sound pressure, measured at 1 m distance from the
alarm).
